Led Guide Display for Indoor Ultrasonic Parking Guidance System

FOB Reference Price:Get Latest Price
$20.00 - $300.00 / Pieces | 1 Piece/Pieces (Min. Order)
Height (mm):
140
Width (mm):
140
Parking lot:
1
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Ts-06
Warranty:
1 Years
Operational principle::
Ultrasonic
Communication port::
RS 485/TCP IP
Detection range::
0.5-4.5M
Working temperature::
-40℃ To +80℃
Language:
English/Spanish/Arabic/Portuguese or other
Supply Ability
Supply Ability:
101000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
CARTON
Port
Xiamen
Product Description

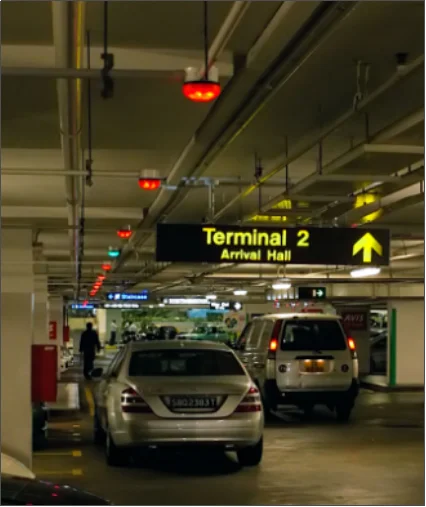

Indoor Ultrasonic Parking Guidance System is designed to help drivers easily search for a parking space quickly and efficiently,thus save time and fuel money for them.From the moment drivers enter parking lots,the system automatically performs the guidance of vehicle.This system tells drivers the directions to where to find available parking space.


Main Products

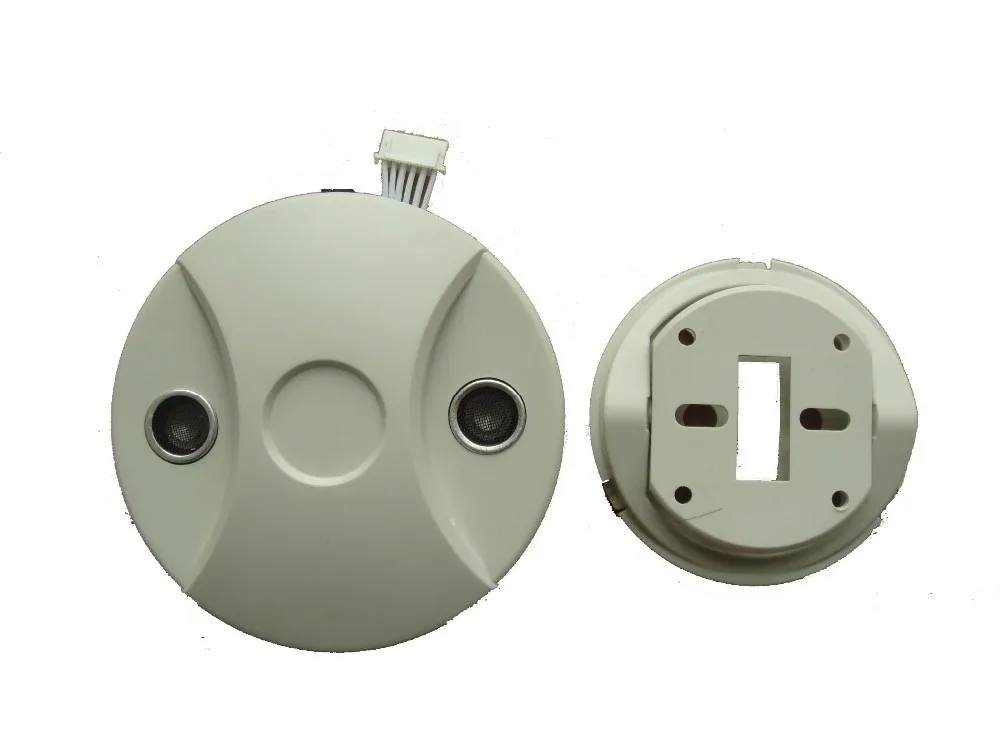

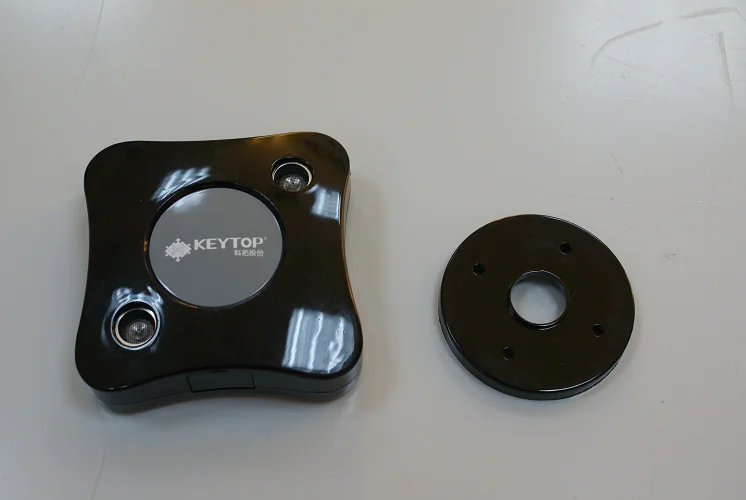

1.Ultrasonic Vehicle Detector--Detect Parking Status

Ultrasonic sensor is designed to detect the parking information of each parking lots  . Communication by RS485 ,  it can receive data and send commands  parking led indicators to  change its  colors accordingly.

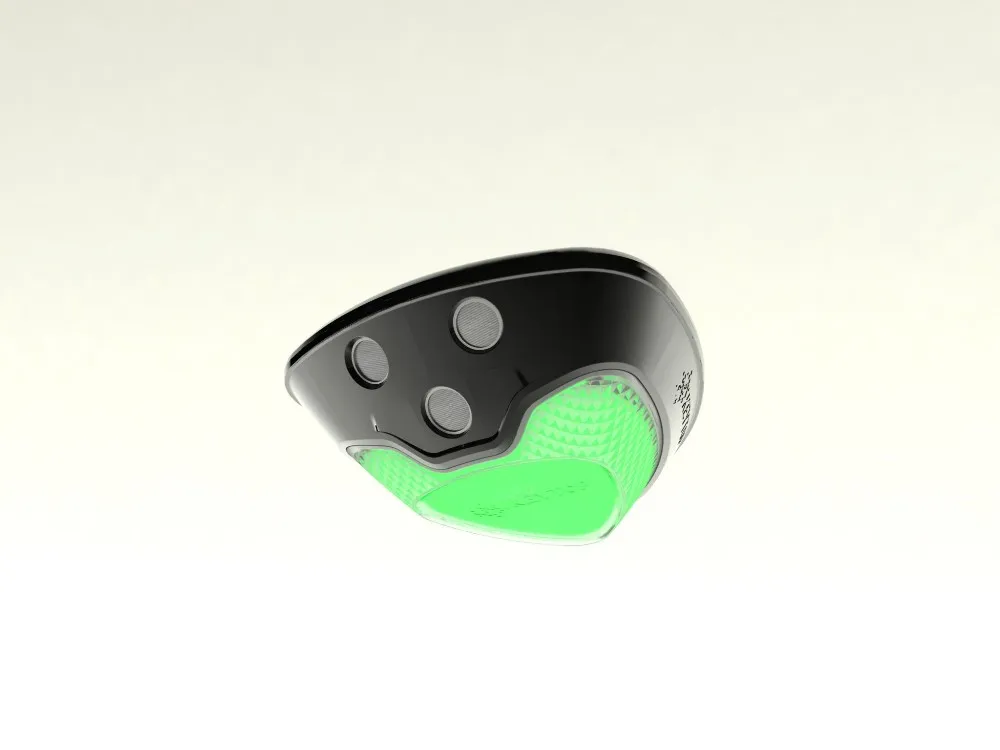

2.Parking Space Led Indicator--Show Parking Space Occupation Status

Parking Space indicator indicate the empty parking lots by tuning the red color to green .

3 colors supported , RED: Occupied ;  Green :  Vacant     BLUE: Handicapped or reservation

Also , RGB (Colorful) available if needs

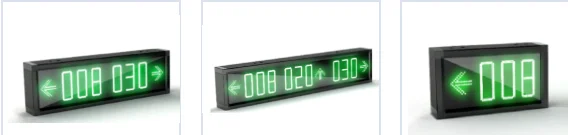

3.Indoor Led Display --Tell Drivers Parking Directions
Indoor direction screen displays the available parking spaces in each area , then drivers can decide in advance where to go for parking. The led screen receives real-time information about free parking spaces from zone controller .

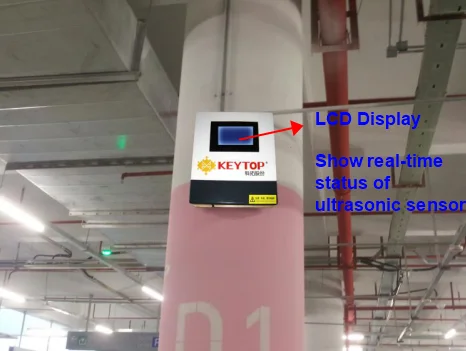

4.Zone Control Unit(ZCU)--Collect Parking Information Data , Process the Date and Send it to Central Controller

Generally one zcu can connect 60 sensor at max ,  while according to the detailed installation , suggest to connect 40-45 sensor cause of the distance and voltage drop .


5.Parking Management Software--Integrated in Central Control Unit

(1) Real-time monitoring of parking space status
(2) Store 2 years data ,Daily,monthly carpark usage statistics
(3) Multi-language support ( English, French, Portuguese , Spanish , Italian etc ).
(4) RS 485 and TCP/IP Communication based, can meet different size of car park .
(5) Web based parking management software, monitor/ manage your car park everywhere that connect to the internet.

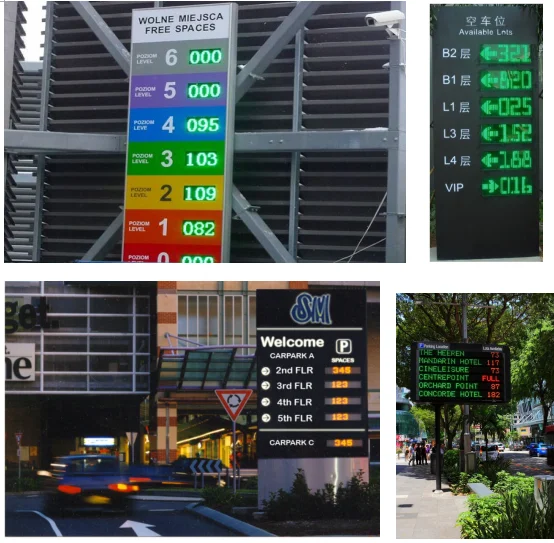

6.Entrance Parking Led Screen--External Parking Guidance

Indicated the lots available of each level to drivers , then drivers can decide to go the right level  for parking

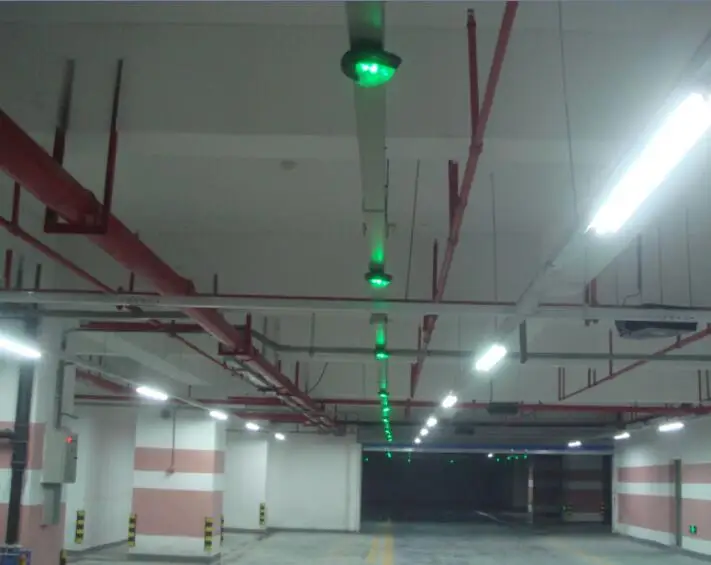

On-site Photo

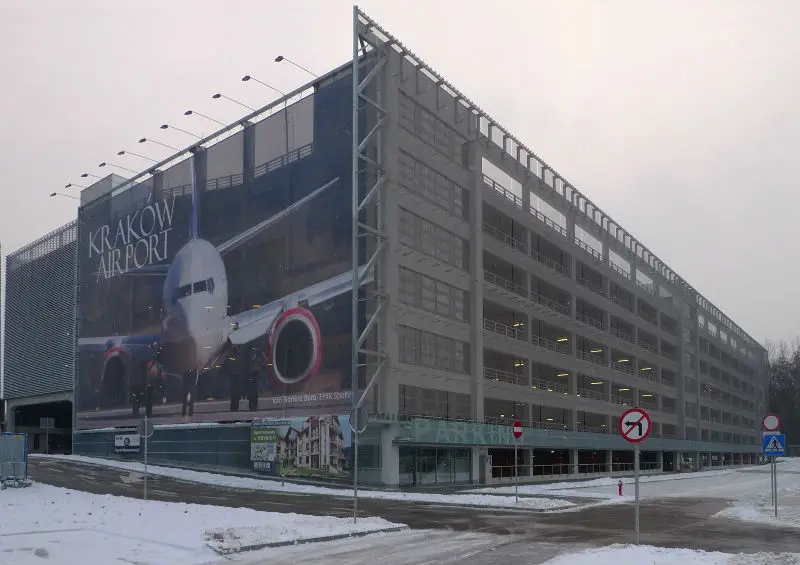

Poland Krakow Airport -1160 Parking Lots

Kuwait Mubarak Hospital ----1006 Parking Lots


Saudi Arabia King Fahad Medical City---2000 Parking Lots
