Guide Lighting Solutions - KEYTOP Parking Technologies

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Height (mm):
140
Width (mm):
140
Parking lot:
1
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Ts-06
Warranty:
1 Years
Operational principle::
Ultrasonic
Communication port::
RS 485/TCP IP
Detection range::
0.5-4.5M
Working temperature::
-40℃ To +80℃
Language:
English/Spanish/Arabic/Portuguese or other
Supply Ability
Supply Ability:
101000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
CARTON
Port
Xiamen
Working Flow

Guide Lighting Solutions - KEYTOP Parking Technologies

This solution is to help drivers find an empty parking space quickly, saving search time and gasoline, then enjoying the parking ; It is also a good way to higher utilization rate of parking space and minimize management costs for car-park owners.
Firstly, drivers can follow the instruction on the outdoor led display , make the right choice to the floor with lots available ;
Secondly , each floors has indoor LED guide screen display real-time lots available , then drivers can have parking info and choose a right way to area with empty parking lots ;

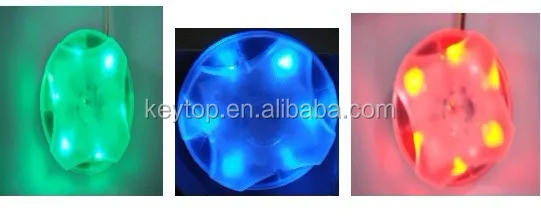

Finally , drivers enter the right area and distinguish the color of led indicator, Red is occupied ; Green is vacant;  BLUE is reservation .

Detailed Pictures

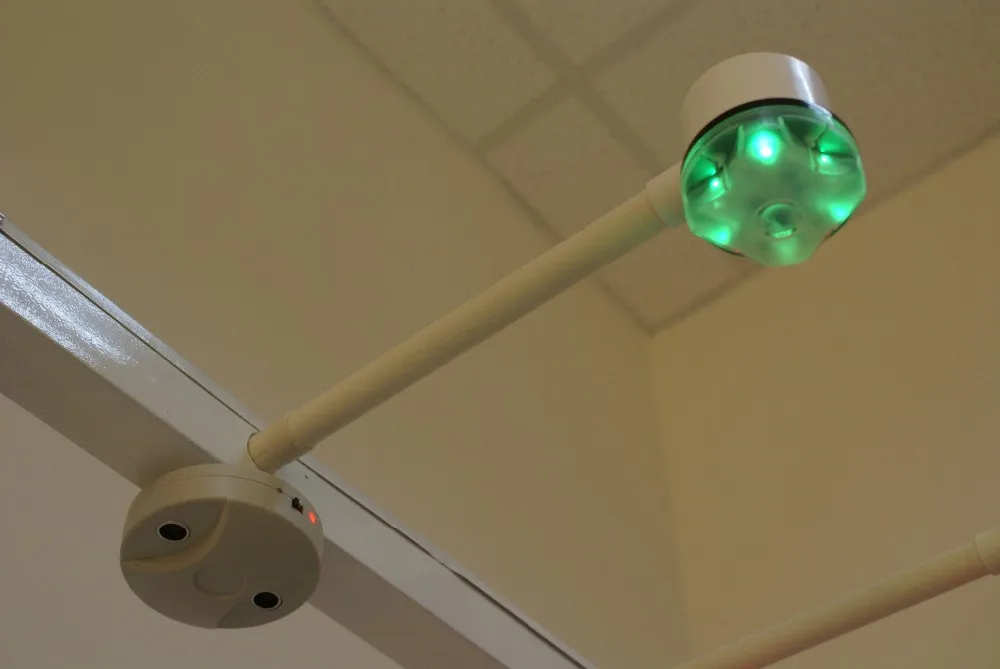

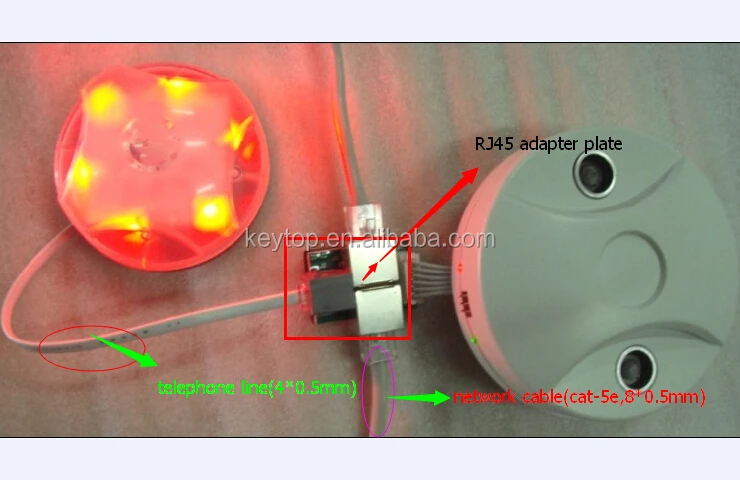

LED indicator is main hardware for PARKING GUIDANCE SYSTEM . Connected to the split ultrasonic sensor. Install at the front of every parking space to display the current parking space status.When the indicator displays green, it means the available parking space; when the indicator displays red, it signifies there is a car parking.

Parking LED Indicator
 Working Voltage
DC5V
Working Temp
-40℃~+80℃
 Working Current
<30MA
Visual Distance
>50m
Outer Casing Material
ABS
Visual Angle
360°Downward
Luminance
9000mcd(Green),5000mcd(Red)
On-site Photo
