Wireless Parking Bay Sensor Car Space Detector for Outdoor Smart Parking Guidance System

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-WT06.1
Warranty:
3 Years
Power Supply Voltage:
1.5V (battery)
Average Current:
60uA
Current at sleep mode:
8uA
Power Rate:
90uW
Working Life(Battery):
> 5 years
CommunicationWay:
470MHz,RF communication
Transmitting Distance:
30M
Working Temperature:
-40~75°C
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Package Carton
Shipped in 30 days after payment
Port
XIAMEN
Lead Time :
within 30 days

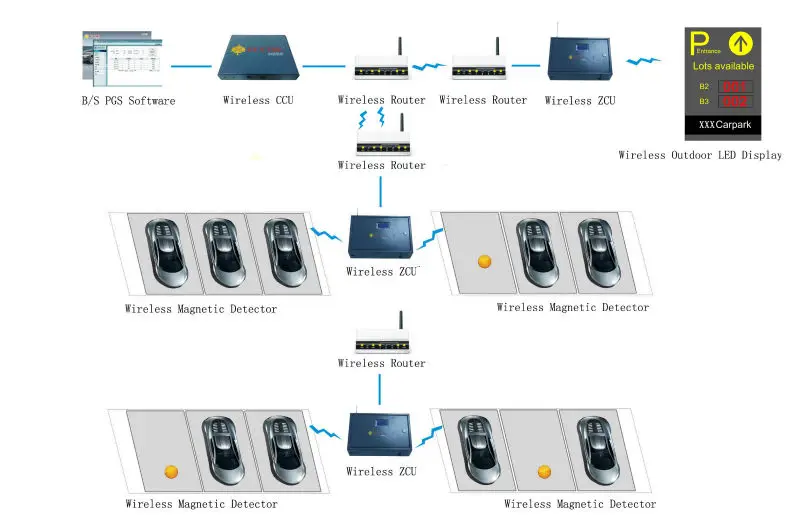

1.Operating Principle Outdoor Wireless Car Parking Guidance System


Installed wireless magnetic detector at every parking space to get parking information.The detector detects the geomagnetic field change every 3 seconds to judge the vehicle presence.If the parking status changes,it sends wireless signal to the wireless ZCU immediately,otherwise,the signal will only be transmitted every 5 minutes.Also,wireless solar indicator will be installed at every parking space.It will flash every one second.It will be in green when vacant and red when occupied.The wireless ZCU transmit the parking data to CCU after compressing base on the certain rules.Finally,this data will be transmitted to directional led display after the processing of CCU.Meanwhile,the parking data will be sent to the sever and stored in its database. The user can visit sever to learn
parking information including year/month/date statistic data. .

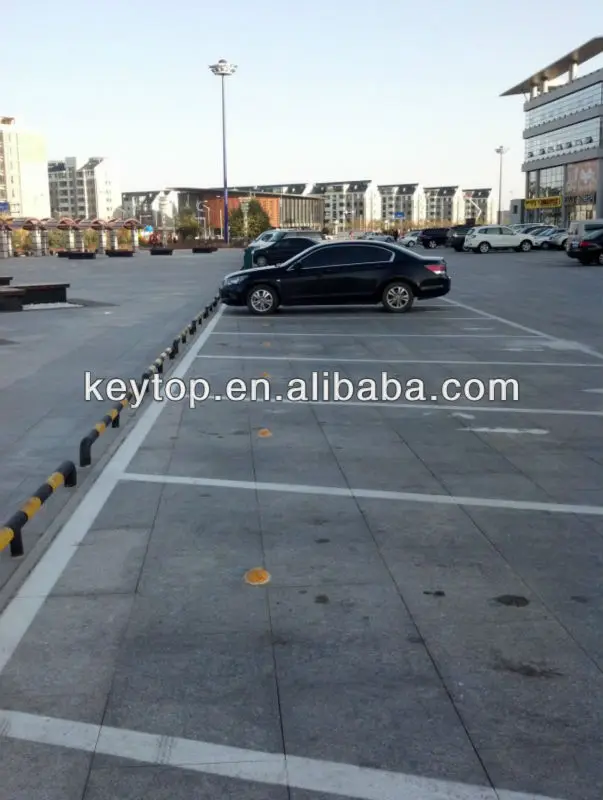

2.On-site pictures
