Parking Guidance System CE approved

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces Parking Guidance System (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking guidance system
Height (mm):
140
Width (mm):
140
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP PARKING GUIDANCE SYSTEM
Model Number:
KEY-TS07
Warranty:
3 Years
Communication Way::
RS485/TCP IP
Parking Space Detector Type::
Ultrasonic Sensor
LED Indicator luminance::
9000 mcd
LED Display: luminance::
500 --1000 cd/M2
Parking Guidance Controller::
Can operate without PC
Database::
Access/ SQL
System language:
Multi laguage support
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month Parking Guidance System
Packaging & Delivery
Packaging Details
Standard and export carton packing for Parking Guidance System
Port
XIAMEN
Lead Time :
Within 20 working days for Parking Guidance System

Specifications

Parking Guidance System
1.High accuracy rate
2.Low installation cost
3.OEM/ODM


                                                         Parking Guidance System



Company Information



KEYTOP is Asia biggest intelligent Parking Guidance System  manufacturer,Have installed more than 1000 car park in 40 counties  .

We optimize the use of parking space and design a system that most suitable for your facility. Quite simply, when it comes to Parking Guidance System   , we do it better, faster and more cost effectively.

We also accept OEM/ODEM order and package.



System Description

The system guides the driver from the roads around the facility, through the process of selecting which parking area to use, to the floor with available parking, then to the aisle with the available parking, and finally to the empty parking space.







System component

683 408 map-final 2.jpg

1.Individual Ultrasonic Parking Sensor and LED Indicator:

Mounted directly at the front of each  parking lot. Internal LEDs to indicate the state of the parking space, capable of turning from Green/Blue color to Red color when parking lot is occupied

By Using the Individual Ultrasonic Parking Senosr and LED Indicator, driver can be easily indicated to an available parking.





Green – Vacant     Red – Occupied      BlueReserved for disabled

QQ20140504154321 .jpg

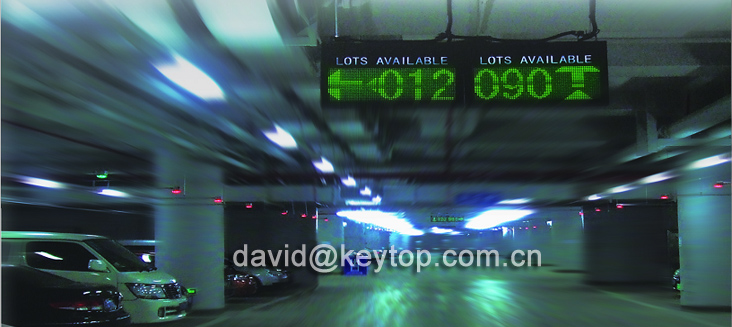

2.LED Indoor Guidance Display:

Inform the driver on every point of decision, the availability of parking spaces by displaying a green arrow and number of vacant parking spaces, 3- to 4- digits, red zero or red "FULL", in different sizes.

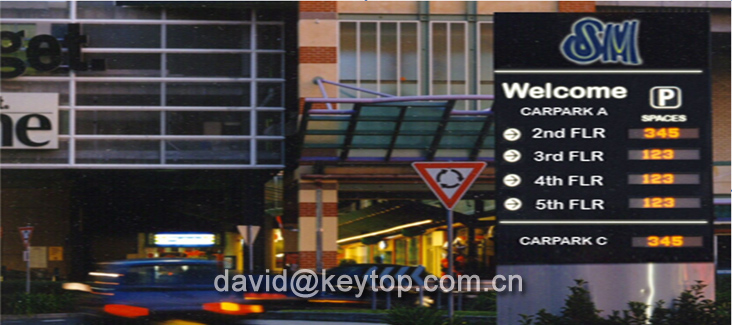

3.LED Outdoor Entrance Display:
Outdoor led display show real-time data at every decision point , Indicate to which level drivers should proceed, 3- to 4- digits, red zero or red "FULL", in different sizes.



4.Parking Management software:
From the visually chart , the car park operator can easily know the occupied time, Utilization rate , average permanence by zone/ hours etc .The Management software can be customized accordingly to customer’s requirement .



Main Advantage of KEYTOP Parking Guidance Solution

1. RS 485 and TCP/IP Communication based, can meet differnce size of car park .

2. Forward mounitng ultrasonic parking  sensor with built in Led indicator , reduce your installation cost by 50%

3. Web based parking management software, monitor/ manage your car park everywhere that connect to the internet.

4.  Multilanguage support ( English, French, Portuguese , Spanish , Italian etc ).

KEYTOP High-Quality Parking Guidance System   have garnered praise from around the world



KEYTOP Typical Case around the world


China Central Televetion


Poland Krakow Airport




Singapore Changi Airport



Thailand Mega Bangna






Other typical projects

4200 Parking SpaceTurkeyVialand
3160 Parking Space   Philippines          Mall of Asia
2100 Parking Space     Taipei                       Taipei municipal CarPark
2000 Parking Space     Saudi Arabia        King Fahad Medical City
2000 Parking Space     Japan               Shonan Car Park
1800 Parking Space      Shenzhen                 Headquarter of Wal-mart
1976 Parking Space     Indonesia            Pacific Place
1006 Parking Space     Kuwait              Mubarak Hospita
Our Services

Technical Support:  Have professional technical support team offering 24/7 services, help design a Parking Guidance System accordingly to the car park layout, preparing materials for tender, offering tech support during installation and after installation.

Guaranty:3 Years guaranty after installed

OEM/ODM Services: Can silk print your logo on all hadware ,ODM is welcome as well .

Payments: T/T ,western union

Lead time : Within 20 working days

Contact us today for a chat and see what we could do for you.
