Quick Details

  • Type: vehicle tracking system (VTS)
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Model Number: KT-S04-1b
  • Warranty: 1 Years
  • Product Name: IP camera
  • Resolution: 1280*960(include indicator)
  • Working Voltage: 12V
  • Working Current: 0.2A
  • Power Rate: 2.4W
  • Operating System: Linux,400MHz
  • Respond Time: 5S
  • LED Beads: 6pcs(red/green)

Packaging & Delivery

Packaging Details standard export cartons
Delivery Time within 20 days



Parking lots detector for car location system

*********************************************************************************

Vehicle tracking system (including parking guidance , car finding  and CCTV security) Help drivers find their cars quickly by kiosk.



Working Structure





Main hardware & its function

  • video detecor
  • POE switch
  • indoor & outdoor led display
  • network switch
  • kiosk
  • server
  • NVR (network video recorder)



1. video detector

One IP Camera detects one parking lot to take photos at the real time,also gets parking status and recognizes license plate No and other vehicle information.It combines led indicators,when it is occupied,it will be in red; empty , it will be in green.

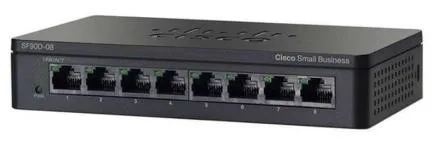

2. POE switch

Help transfer the data from IP camera to server and provide power to camera.





3. indoor & outdoor display



indoor led: Get parking datas from the server and show available lots information to the drivers at the real time.Customized display shapes or contents are both ok;

outdoor led: It receives the statistic information of the parking space from the server, displaying available lots in real time and can be used 24 hours a day.





4. network switch



Connects IP camera also kiosk to server,transmits updated bays quantity to led display





5. kiosk



The koisk will be installed at the main entrances for car owners to find the best way to pick car by inputting plate no. or time.





6.server









7. NVR

save the image data of the parking space info captured by the digital video detector, and realizing the security function.





Steps to Find Your Car







Actual Cases













Any simliar parking projects, pls don't hesitate to contact me.

Or chat with me on the whatsapp/ wechat:  +86 150 9993 8407
