Quick Details

  • Type: Parking Management System
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Warranty: 1 Years
  • Product Name: ANPR Camera
  • Input Voltage: DC 12V±10%
  • Operation System: LINUX
  • Communication Protocol: TCP/IP,ONVIF
  • Picture Resolution: 2 million,1920*1080
  • Detection Trigger Way: Video/Vehicle Detector Trigger
  • Output Data: Car plate no.,plate color,plate photo
  • IP Grade: IP54
  • Lens Specification: 2.8~12mm
  • Working Temperature: -35℃~+70℃

Packaging & Delivery

Packaging Details standard export carton
Delivery Time within 20 working days against payment received
System Overview

What is KEYTOP Ticketless Parking Management System?

Our goal is to offer a system that can optimize your carpark,increse your parking revenues while make your customer satisfied with every visit.The system started with KEYTOP patented ANPR cameras,which are installed at both the entry and exit lane of car park.ANPR camera captures vehicle that entering and leaving the car park,send license plate No. to server for parking management.Automatically the system will Allow/Deny the vehicle entering/leaving the car park by parking barrier.The whole process not need drivers take any extra action like get RFID card or ticket,which will make the traffic flow faster than ever.

System Advantages

Fast in and out the car park,not need to take ticket or card.
Calculate parking fees on the basis of car plate number recognition,strictly avoid the charge flaw.
ANPR camera with heating-fogging module,ensure 99% reading accuracy.
Provide logs and record every action operated by charge staff.When system breaks down,can record data happened during malfunction period.
Save costs to prepare ticket and cards.
Provide information of car park flows and usage rate.
Car park manager can monitor car in/out and charging status,also can manage the alarm of parking devices breakdown.

Comparison
Ticketless Parking Management System
Traditional Parking Management System
Enter Way
ticketless,non-stop,video recognition
take ticket or card
Enter Speed
15 vehicles/minute
5 vehicles/minute
Payment Way
system automatically calculate parking fees,provide multiple payment ways such as mobile APP,autopay terminal,etc.
calculate parking fees by staff,long waiting at parking booth during peak hour
Exit Speed
10 vehicles/minute
3 vehicles/minute
Staff Monitor
effective control on staff to avoid lose of parking fees
difficult to manage
Labour Costs
reduce labor costs
hire staff to check ticket and card

Video Streaming Recognition Advantage

Analyze all car plate photos and select the optimum car plate as recognized result.
The following car plate is easy to be covered by the front car in rush time.choose the plate photo before being covered from video flow to get the best plate No.
In complicated environment like night or rainy day,choose the best photo for recognition by analysis video streaming multiple frame.
Avoid failed recognition because of high-light exposure of plate photo.
Avoid failed recognition because of too big or too small plate photo.

Double Line Standby Advantage

Double line standby means when the main camera has problem of recognition,communication and control,the auxiliary camera will take over its work to make sure the system can work well all the time.

System Benefits

For Car Park Customers

More secure
No stop,fast pass
No ticket lost trouble
Fast mobile payment
More safe at rainy days
More comfortable parking

For Car Park Operator

Fewer staff,less cost
Comprehensive reports
Quick financial statistics
High customer satisfaction
No missing charge,more income
Complete monitoring,easier management

System Diagram
Working Flow

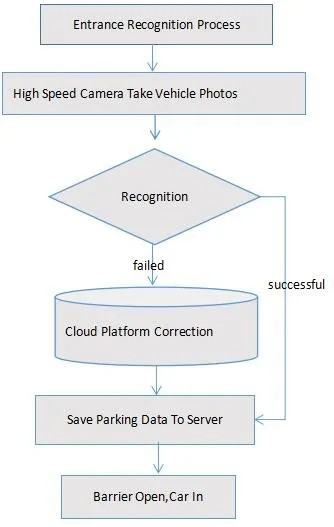

Enter the Car Park

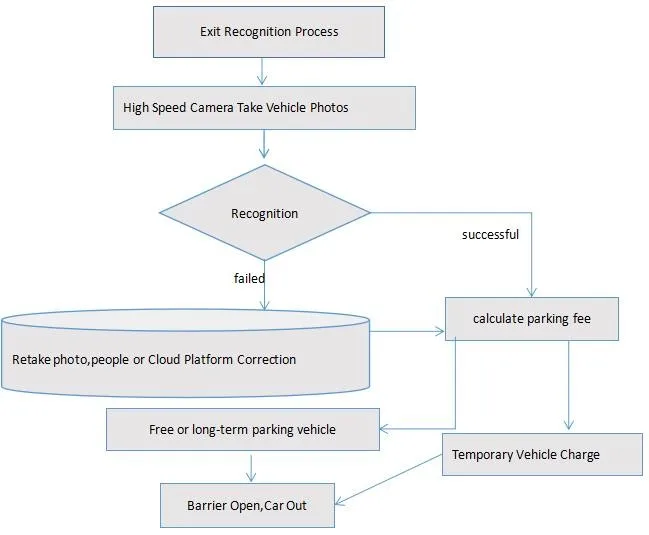

Leave the Car Park

Main Devices

Solultion Proposal

For example,the car park has 1 entrance and 1 exit.
At Entrance:installed with 1 set main ANPR camera,1 set auxiliary ANPR camera(optional),1 set parking barrier(include 2 car detector and 2 loop detector).
At Exit:installed with 1 set main ANPR camera,1 set auxiliary ANPR camera(optional),1 set parking barrier(include 2 car detector and 2 loop detector).
Management Center:mainly composed of ticketless pms software,embedded LPR software,charge PC or android terminal.
Optional items:entrance LED display,parking fee LED display,car park cloud platform,server,autopay terminal,booth surveillance,LED flash light,RFID,etc.

1.ANPR Camera(Main)

ANPR Camera is with HD lens,integrated with LPR to take photos and recognize the plate number.Usually install at the car park entrance/exit.Continuous operation with stability and reliability.

Main Functions
 Built-in intelligent video analysis,all-weather average detection rate is high
 Built-in video streaming ANPR,all-weather average accuracy rate is high
Will automatic adjust parameter according to environment brightness, noise reduction,night-time enhancements
Glass heating for defogging:camera lens have heating model,enhance device stability and recognition accuracy in rain & fog and slushy weather
Supplementary lighting self-regulation,off-line technique
Continuous capture,enhance capture rate
Communication failures and hardware failures Alarm
Support Off-line working:when network fails,the camera has built-in white list(VIP,Regular Parking) to guarantee these vehicles go through normally,save the car picture and recognition results in camera.When network recovers,upload to server.It can save more than 10000 pictures.If have temporary car,add car dispenser or ticket machine to achieve off-line charge
Have dual DSP+ dual ARM processor,support getting signal from Vehicle detector,and output two barrier control signal,control main camera and auxiliary camera shoot and re-shoot

2.ANPR Camera(Auxiliary)

ANPR Camera(Auxiliary) is mainly in charge of getting control signal from main camera and re-shoot plate number picture,installed at car park entrance and exit,continuous operation with stability and reliability.

When the main camera breaks down like network communication problem,the auxiliary camera will take over its work of video plate recognition and controlling barrier.

3.Parking Barrier

Open and close speed is both 1-2s with double direction self-lock function(when open or close is well operated,external force can’t make barrier up or down).Barrier surface is with reflective performance,visible even at night.Support multiple start such as remote controller,button press,mechanical rocking and PC control,etc.It gets signal from ANPR camera to allow or deny vehicles in and out.

4.Charge PC

Charge PC is placed inside the parking booth to collect parking fees by staff and operate the car park.It is installed with ticketless payment software or connect to internet by user/password to enter the backstage of payment system.

5.Complete and Powerful Software

Charging terminal software

compare in and out vehicle photos to avoid missing charge.

Real-time monitoring

guarantee security for the whole car park and every vehicle.

Car park cloud platform management system

show big parking data and make parking management much easier.

Functions

Parking Control on Vehicles In&Out

For all vehicles enter and leave the car park,the system takes the car plate recognition as the proof.

Management on Special Vehicles

For those vehicles unable to be recognized due to empty car plate or damaged car plate,put their photos into standby list after sorting car type,colors.When these vehicles leaving car park,staff will have manual checking on the photos taken at the entrance and exit.

Car Park Cloud Platform(Optional)

Cloud platform provides services like recharge,collect parking fees,share parking information resources.ANPR camera sends the uncertain photos of vehicles to cloud platform correction system.Video recognition software the cloud deployed will correct the plate No. to help improve recognition rate.

Anti-smash

Parking barrier is equipped with anti-smash function.Barrier will not drop until the vehicle leaves.

Reports

System can provide various kinds of charging data report,car enter/exit report,vehicle flow statistic report,vehicle parking analytical statement,daily/monthly usage report,etc.These reports can be exported to EXCEL format.

Multiple Payment Ways

System provides multiple payment ways such as booth station,WeChat,Alipay,mobile APP,hand-held PAD,autopay station and central station,etc.Convenient for drivers to pay parking fees and relieve pressures at exit.

Parking Ticket/Card Dispenser&Reader(Optional)

For some car plate numbers that are very difficult to be recognized by ANPR camera,we can add parking ticket/card dispenser at the entrance.Also add parking ticket/card reader at the exit to ensure their entry and exit.

Audio&Intercom

At entrance the speaker can broadcast welcome words,vehicle validity and kind remind of illegal vehicles.At exit the speaker can broadcast vehicle validity,car plate no.,parking fees,etc.Install inter-phones at management center,entrance and exit,ensure these points can connect with each other and vehicles smoothly in&out.

LED Display

At the entrance and exit we can install LED display to show welcome words,available parking spaces and vehicle information,etc.

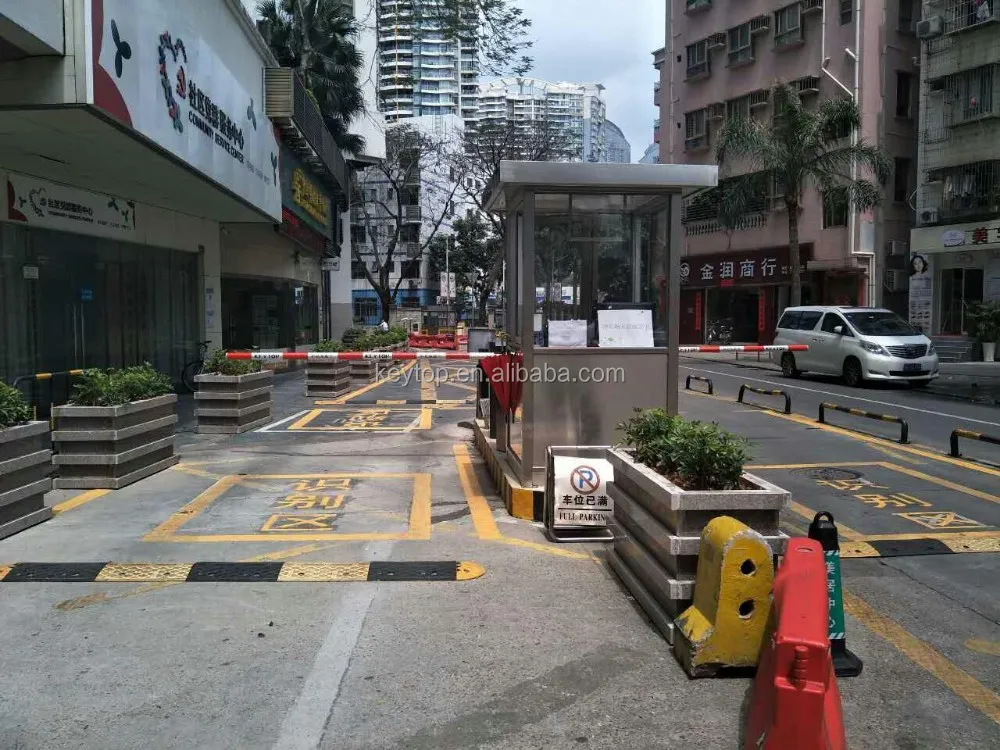

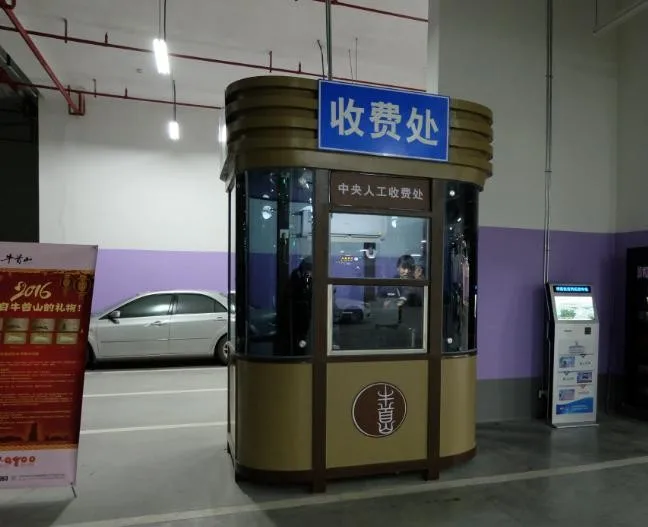

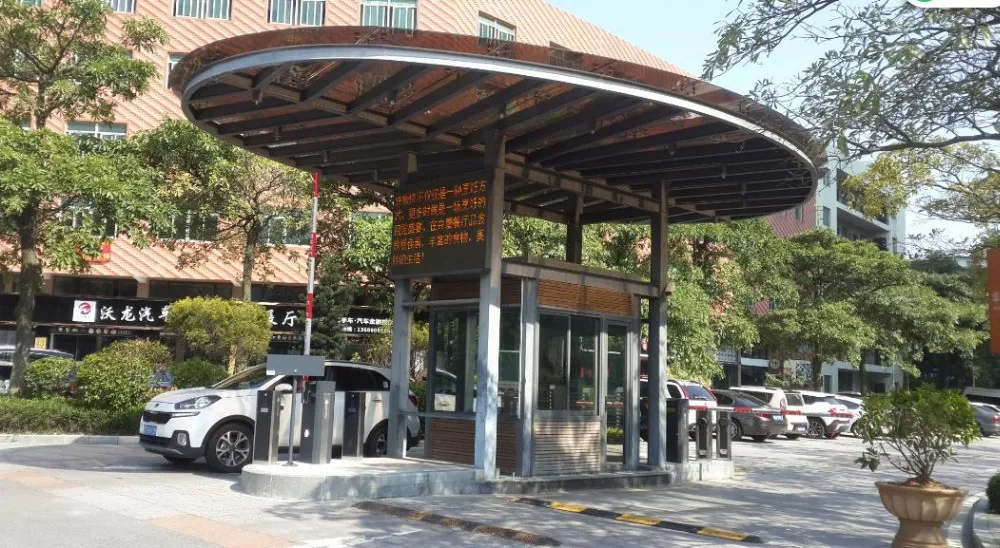

On-site Photos
