No-Touch Automatic Charging System for Parking Management

FOB Reference Price:Get Latest Price
US $1-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Ticketless Parking Management System
Height (mm):
250
Width (mm):
850
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
KEY - TPMS
Warranty:
1 Years
Working Voltage:
AC 220V ±15%,50Hz ±4%
Total Power:
≤30W
IP Grade:
IP54
Overall Dimension:
850*250*303.5mm
SupplyAbility
SupplyAbility:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export carton
Port
Xiamen port
Lead Time :
25 working days depends on order qty.
Product Description

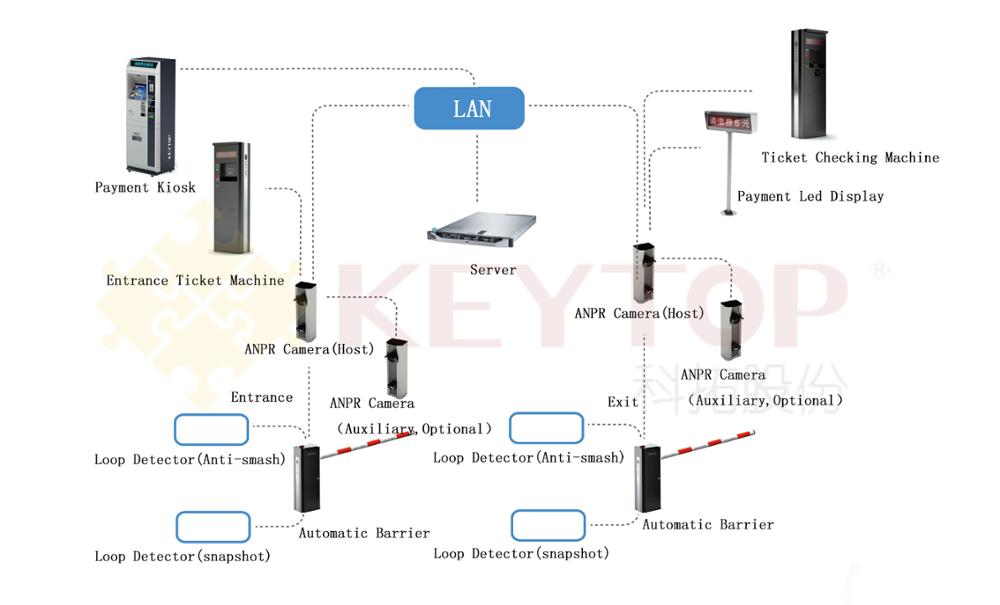

1.1. Entrance

When the vehicle arrive the video recognition area or loop detector get the signal,it will trig the main and auxiliary camera to take photos.The license plate recognition software will recognize the plate No. Automatically by video streaming.It is to quick analyze all photos of video streaming and choose the best photo to recognize intelligently.Then Select the optimum from the multiple recognized plate No.,finally get the best recognition result.About the plate No. which can not be recognized,the system will send the data to the cloud platform for correction and feedback the correct data to the server.Then the barrier will open for the driver to enter and close after in.And the system will begin to calculate this vehicle’ parking time.



1.2. Exit

When the vehicle arrived the video recognition area or loop detector get the signal,it will trig the main and auxiliary camera to take photos.The license plate recognition software will recognize the plate No. Automatically by video streaming.It is to quick analyze all photos of video streaming and choose the best photo to recognize intelligently.Then Select the optimum from the multiple recognized plate No.,finally get the best recognition result.The system will calculate the settlement amount.About the plate No. which can not be recognized,the system will send the data to the cloud platform for correction by human and feedback the correct data to the server.The system will calculate the settlement amount after correction.If the vehicle is long-term ,no need charge or already paid,the barrier will open for the driver to leave and close after out.If it is unpaid temporary car,it can leave after payment.The car park operator can monitor parking status all the time.









Packaging & Shipping



Company Information

KEYTOP Parking Inc. establish in 2006, with more than 3000 m2 modern office building, 25 branches and office, nearly 500 staff including R&D staff which account for more than 30%, is one of the few integrated company include R&D, production, sales and service in China.

Our Services

  • Technical Support: professional technical support team offering 24*7 services, help design a Parking Guidance System accordingly to the car park layout, preparing materials for tender, offering support during installation and after installation.
  • Guaranty: 3 years guaranty after installed.
  • OEM / ODM Service: Can silk print your logo on all hadware, ODM is welcome as well.
  • Payments: T/T, Western Union
