Quick Details

  • Type: Car Location System
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Model Number: KEY-V02.1
  • Warranty: 1 Years
  • Product Name: Video Detector
  • Application: Capture Images of Car Plate Number
  • Input Voltage: DC12V
  • Image Resolution: 1280*720
  • Connection Port: RJ45 network port
  • Response Time: 5s
  • Working Humidity: 10%~90%
  • Working Temperature: -20℃~+60℃
  • Min.Illumination: 0.1Lux(recognition>12Lux)
  • Max. Working Current: 200mA

Packaging & Delivery

Packaging Details: standard export carton,775*375*325MM,100 sets per carton
Delivery Detail: within 20 days against payment
Product Description
Product Name
Video Detector
Model
KEY-V02.1
Application
Parking Guidance
Size
140*140*65MM
Input Voltage
DC12V
Max. Working Current
200mA
Max. Power
2.4W
Operation System
Linux,400MHz
Connection Port
RJ45 network port
Image Resolution
1280*720
Number of Capturing
1 detector 1 space
Response Time
5s
Working Temperature
-20℃~+60℃
Working Humidity
10%~90%
Min. Illuminance
0.1lux(recognition>12lux)
White Balance
Support
Pixel
1,300,000 Pixels
Price
Negotiable
Warranty
3 months to replace,1 year to repair
Digital Wide Dynamic
Support

Specifications

1.adopt advanced video compression technology,high compression ratio and flexible handling
2.With 1,300,000 pixels, scans CMOS line by line,max.resolution up to 1280*70
3.support D1 video coding(640*480) and capturing
4.support JPEG capturing,max.size of image up to 1280*720
5.support recognize parking status and continuous capturing support red/green signal display

6.With RJ45 standard network port for communication and power,easy to install and configure

Car Finder System

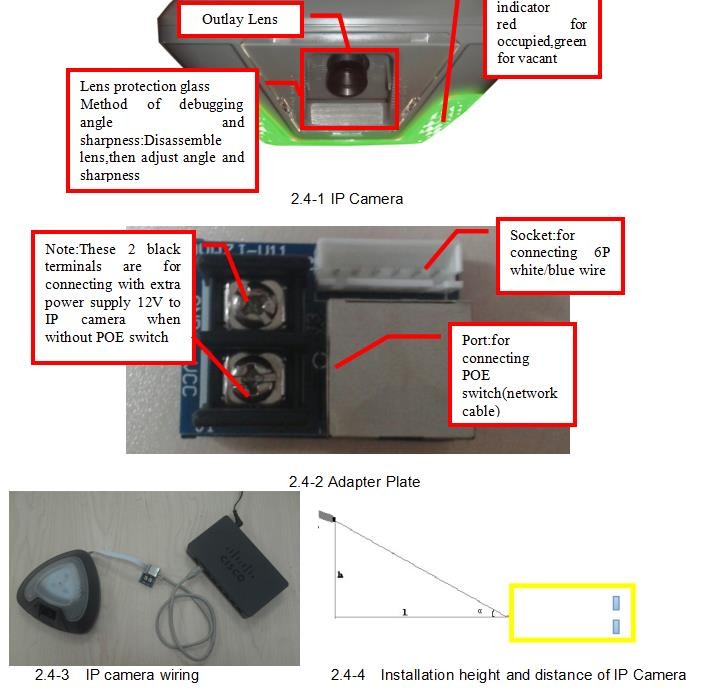

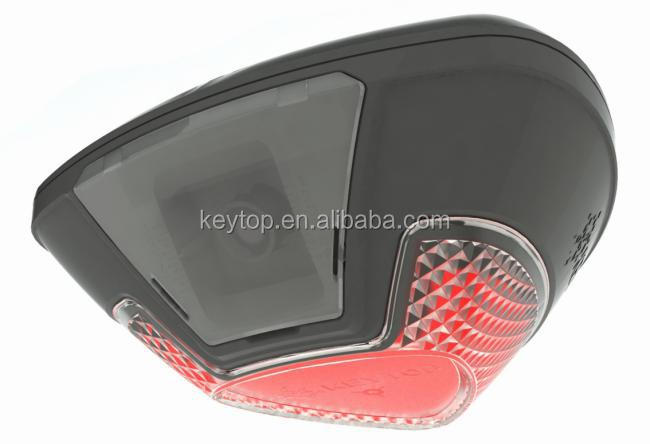

Functions and Installation of Video Detector

Installed in front of and opposite to every parking bay,IP camera captures real-time images from parking bay,get current parking status,and transmit recognized video and images to server for processing via network switch.IP camera is integrated with led indicator,when there is car occupied,led indicator shows red,otherwise shows green.

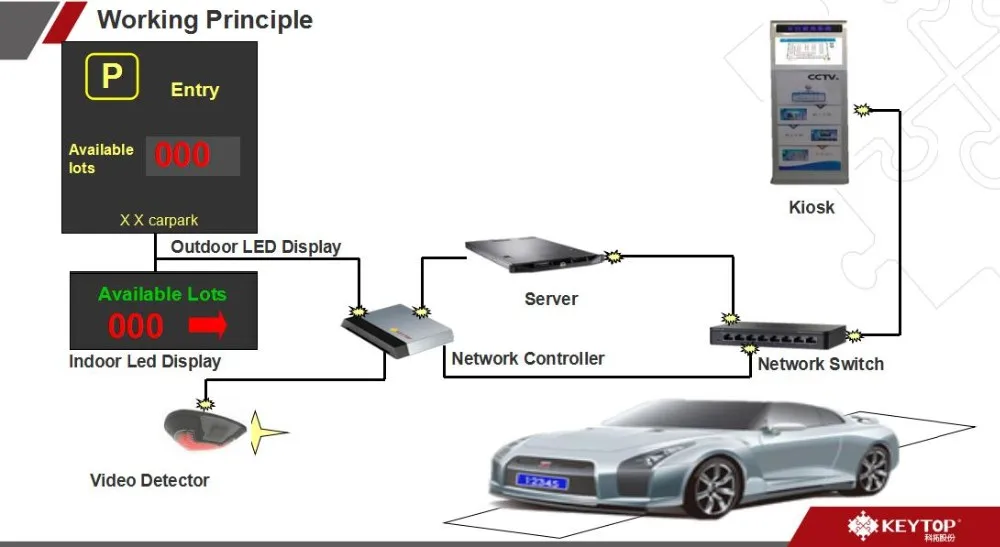

KEYTOP Video Detector based Car Finding System

Keytop Car Finding System combines parking guidance and car searching functions together,not only guides drivers to find certain free parking space quickly,but also guides them to find their parked cars.

Car searching function:The car owners can find their own vehicles by inputting the license plate number without card positioning. The system operates like this: input the license plate number to inquiry PC which is installed at the entrances or exits of carparks, the Parking Koisk will pick the data of the server after receiving the commands, then display the map of the parking lot that the owners stands. The map will display the position of the owners and the location of their cars. Besides, it will choose a best route to pick up the cars according the general route situation of the parking lot and display in the map of the parking lot to guide the car owners to pick up the cars.

Parking guidance function: This system can make the car drivers to park conveniently and quickly as well as monitor the parking space to make the management more standard and orderly. It will increase the utilization. The parking detection uses video detecting technology. The Video Detector is installed in the front of each parking space to make a real-time detection of the occupancy and free situation of each parking space. Video processor processes datas to all the detection information and send them to the main controller. The main controller issues the guiding information to LED displays according to the calculation in real time. It can guide the drivers to find certain free lots quickly.

Advantages of car finding system:
1.The car owners can find the car location quickly by inputting the license plate number.
2.The car owners don’t need to swipe cards to locate the position after parking.
3.Solve the searching problems; improve the whole image of the parking lots.
4.Display the free parking situation in entrances of carpark dynamically and at real time.
5.Guide the entering vehicles to the free parking region and parking space at the shortest time and with the best route quickly.
6.Reduce the vehicle wandering time, reduce the gas emission to save the energy and protect the environment.

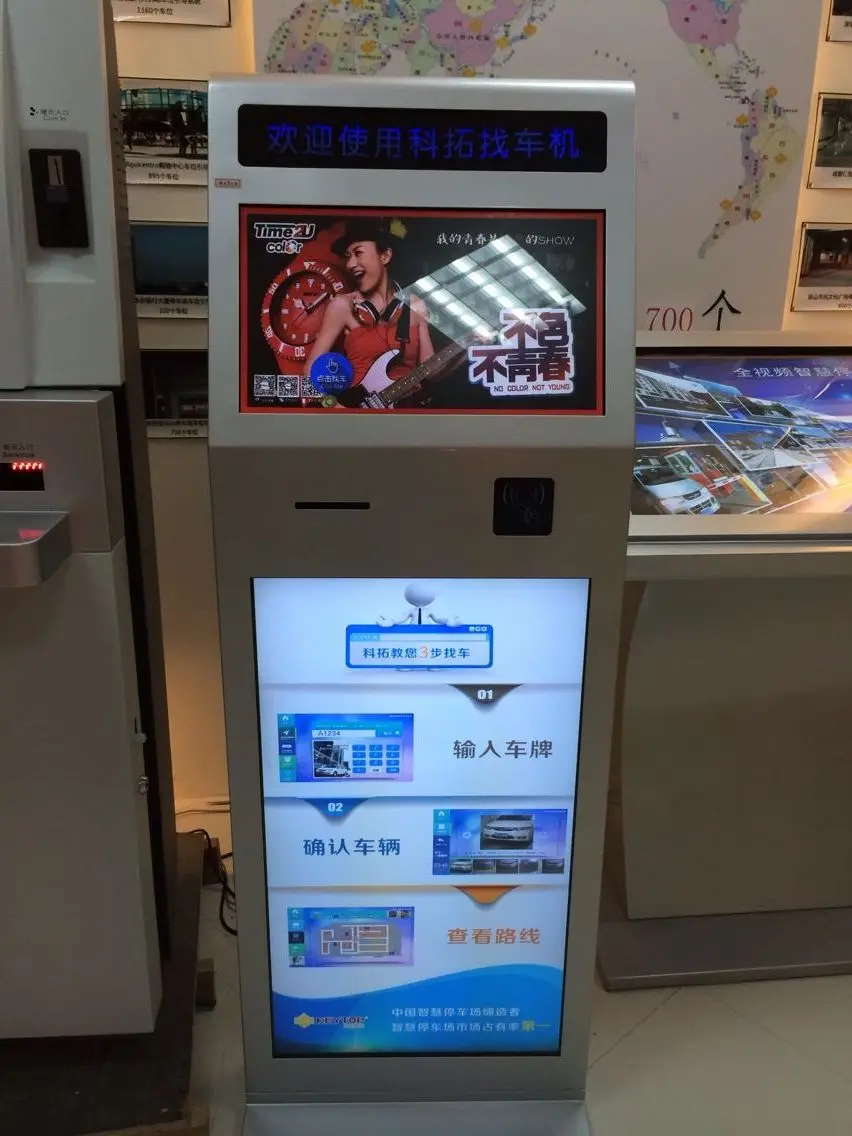

Parking Kiosk

Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of themselves and their parked cars.If not showed on the map,drivers can proceed with fast inquiry to select by parking time,to display photos of all vehicles parked during the selected parking time.

Are you still anxious to find your car after a happy shopping?Look here below to find your car.


Step 1

Find a parking kiosk inside the carpark,usually this parking kiosk is installed besides the elevator.

Step 2

Input car plate number on the kiosk and click "inquiry" for searching.

Our car finding system support multiple ways to search the car:

1.by digits

2.by full car plates number include english letter and numnbers

3.by parking time

4.by parking lot No.

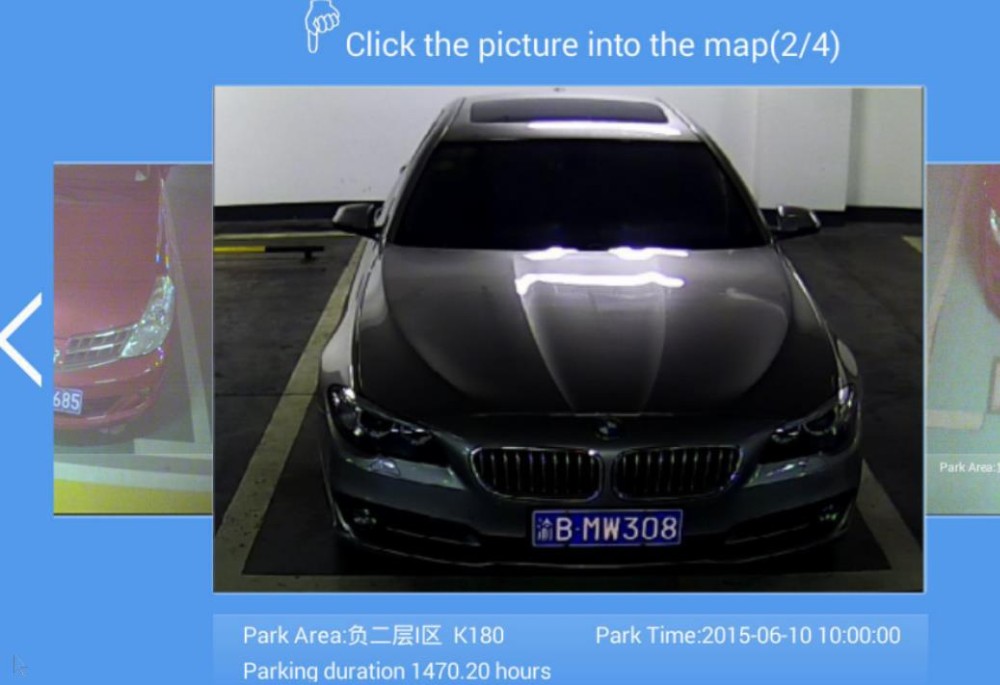

Step 3

After inputting car plates number,the system will show photos of vehicles for our selection and checking.If it's our car plates number,we just need to click on the photo.

Our system can record praking location,parking time and parking duration.

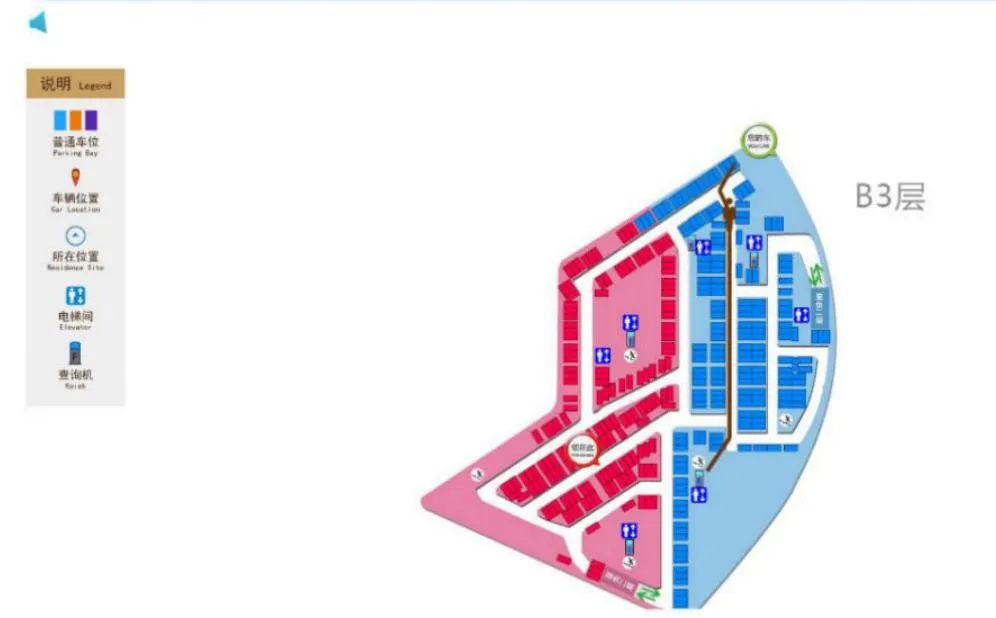

Step 4

Kiosk shows the location of drivers and his vehicle,we can go for our cars by the shortest route.

Our Company

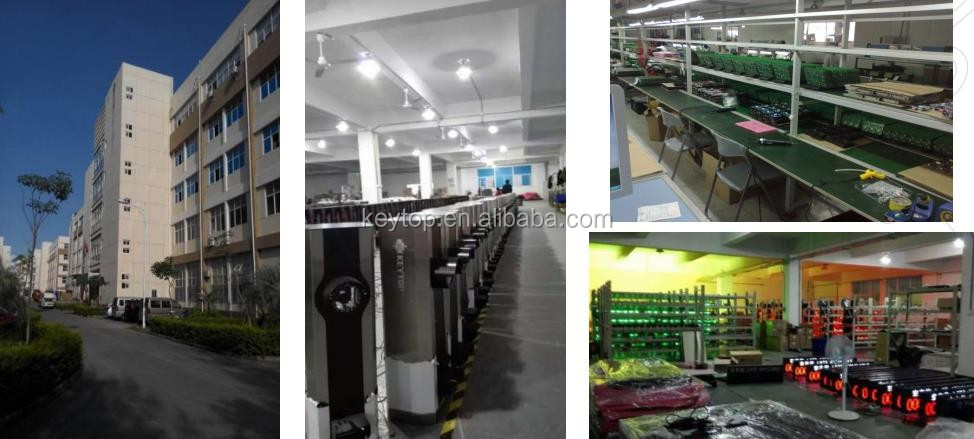

KEYTOP Parking Inc. is established in the year 2006 and dedicated on the development and manufacture of intelligent car parking solutions.We have self-owned 3,000 square meters modern office and 30,000 square meters factory plant for test,produce,assemble and package.Our main solutions include:

1.wired parking guidance system

2.wireless parking guidance system

3.car finding system

4.parking barrier system

5.ticketless parking management system

Should any solution meets your demands,welcome to CALL us

whatsapp: 0086-13506910351

Skype: amylyn_keytop

Email: amylyn(at) keytop.com.cn

New Product

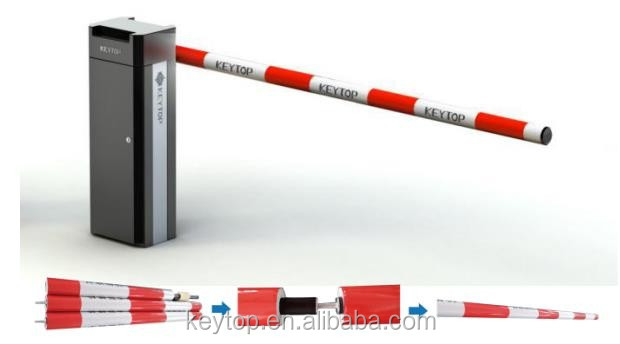

KEYTOP Fast-speed Parking Barrier

1.Open and close time is both 1-2s with double direction

2.self-lock function(when open or close is well operated,external force can’t make barrier up or down)

3.Barrier surface is with reflective performance,visible even at night

4.Support multiple start such as remote controller,button press,mechanical rocking and PC control,etc.

5.With three-section combination body,if one section damaged,only need replace the damaged section,but not the whole boom.
6.very light,easy delivery and simple connection at project site

7.data socket can be provided for integration with parking ticket system

Working Voltage
AC 220V ±15%,50Hz ±4%
Protection Class
IP54
Rated Power Consumption
120W
Operation Noise
≤65dB
Working Humidity
10%~95%
Working Temperature
-30℃~85℃
Material of Barrier Boom
Carbon Fiber
Barrier Boom Length
3 meters
Boom Direction
Left/Right
Up/Down Speed
1~2s
Operation Life
≥5,000,000 times
Remote Control Distance
30≤ m/s
Other Products

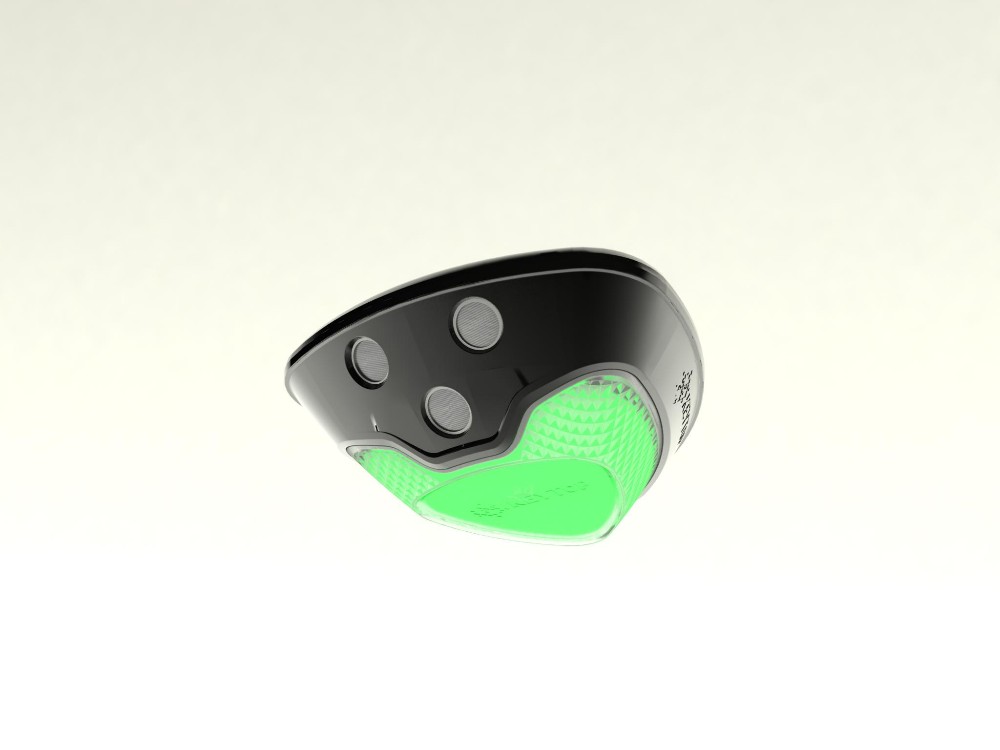

Forward Mounting Sensor

Model:KEY-TS07

Forward mounting sensor is integrated with LED indicator as one unit,it's installed at front of parking space to detet real-time parking status.Once a parking space is occupied by vehicle,it turns to red for occupancy.When a parking space is vacant,it keeps green for vacancy.


This sensor is for guiding drivers to vacant parking spaces quickly.

Quality Certificate
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. Make solution design according to parking layout and provide competitive offers for you.

5.Provide real-time technical assistance.
