2016 Wireless Central Control Unit for outdoor smart car parking guidance system

FOB Reference Price:Get Latest Price
US $1-100 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Height (mm):
220mm
Width (mm):
285mm
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-WC02
Warranty:
1 Years
Working Temperature:
-20~+80℃
Input voltage:
AC110-220V
Power dissipation:
2W
Communication speed:
RS-232-PC:57600bps; RS-485-ZCU:9600bps
Communication distance:
≤1000m
Communication way:
One RS-232 port(RS-232-PC), one node(RS-485-ZCU)
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export carton
Port
Xiamen
Lead Time :
Shipped in 5 days after payment

Keytop Wireless Outdoor Parking Guidance System Solutions

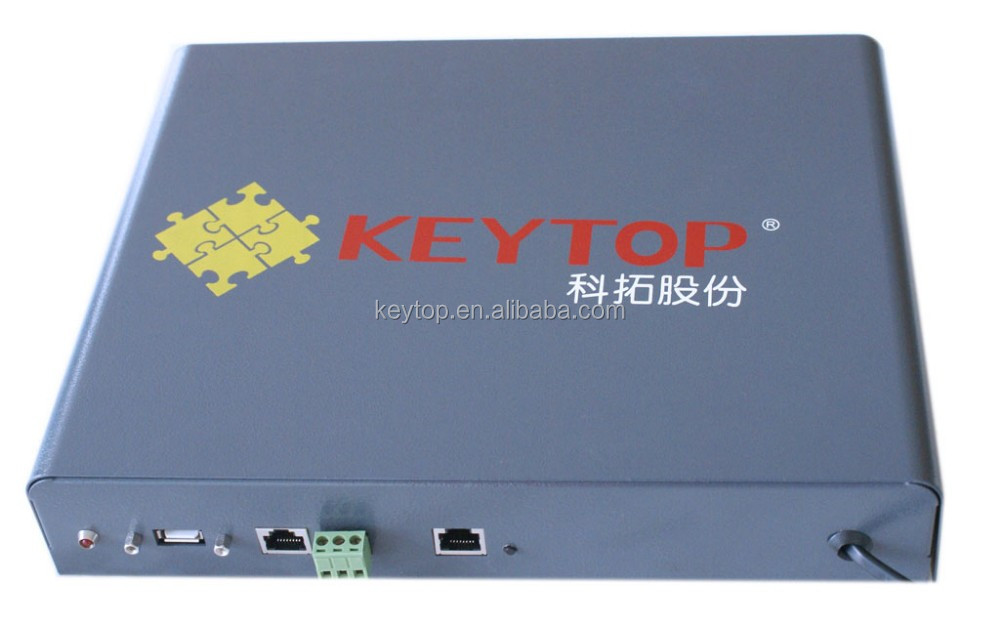

                                         Wireless Central Control Unit ( CCU )







 Introduction :

As the core of the system,CCU is mainly responsible for the acquisition and control of the whole system to achieve the vehicle guiding function by updating the parking information of LED display. One central controller can control 60 ZCU in max..

The system also provides wireless central controller, if use wireless communications, the wireless receiving module is required.

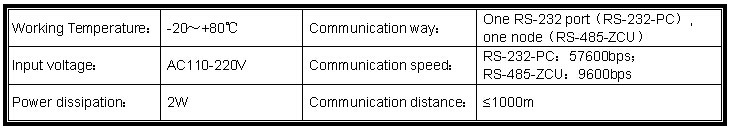

Technical Parameters :

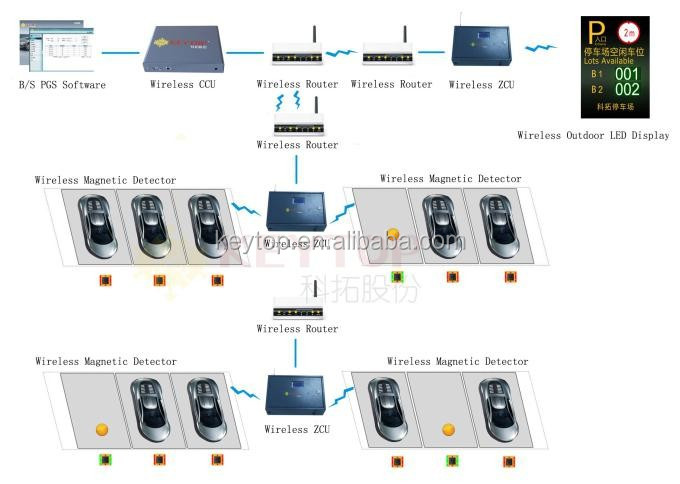

System Layout :

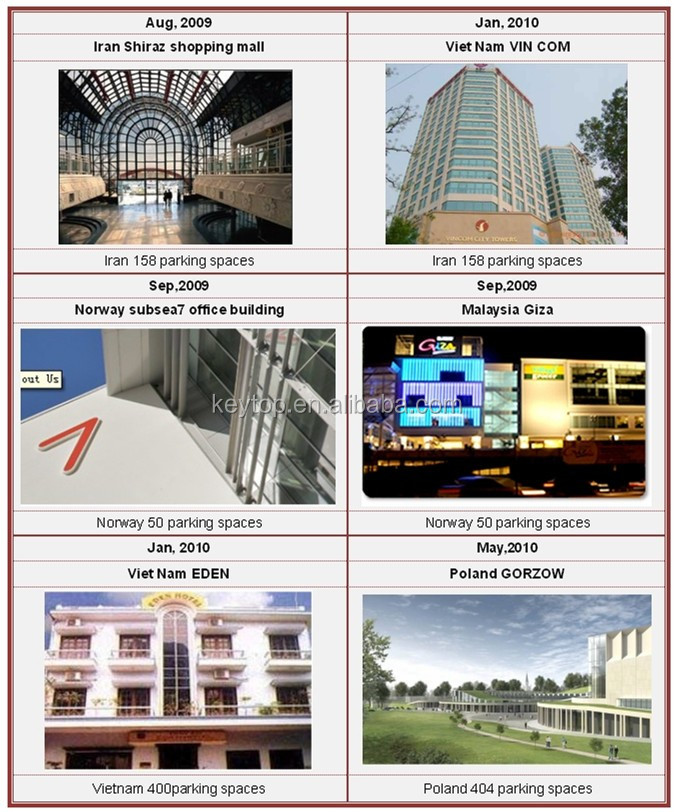

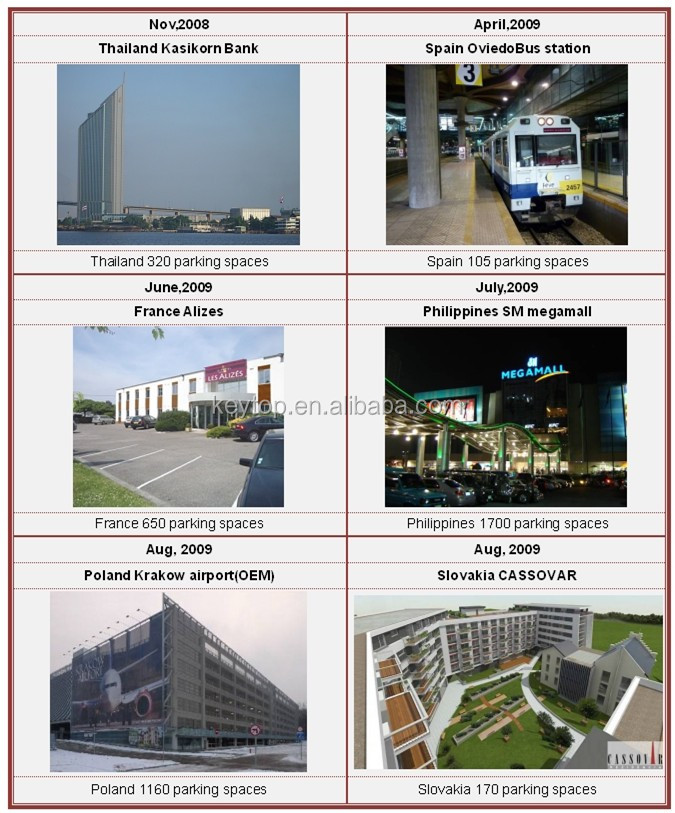

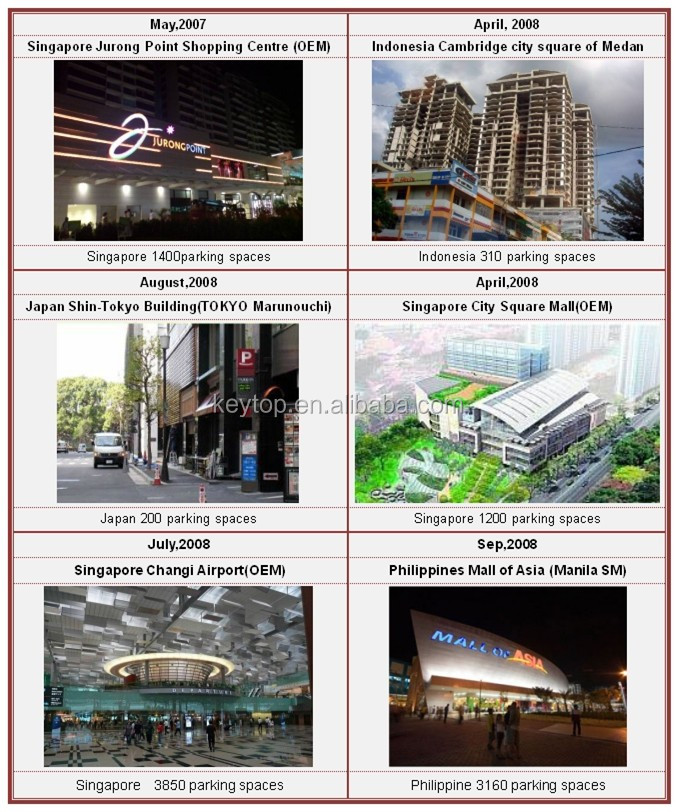

Cases :











---  Thanks for reading !  ---
