Wireless Zone Control Unit for outdoor smart car parking system

FOB Reference Price:Get Latest Price
US $1-100 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
outdoor parking guidance solution
Height (mm):
35cm
Width (mm):
25cm
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-WH06
Warranty:
1 Years
Service Voltage:
9~24VDC
Power Dissipation:
1.2W
Communication Way:
Rf communication(to detector or CCU),RS485 communication(to CCU)
Communication Distance:
30M (radius)
Working Temperature:
-40~60℃
Supply Ability
Supply Ability:
1000 Set/Sets per Month Delivery time : 3-35 working days after received payment
Packaging & Delivery
Packaging Details
standard export carton
Port
Xiamen port
Lead Time :
Shipped in 3 days after payment

Keytop Wireless Outdoor Parking Guidance System Solutions

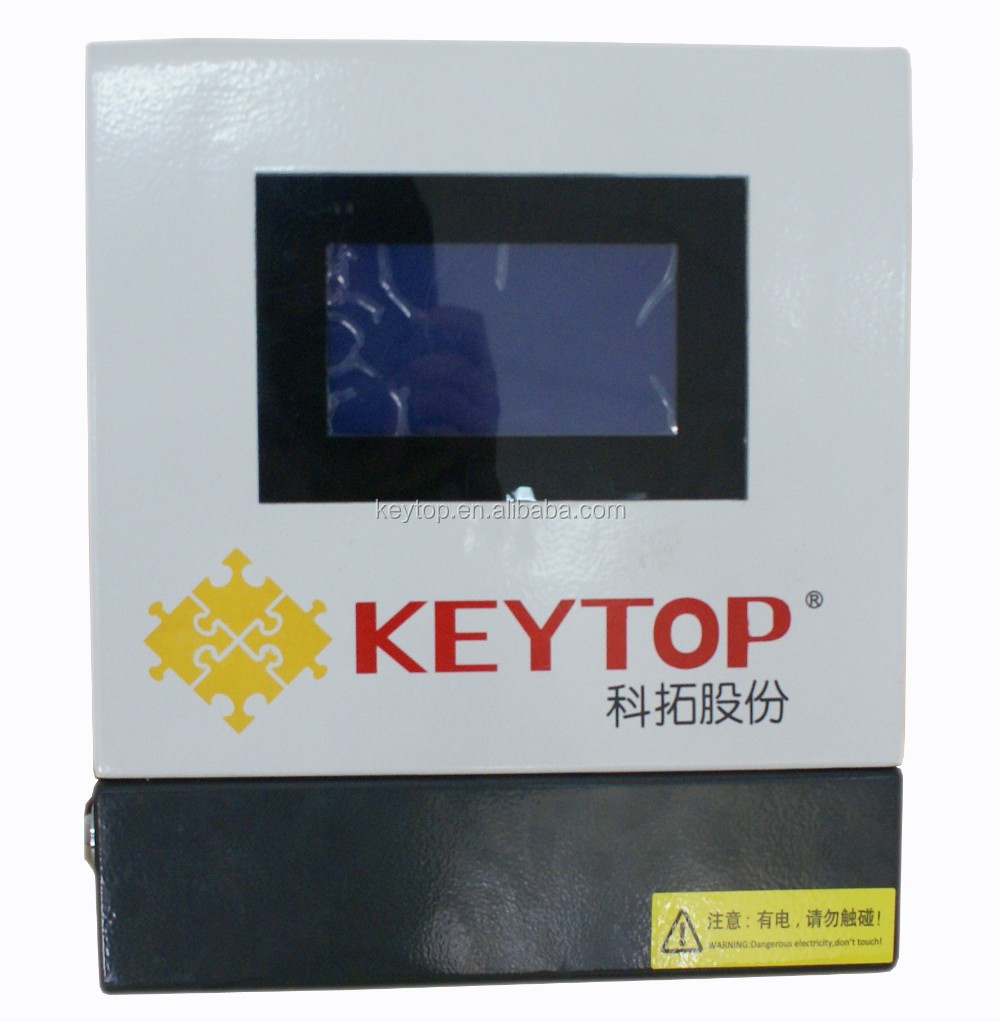

                                                           Wireless Zone Control Unit ( ZCU )











Installed wireless magnetic detector at every parking space to get parking information.The detector detects the geomagnetic field change every 3 seconds to judge the vehicle presence.If the parking status changes,it sends wireless signal to the wireless ZCU immediately,otherwise,the signal will only be transmitted every 5 minutes.Also,wireless solar indicator will be installed at every parking space.It will flash every one second.It will be in green when vacant and red when occupied.The wireless ZCU transmit the parking data to CCU after compressing base on the certain rules.Finally,this data will be transmitted to directional led display after the processing of CCU.Meanwhile,the parking data will be sent to the sever and stored in its database. The user can visit sever to learn parking information including year/month/date statistic data.

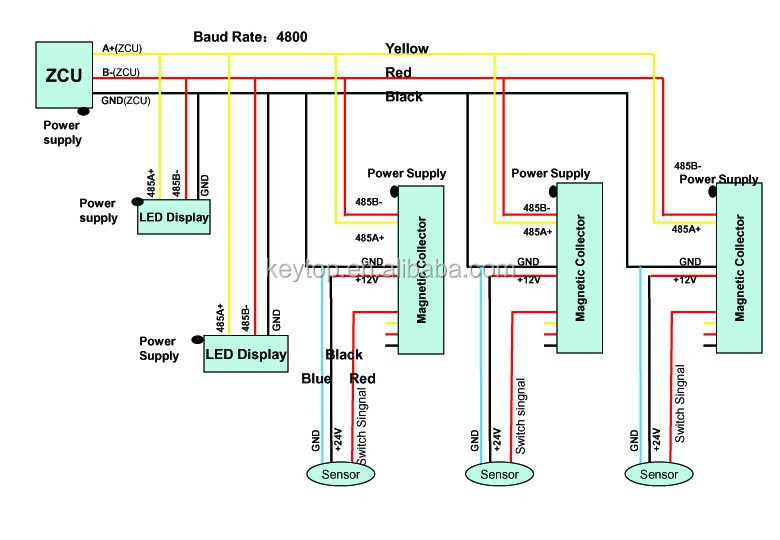

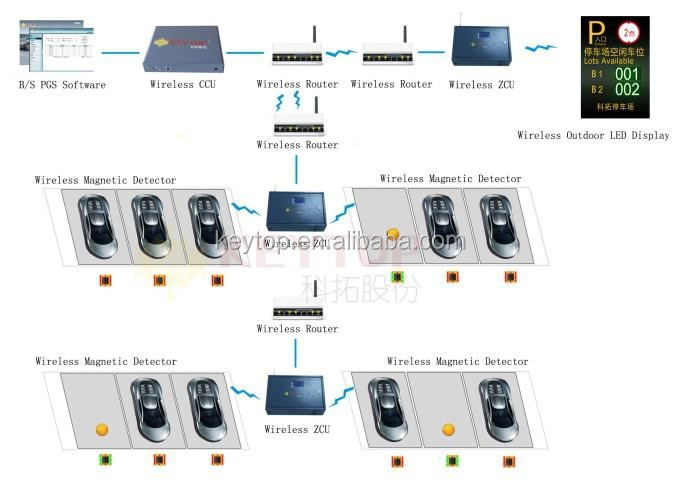

System Structure :




Outdoor System Structure(STATIC).jpg









Wireless Zone Controller (ZCU)

ZCU is responsible for collecting data of detectors and transmits to CCU.


The quantity of detectors ZCU supports depends on the communication distance between ZCU and detector.

The communication between ZCU and detector is wireless RF.Their max. communication distance is 30m.(ZCU as the centre).

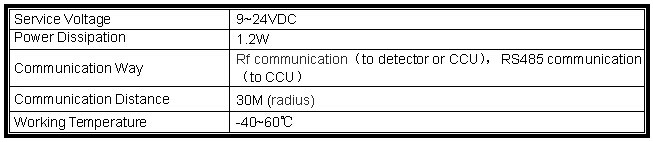

Technical Parmeters :

 .jpg

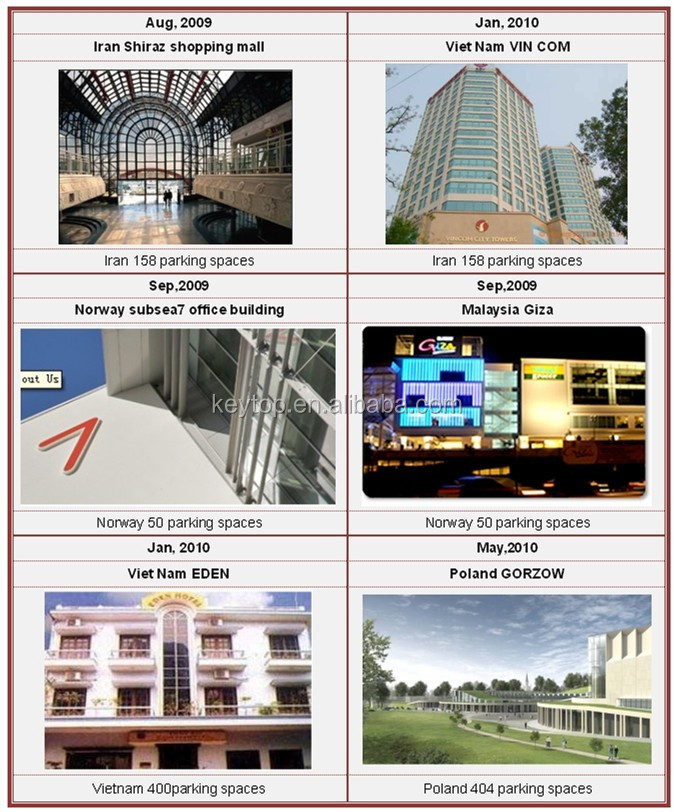

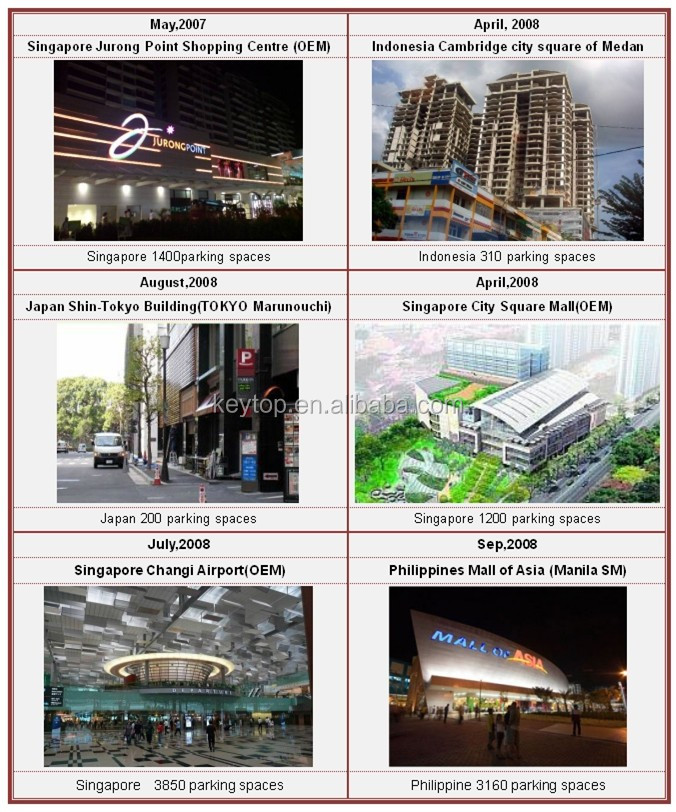

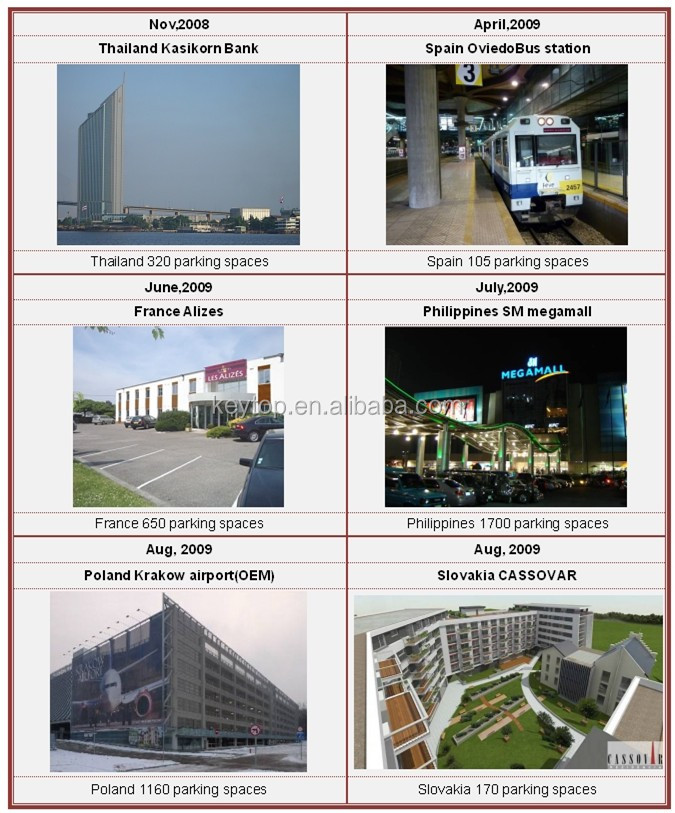

Cases :










Winter - .jpg









---  Thanks for reading !  ---
