KEYTOP Parking Guidence Zone Controller with RS485 Communication Way

FOB Reference Price:Get Latest Price
US $100-400 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
KEY-H07.1
Warranty:
1 Years
Usage:
Data Collector
Communication Way:
RS485 or TCP/IP
Input Voltage:
AC110~240V
Working Temperature:
-40~+80 centigrade degree
Working Current:
2W
Material of Casing:
Cold-rolled sheet
Capacity:
Support 60 ultrasonic sensors at most
Size:
350*230*105mm
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton,1pc/carton
Port
XIAMEN
Lead Time :
20 days against payment
Product Description

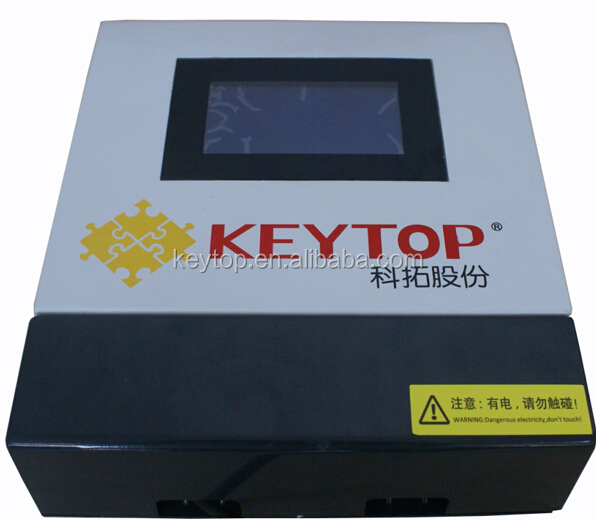

 KEYTOP Parking Guidance Zone Controller(Model:KEY-H07.1)

Zone controller is also called zone control unit(ZCU),it is installed on the wall from ground 2 meters.It scans ultrasonic sensors circularly by RS-485-B serial port and send related data to Central Control Unit(CCU) by RS-485-C serial port.It transmits control commands from CCU to LED display by RS-485-B serial port.Each zone controller can support 60 ultrasonic sensors at most.

new zcu.jpg



 Technical Parameters

Usage:Data CollectorWorking Current:2W
Working Temperature:-40~+80 centigrade degreeCommunication Way:RS485/LAN
Input Voltage:AC110~240VMaterial of Casing:Cold-rolled sheet
Capacity:can support 60 sensors at mostSize:350*230*105mm

Advantages

1.Collect parking data from ultrasonic sensors and transmit them to centrol controller

2.With LCD display,easily to check status of every parking space and sensor working

3.Each zone controller can connect with 60pcs sensors

4.Give power directly to ultrasonic sensor by network cable

5.Two kinds of communication way:rs485 and LAN,easy for integration with other systems


System Diagram

 PGS System Diagram
