2018 KEYTOP Parking Guidance System With Ultrasonic Sensor 3 Years Guaranty

FOB Reference Price:Get Latest Price
US $20-55 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Height (mm):
360
Width (mm):
120
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Ts-S03.3
Warranty:
3 Years
Communication port::
RS 485/TCP IP
Ultrasonic Sensor Detect Range:
0.5-3.5 meter
LED Indicator Color:
Red/Green/Blue
LED Indicator Quantity:
6 Red/Green/Blue
LED Indicator luminance:
5000 mcd
Working temperature::
-40℃ To +80℃
Indoor LED Guide Display:
One Arrow Three Digit
Indoor LED Guide Display luminance:
≥500 mcd
Parking Management Software Language:
English/Spanish/Arabic/Portuguese or other
Supply Ability
Supply Ability:
101000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
CARTON
Port
Xiamen
Lead Time :
Within 30 days

GENERAL



The parking guidance system directs drivers to parking areas with free parking spaces using signs and displays. This dynamic guidance is based on the current occupancy level determined using software and control logic.
The parking guidance system can manage the entire car park by:

• Guiding the traffic to available spaces.
• Filling up priority parking spaces under operator demand.
• Blocking off certain parking areas.
• Reserving individual or several parking spaces.
• Monitoring time of spaces that are occupied.
• Statistically analyzing the occupancy of parking areas.



2.0 SYSTEM STRUCTURE

The system composed of different layers which are connected by RS485, CAN or TCP/IP.

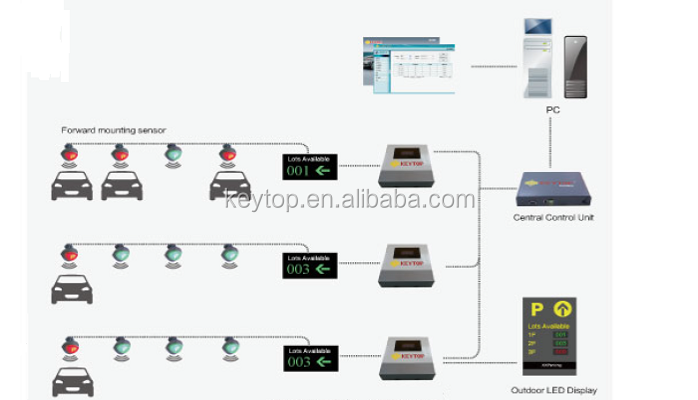

system .png

• Data Acquisition -- Ultrasonic Sensor
• Data Transmission -- Zonal Controller collect and manage data
• Information Release -- LED Display and LED Indicator
• SPG Server and software, process data and release indication



3.0 OPERATION
Each parking space installs an Ultrasonic Sensor which is used to detect the parking situation and send information to zone controller, once the zone controller receives information it releases different indications to different components. The system is capable of;


• Remote Desktop .Operating and monitoring from workstation
• Management Systems
Directly integrating prepared parking information into other management systems

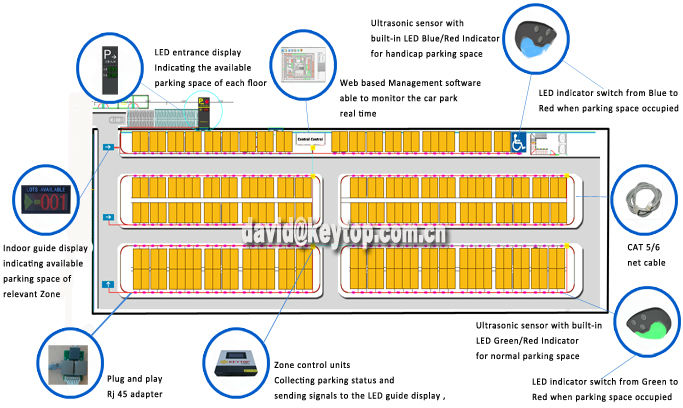

4.0 COMPONENTS

683 408 map-final 2.jpg

4.1 SENSOR
The sensor measures distance using ultrasonic waves. A controller in the sensor compares the measured distance value with a set comparison value. Objects detected between the sensor and the set comparison (reference) values are reported by the sensor as "occupied" to the in-sensor processor. The sensor contains builtin LED lamp, allows fast, accurate and stable detection of each car park lot performance.

Operational temperature : -40 up to 80

The detection distance : less than 3.5m

QQ20140504154321 .jpg

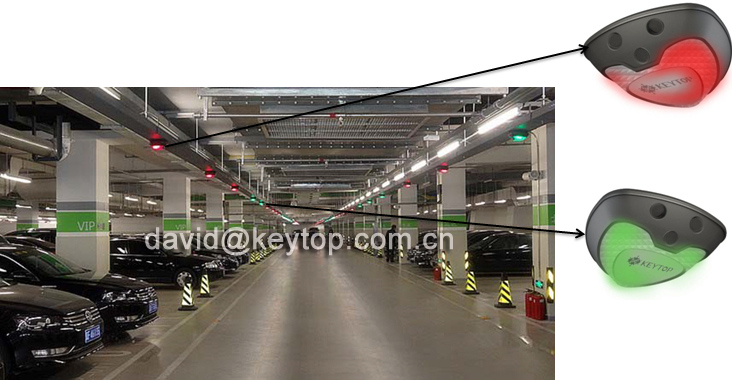

•Green light Status 'unoccupied           •Red light Status 'occupied'





4.2 Zonal Controller

Each Zonal Controller can suppor 60 pieces Detector and 20 pieces Variable Message Signage

 in a single / multiple zones, besides the Ultrasonic Detector and LED Display can be directly mixed connected, save cost and connection material. The input power will be 110-220VAC 50Hz frequency and the output power will  be DC24V/3A.

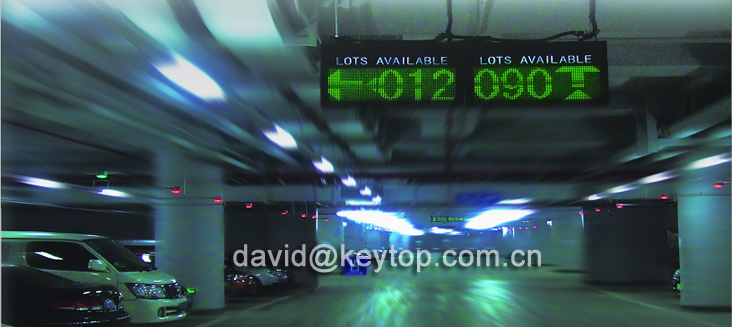

4.3 Variable Message Sign (Indoor )
Display signs are used to show the way to free parking spaces at all turning points in the car parks.
The display can be of;


• Single Direction
• Double Direction
• Triple Direction
• Color (Red and Green)




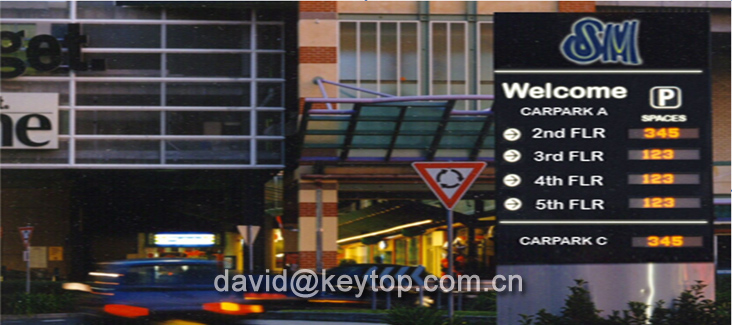

4.4 Main Display Panel ( Outdoor )
Main display guidance panel is usually placed at the entrance of each parking floor which shows the actual amount of parking spaces available on each level.



4.5 Main Controller / Smart Parking Guidance Server
SPG Server is the hub of Smart Packing Guidance System which is responsible for data transmission and control of the entire system. It can individually Operate System and save data without computer.




How it can help u ?



Airports and Large Corporations

From Airport to hospital to  world financial center, KEYTOP intelligent Parking Guidance system will turns existing parking applications into a world class facility, help driver Reduced time looking for parking, and reduced frustration.

Shopping Malls

“The less time the customer spends time in finding an available parking space, the more time they will spend in shopping ” , KEYTOP intelligent Parking Guidance system will bring customer to shopping mall faster and Increase their shopping satisfaction

Public parking facility

The Intelligent Parking system lets facilities managers who manage parking earn more from their existing investment while at the same time helping customers find a parking space fast and with much less stress



Reference installations



3160 Parking Space

Philippines

Mall of Asia

3000 Parking Space

Thailand

Mega Bangna

2100 Parking Space

Taipei

Taipei municipal CarPark

2000 Parking Space

Saudi Arabia

King Fahad Medical City

2000 Parking Space

Japen

Shonan Car Park

1800 Parking Space

Shenzhen

Headquarter of Wal-mart

1976 Parking Space

Indonesia

Pacific Place

1160 Parking Space

Poland

Krakow Airport

1006 Parking Space

Kuwait

Mubarak Hospital









Our Service

Technical Support:  Have professional technical support team offering 24/7 services, help design a Parking Guidance System accordingly to the car park layout, preparing materials for tender, offering tech support during installation and after installation.

Guaranty:3 Years guaranty after installed

OEM/ODM Services: If project have more than 100 parking space, can silk print your logo on all hadware ,ODM is welcome as well .

Payments: T/T ,western union

Lead time : Within 20 working days

Contact us today for a chat and see what we could do for you.
