Quick Details

  • Type: parking guidance system
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Model Number: Key-P10.1
  • Warranty: 1 Years
  • Communication Way: RS485
  • Panel Size: 32*16CM
  • Display Content: Red FULL or Green 3 digits
  • Dot Matrix: 32*16
  • Operating Voltage: DC5V
  • Power: 7W
  • Luminance: 1000cd/m2
  • Function: Show number of empty parking lots

Packaging & Delivery

Packaging Details standard export carton,1pc/ctn
Delivery Time within 20 days against payment
Company Information

  Keytop Parking Inc. was founded in 2006,we have been in the field of intelligent parking solutions for 9 years in China.Our main products including wired parking guidance system,wireless parking guidance systemand IP camera based vehicle tracking system.With rich experience of projects implementation and CE certificates,we have successfully exported to 50 countries  and more than 1000 car park projects installed with parking guidance system.We have built up relationship with SM,Walmart and Wanda Plaza.





Product Description

 Outdoor Led Display



Outdoor LED display is compose of high intensity outdoor LED module, driving circuit, controlling circuit, frame and other parts. It receives the statistic information of the parking spaces from the central controller, displaying the amount of available parking spaces in real time and can be used 24 hours a day. Internal procedure can be revised at any time according to the users' demands, displaying other information.




Features

1.Show number of available parking spaces on the panel

2.Programmable,can edit displaying content according to project's need

3.High illuminated and waterproof,visible for drivers to see from far distance

4.Good parking guidance,lead people to empty parking slots quickly

Related Products

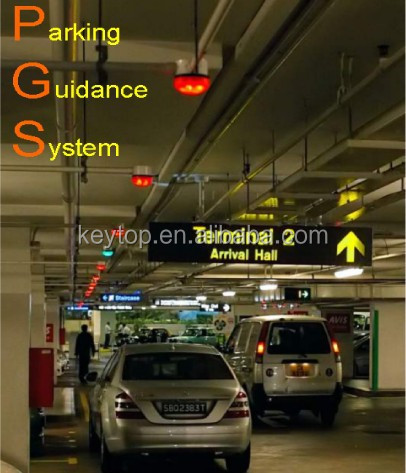

Keytop Parking Guidance System



Parking guidance system is using ultrasonic detector and led indicator to monitor every parking space and leads drivers to empty parking spaces by the shortest route.

Features
  • support offline checking and store parking data for 2 years
  • have 2 communication ways:RS485 and TCP/IP,support integration
  • low voltage power supply DC24V ultrasonic detector has high accuracy
  • high illuminated led display tells real-time number of empty parking slots and directions of which way should go
  • specially designed for various types garage and provides people a faster and cost effective way to find vacant parking slots
  • 360 degree visible led indicator with multiple colors,green for vacant parking lot,red for occupied,blue for handicapped
  • node controller is equipped with LCD display,convenient for car park manager to check the status of every sensor(occupied,vacant or malfunction)
  • all devices are connected by network cable and telephone line,with RJ45 adapter plate,easy to install and debug,save a lot of installation time and reduce labour costs greatly

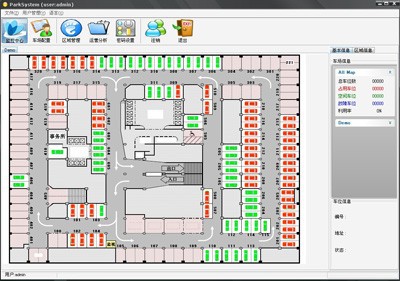

  • check parking situation of the whole garage through web-based parking management software,easy for garage operators to see the ultilization of parking spaces

Main Devices

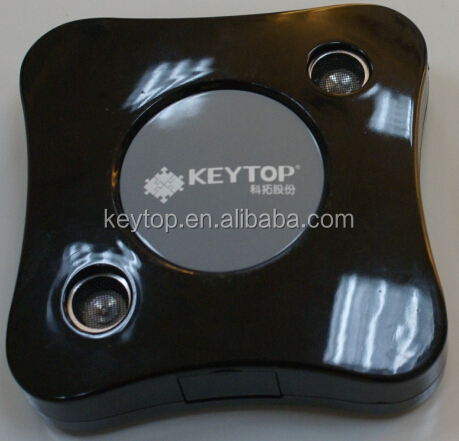

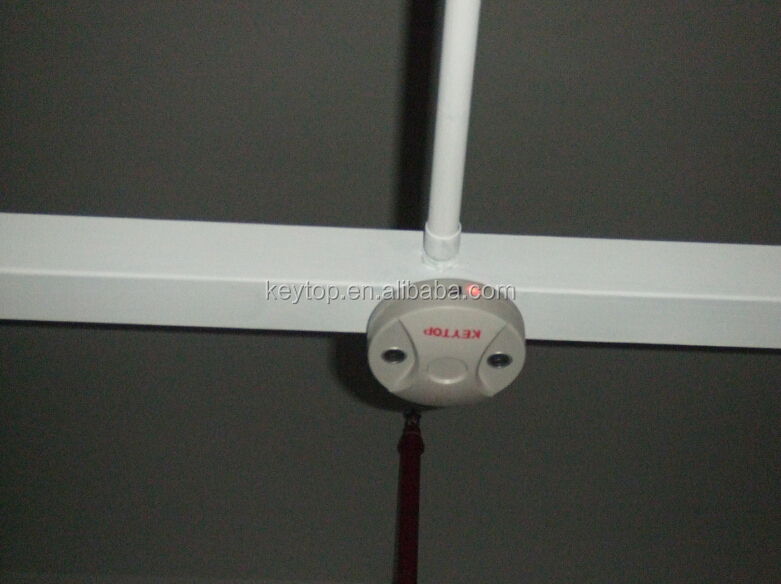

 Ultrasonic Detector (Key-TS06.1/Key-TS06.3)

Installed in the middle of every parking space to detect the real-time status and send signal to led indicator for showing green or red color.

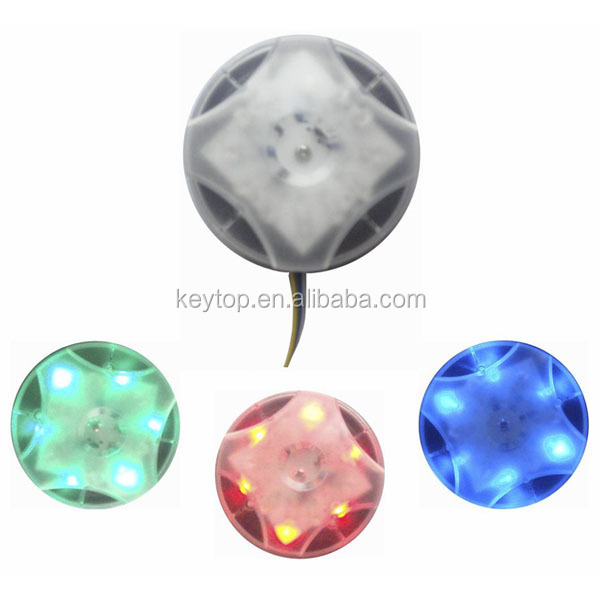

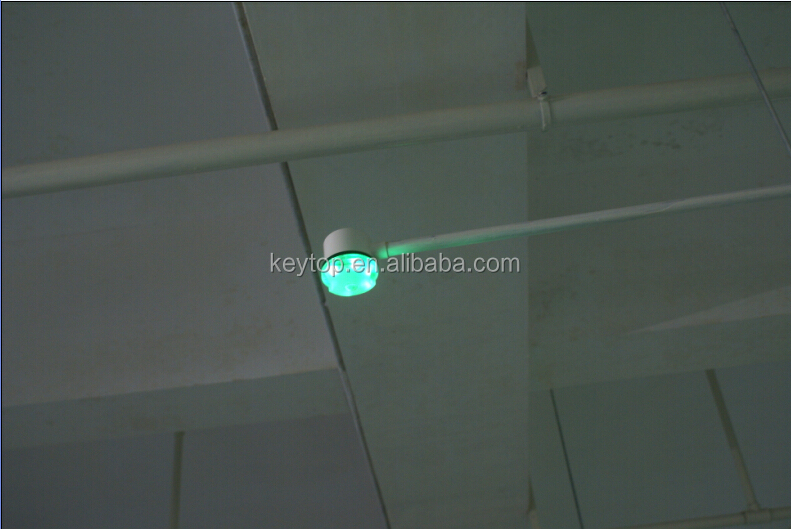

Led Indicator (Key-B02.1)

Installed at front of parking space to display green for vacancy,red for occupancy and blue for handicap.

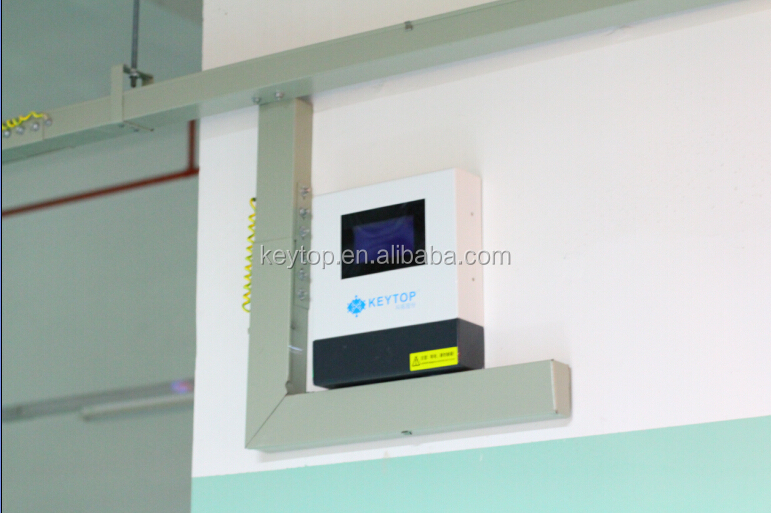

Zone Control Unit(Key-H07.1)

Collects data from ultrasonic sensor and pass information to central controller.Each ZCU can connect and control 60 pcs sensor at most.

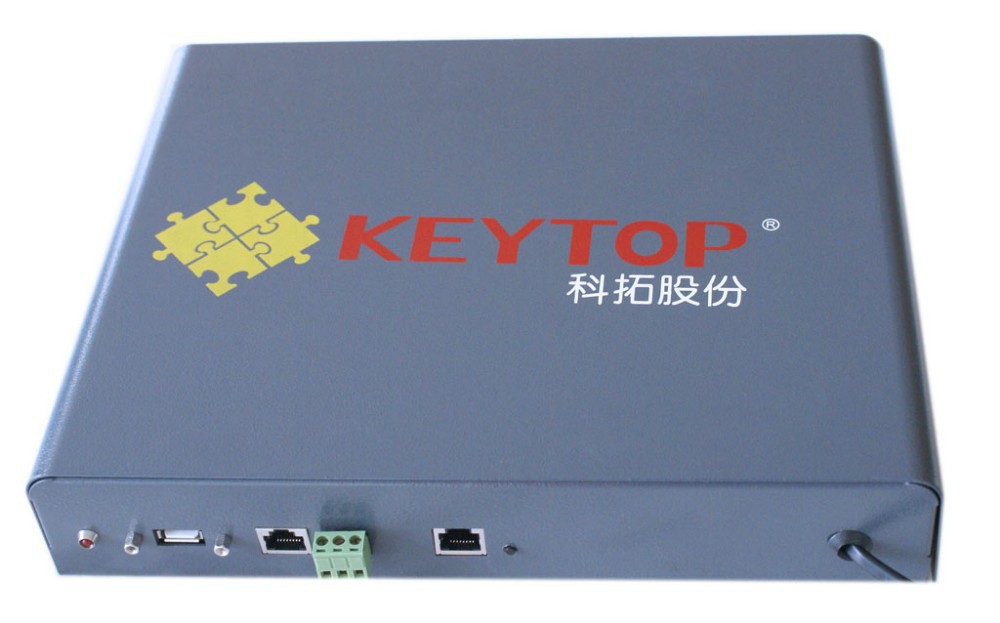

Central Control Unit(Key-C02.1)



Proceed data from node controller,update real-time empty parking space to led displays and store data for 2 years.With web-based management software,easy for user to configure and run.Each CCU supports 60pcs ZCU.

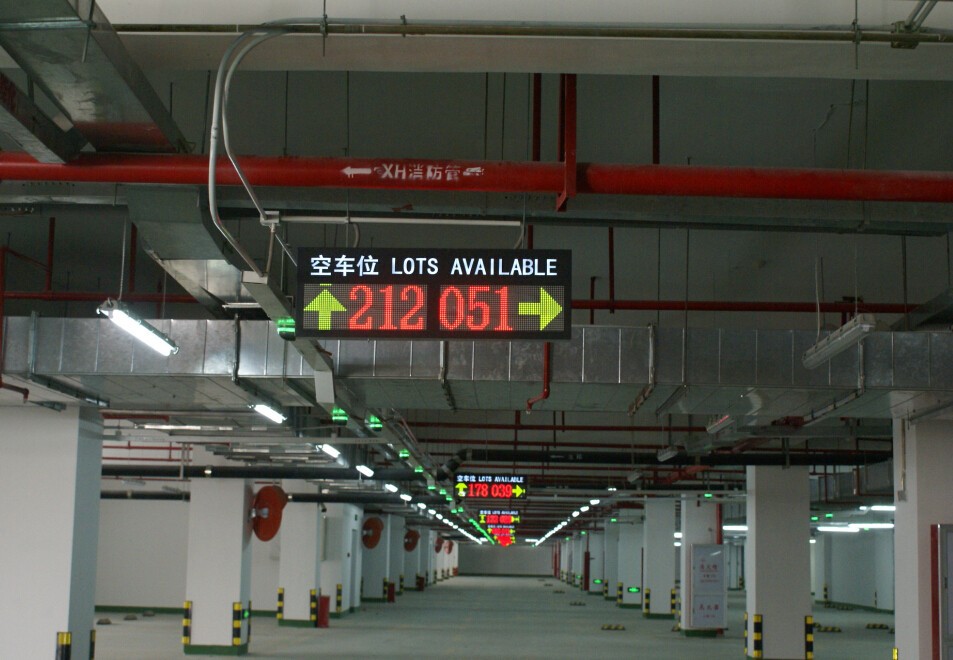

Indoor Led Display (Key-S03.3)



Installed at the crossings or turning point of driveway and show real-time number of empty parking lots.Panel size 36*12cm,dot matrix 48*16,dual color,3 digits 1 arrow.

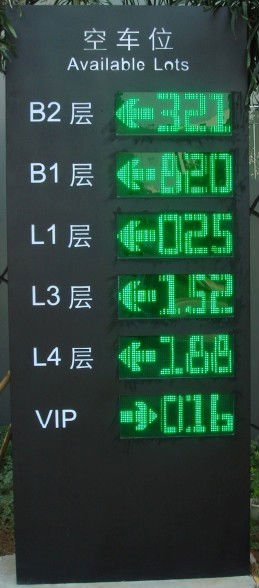

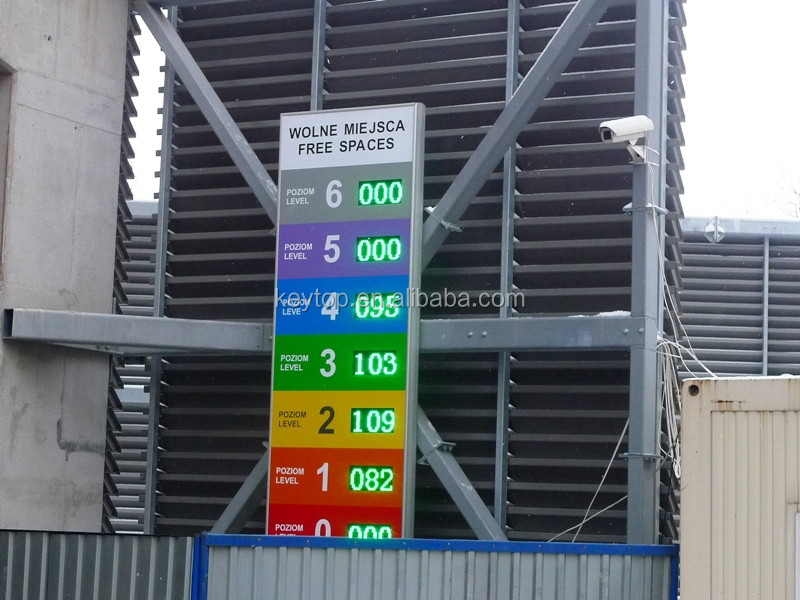

Outdoor Led Display (Key-P10.1)



Installed at the entrance of garage,tell total number of empty parking lots



Working Procedure



Firstly,Outdoor led display shows real-time number of empty parking slots in the garage,telling drivers which level should go.

Secondly,Indoor led display informs people on every point of decision,the vacancy of parking spaces by displaying 1 arrow and 3 digits.

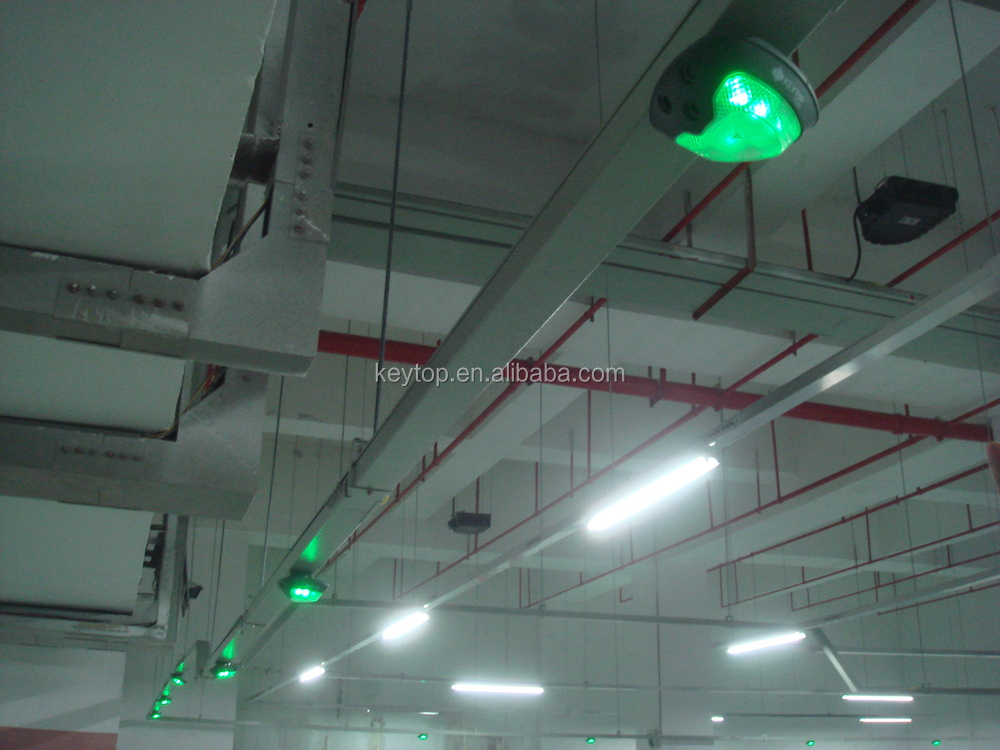

Last,Every parking lot is monitored by ultrasonic detector and led lamp,it is visible for people to see which parking lots are empty and can park in.





Projects Reference

Parking Guidance System with Separated Ultrasonic Sensor and Parking Space Indicator





Parking Guidance System with 2 IN 1 Forward Mounting Sensor (save USD20 per lot on installation costs)
