smart vehicle tracking system with parking guidence function and LPR software

FOB Reference Price:Get Latest Price
US $43-2,100 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
vehicle tracking system
Place of Origin:
Fujian, China (Mainland)
Brand Name:
1 Years
parking guidance+car location+cctv
3 systems in 1
Pixel of IP Camera:
800K Pixels
Minimum Illumination of IP Camera:
Main Devices:
IP Camera,Led Display,Kiosk,LPR software
Maximum Resolution of Kiosk:
English Version or OEM
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export carton


Product Description

 What is KEYTOP IP Camera Based Vehicle Tracking System?

This newest parking solution is developed on the basis of traditional parking guidance system,in order to help garage operators better manage their parking lots with more functionalities and software,also assist every driver to find empty parking lots fast,search location of vehicles once they forget where car parked and secure their vehicles by network video recorder.


Main Devices

 IP Camera(integrated with led lamp green/red colors as one unit)

Installed in front of and opposite to every parking bay,IP camera captures real-time images from parking bay,get current parking status,and transmit recognized video and images to server for processing via network switch.IP camera is integrated with led indicator,when there is car occupied,led indicator shows red,otherwise shows green.



1.adopt advanced video compression technology,high compression ratio and flexible handling

2.800K pixels, scans CMOS line by line,max.resolution up to 1280*70 D1 video coding(640*480) and capturing JPEG capturing,max.size of image up to 1280*720 recognize parking status and continuous capturing support red/green signal display



POE Switch


1.POE switch is composed of switch module and power module,used to summarize data from IP cameras and transmit to server via network switch.

2.POE switch can give power supply to IP camera during its process of transmitting data.




1.It is with vehicle tracking system software,stores images data of parking bays and releases information on kiosk for drivers to inquire cars locations.

2.Controls display of led guidance screen.


Network Switch


Connects IP camera also kiosk to server,transmits updated data to led display.

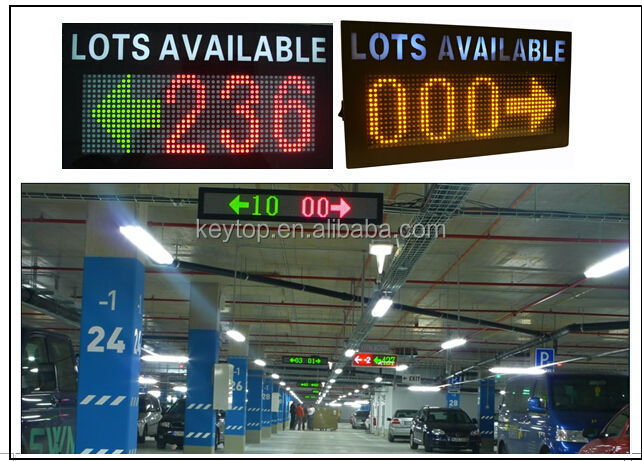

 Led Display(Indoor Parking Guidance Screen and Outdoor Led Display)

 It is suggested to install led display at key crossings of inner carport,quantity and display content of led display are customized according to clients’ needs.Led display is composed of indoor high illuminated led module,drive circuit,control circuit,casing,etc.It receives statistics of parking bays from server,shows current available quantity of parking bays in certain zones in form of digits and words.It can be used for 24 hours,inner procedures can be revisedaccording to users’ requirements,and display other information.

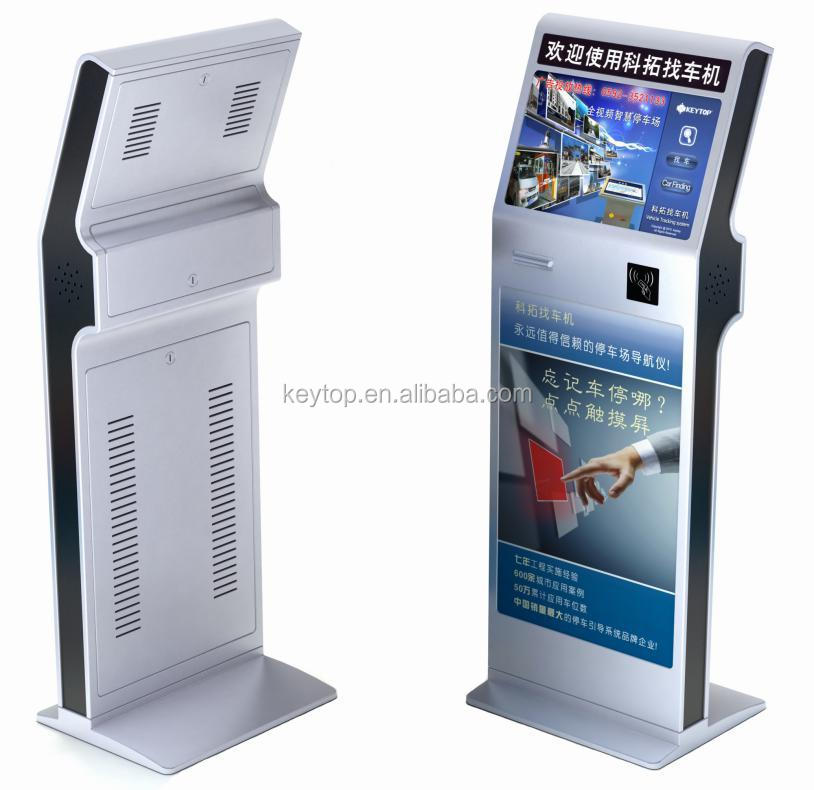

Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of themselves and their parked cars.If not showed on the map,drivers can proceed with fast inquiry to select by parking time,to display photos of all vehicles parked during the selected parking time.




Multiple Functions

 Advantages of IP Camera Based Vehicle Tracking System

Choose suitable functions regarding to your current budget and support to upgrade anytime.

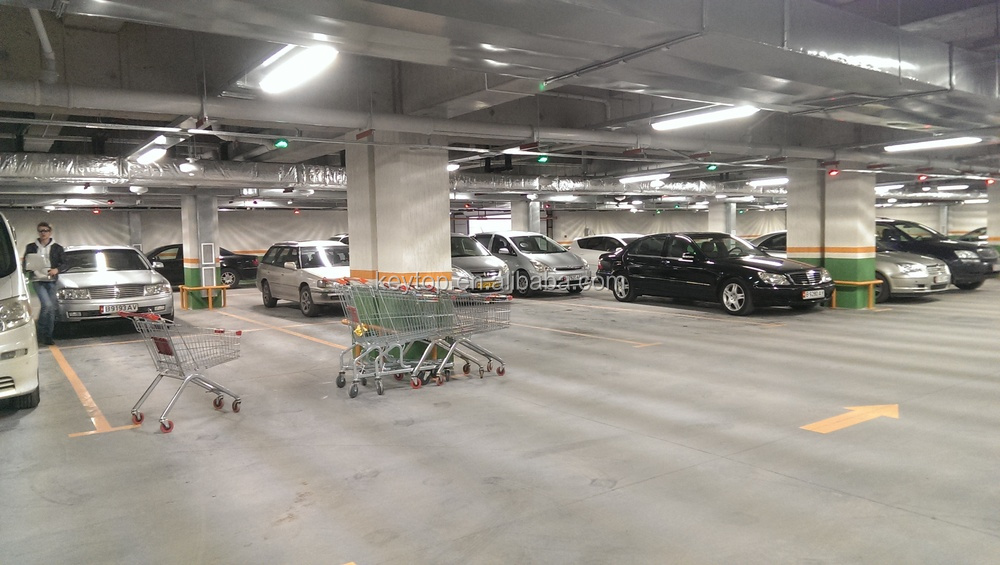

Grade 1.  parking guidance---install IP camera (including led lamp) at every parking space to detect  vehicle (red: occupied / green:vacant) and show available lots on led displays.

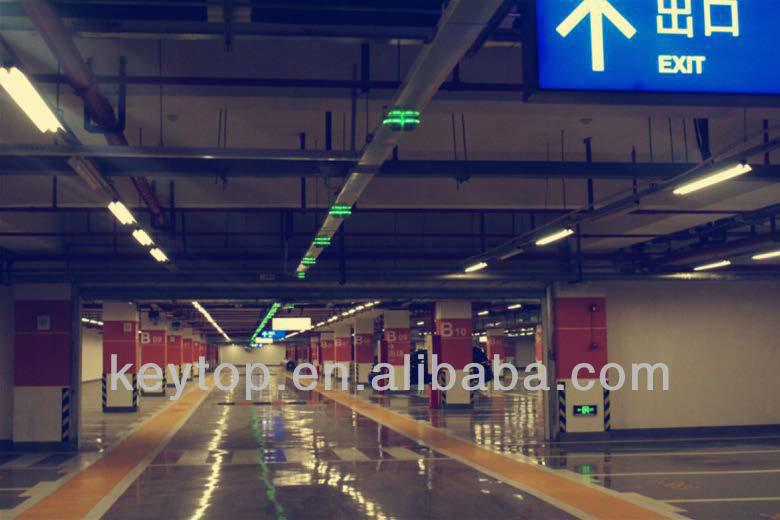

Every parking space is installed with IP camera to show status empty or occupied to drivers.Red led light for occupied,green led light for vacant.In the driving lane,there are indoor directional led signages to guide drivers which way should go.Parking guidance function helps customers at shopping malls,hospitals,airports find empty parking slot quickly,reduce parking time and fuel.




Grade 2.  parking guidance+car finding--- add license plate recognition (LPR) software to support car finding functionbased on grade 1,that is to show the best way to find the parked car on the carpark map of kiosk.

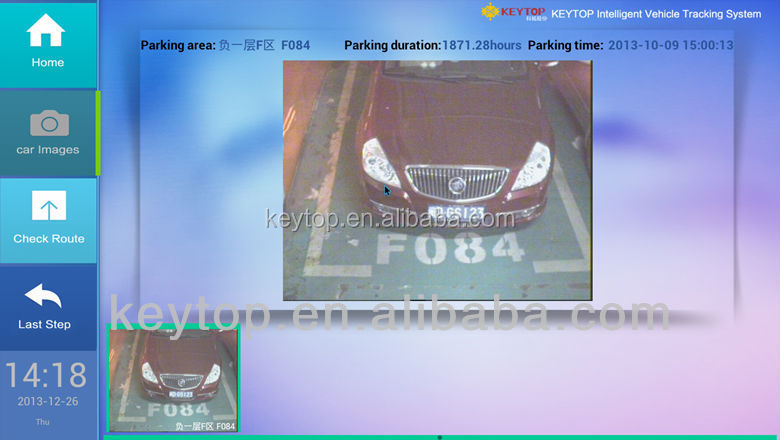

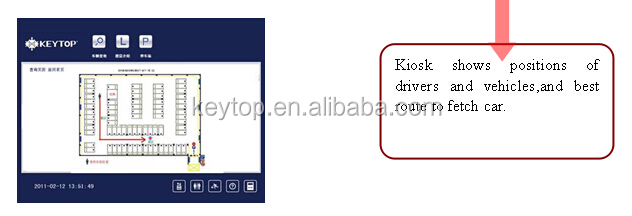

Based on the video and LPR technology,the system can help the driver find the accurate position of their parked vehicles by inputting license plate numbers on kiosk.A map will show them the best route to fetch cars.This function also can record entry/exit time of a vehicle into/from the car parks.




Grade 3parking guidance+car finding+security---add NVR based on the grade 2 to let the system has security function as CCTV.


IP camera and network video recorder  will record real-time video stream  on each parking space, the car park management can pulling the security tapes they need .


System Diagram

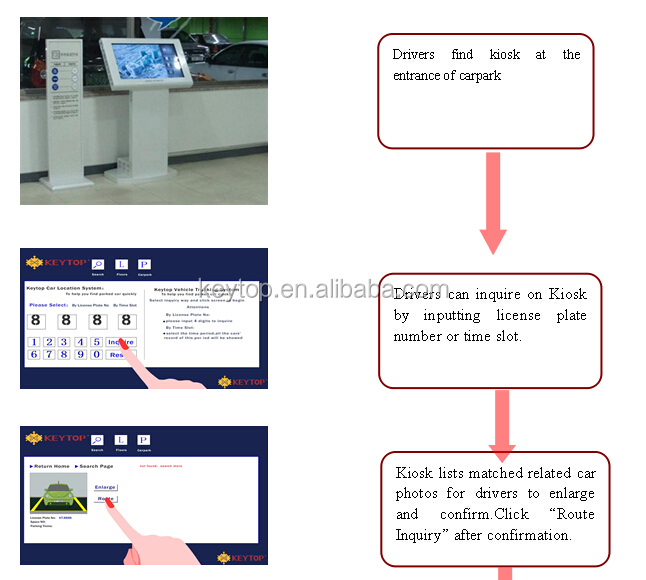

How to Find Cars by License Plates Number on Kiosk?




Related Products

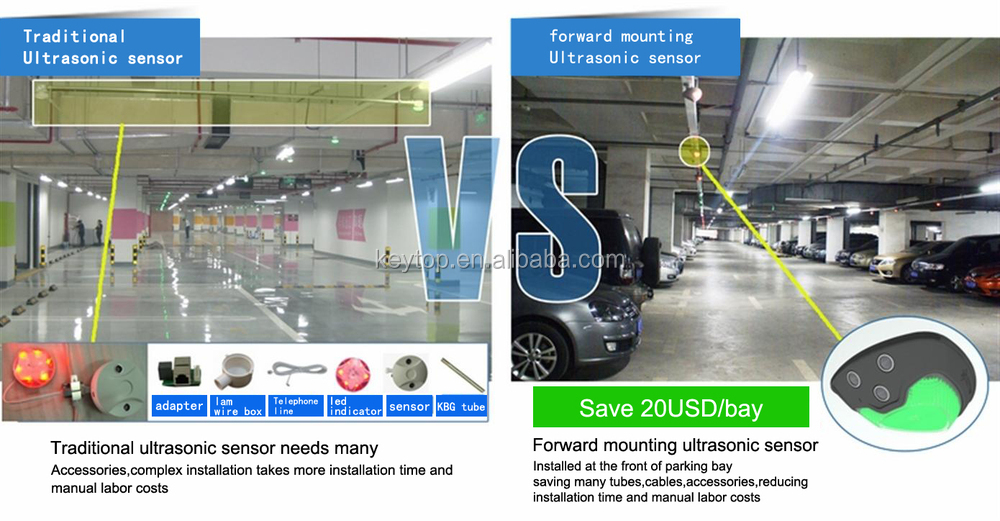

 Forward Mounting Sensor for Parking Guidance System
