RS485 protocol central control unit

FOB Reference Price:Get Latest Price
US $1-1,500 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
KEY-C02.1/C02.2
Warranty:
1 Years
Communication Way:
RS485 or TCP/IP
Input Voltage:
AC110~220V
Working Power:
2W
Communication Distance:
<1000 meters
Function:
Process data and release number of available bays
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton,1pc/ctn
Port
Xiamen
Lead Time :
within 7~30 working days against payment



Product Description

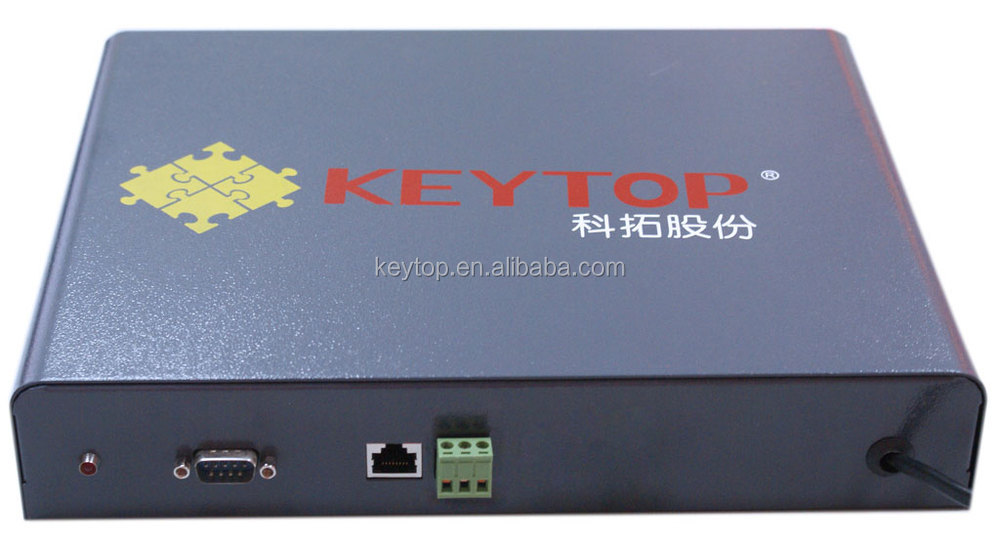

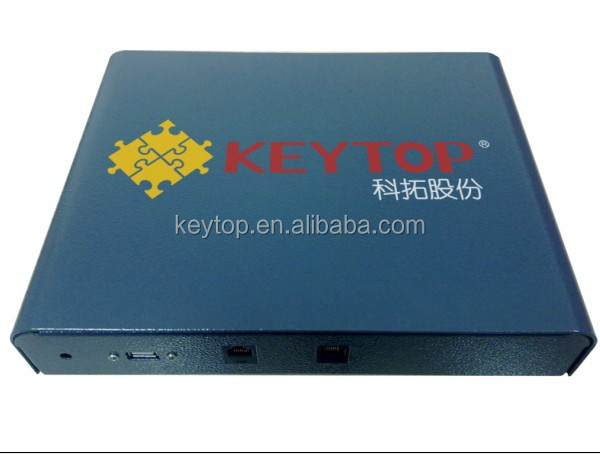

 Central Control Unit(CCU) is installed in the center control room of garage,its main function is processing real-time data from zone controller and releasing number of avaiable parking slots to led directional panels installed in the corridors or entrance of garage.Every central control unit can support 60pcs Zone Control Unit(ZCU) at most.



There are 2 kinds of Central Control Unit:

1.central control unit with web-based software

CCU 1.jpg



2.central control unit without software










System Diagram

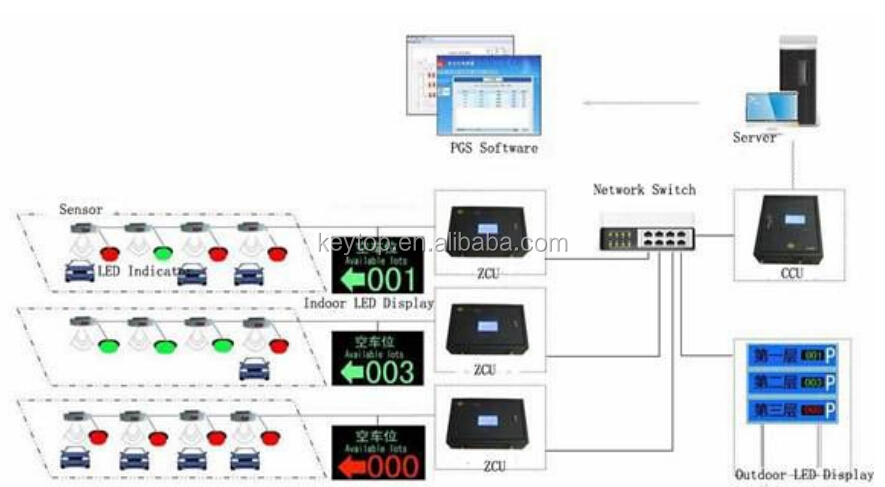

 RS485 Communication Way--Communication between devices are RS485

PGS System Diagram(RS485).jpg

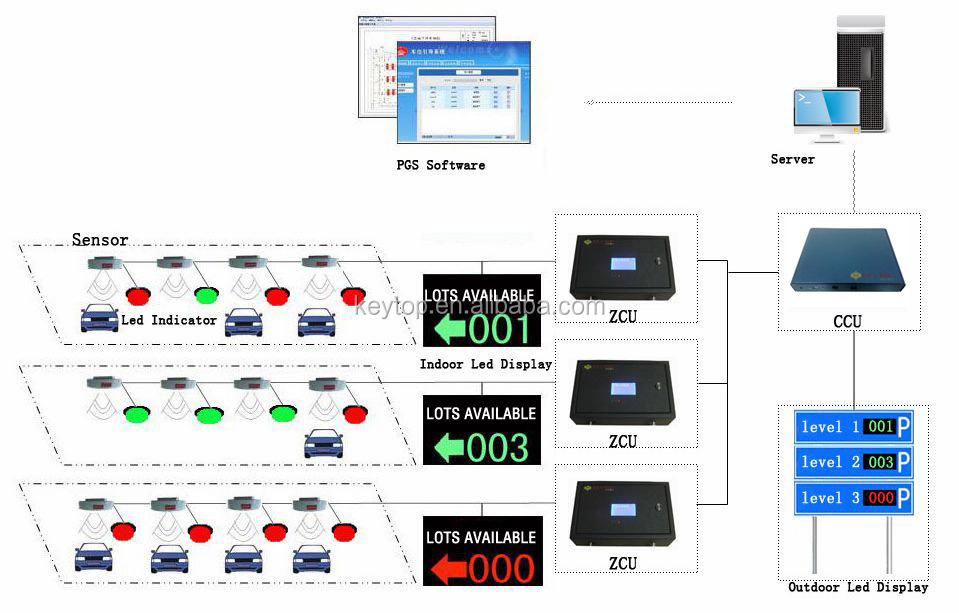

 TCP/IP Communication Way--Communication between ZCU to CCU is TCP/IP

TCP IP PGS SYSTEM DIAGRAM.jpg



Related Products

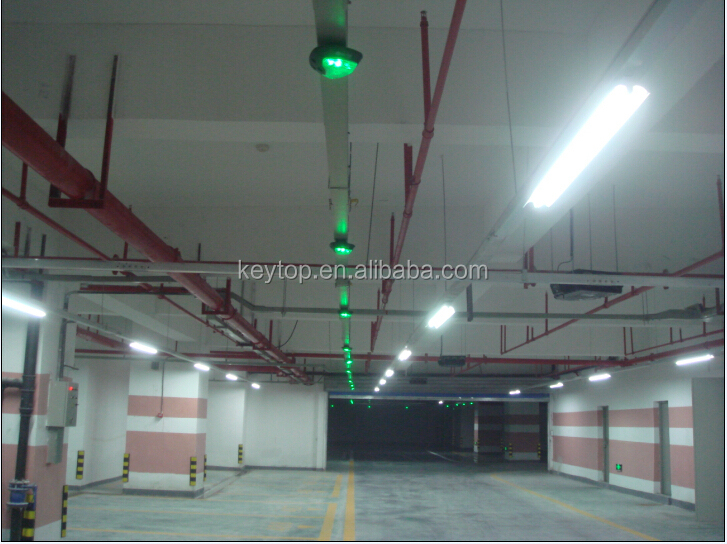

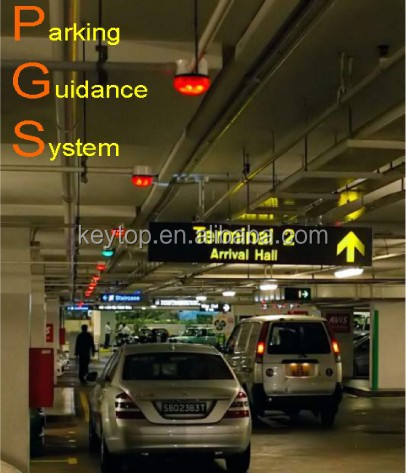

Car Parking Guidance System  It is an intelligent parking solutions to parking troubles. It uses of state-of-the-art technology which co-ordinates vehicle movement within the parking facility.Using real-time informationon occupancy,drivers are directed to available parking spaces by intersection guidance displays and colourcoded LED lights green for available, red for occupied,blue for disabled placed above every parking bay.

  vertical rotary parking system/smart car parking system/keytop parking guidance systems



Related Products

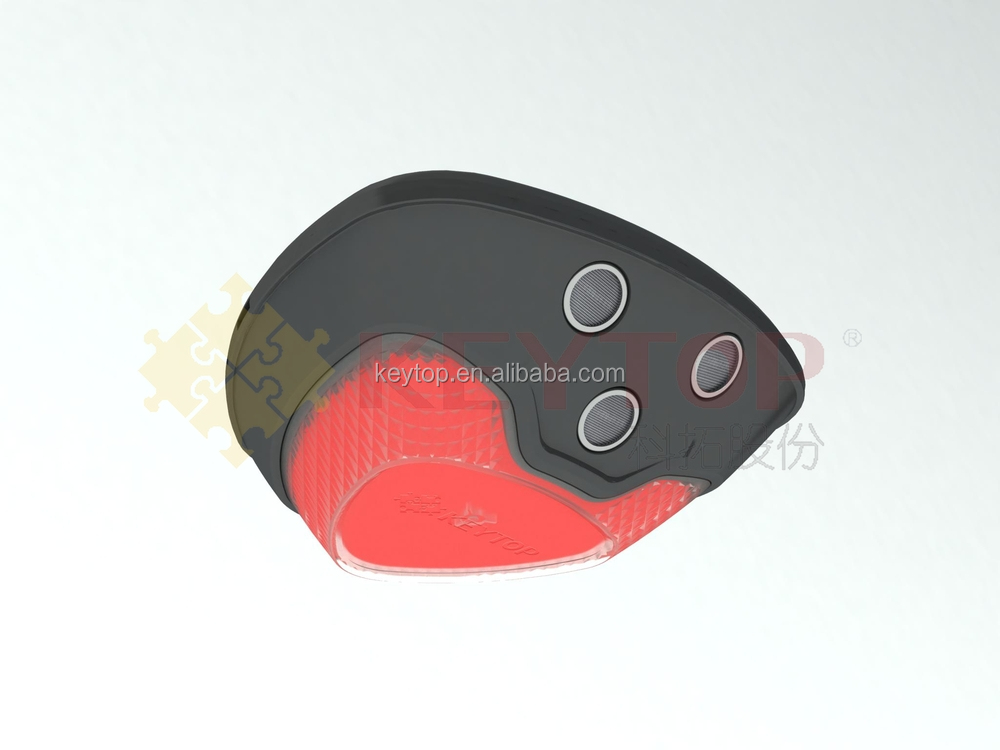

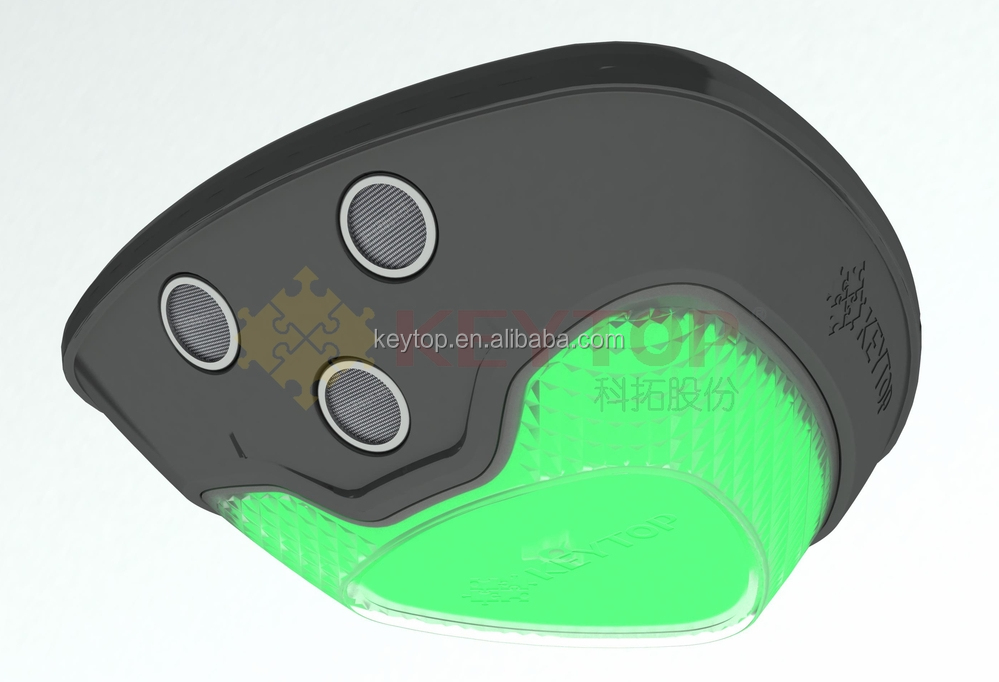

Forward Mounting Sensor(2 in 1)    KEY-TS07

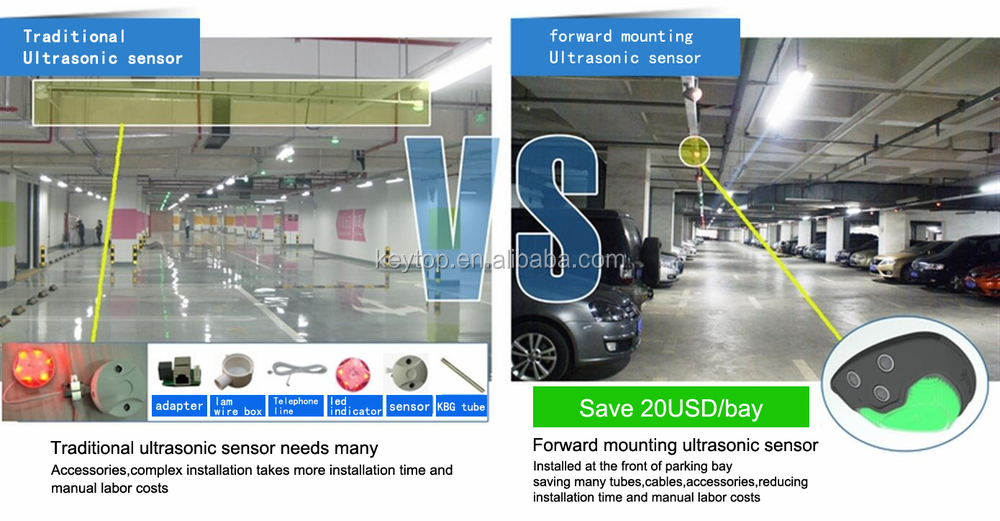

Forward mounting sensor is the 3rd generation ultrasonic sensor developed by KEYTOP.It is integrated with led indicator as one unit and supports to be installed at FRONT of parking bay.











Projects Reference



Projects Reference

Singapore Changi Airport(3850 bays)



Poland Krakow Airport
