Quick Details

  • Type: parking guidance system
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Model Number: KEY-C02.1
  • Warranty: 1 Years
  • Usage: Collect and process data
  • Input Voltage: AC110V~240V
  • Working Current: 0.7A
  • Communication Way: TCP/IP,RJ45 network port
  • Power Rate: 4.8W
  • Dimension: 28.3*22*2.3cm
  • Parking Management Software: Web-based,English version
  • Capacity: Support 60 node controller

Packaging & Delivery

Packaging Details standard export carton,1pc/ctn
Delivery Time 7~30 working days after payment received



Product Description

 Central Control Unit(CCU) is the core part of parking guidance system,it is embedded with B/S structure parking monitor software,which can be visited from web and its data is available for saving 2 years.

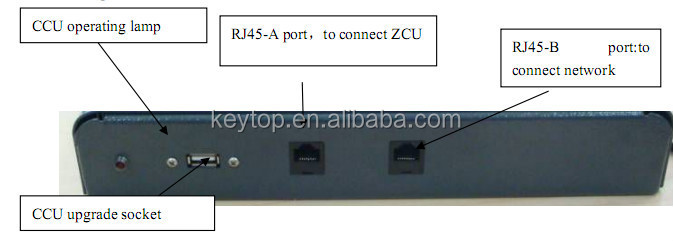

The main function of CCU is to scan and process parking information data of ZCU and update Led display's real-time number of available parking spaces by RJ45-A.RJ45-B is to connect network cable.











Related Products



Product Overviews

  Parking Guidance System simplifies the way parking works through assisting the driver by giving them the correct information when trying to find a parking lot. The main function of Parking Guidance System is that, it helps the driver to find free parking space on different layers and sections quickly by using LED displays and LED indicators to show the real time information to the vehicle owners





Main Devices

Ultrasonic Sensor

Parking Space Indicator(green,red or blue)

Node Controller(ZCU)

Central Controller(CCU)

Indoor LED Display

Outdoor LED Display



Applications: indoor carports of hotels,hospitals,museums,tall buildings,airports,big shopping centers,etc.

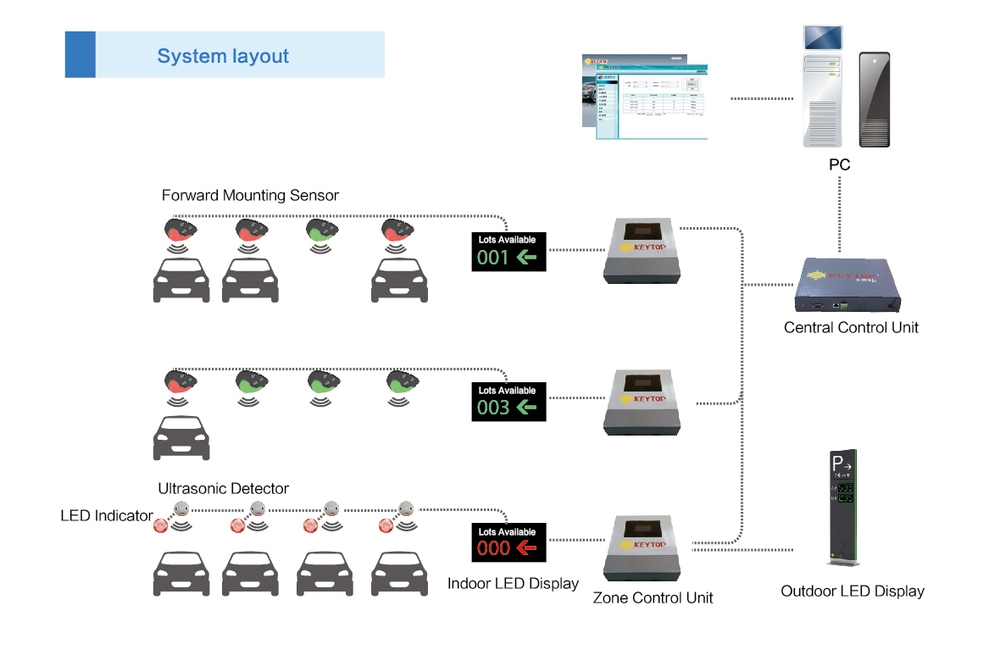

Working Procedure

 a. Installed at each parking lot, vehicle ultrasonic sensor is used to detect and indicate the real-time parking

space status. With LED light connected to it, drivers are directed to available parking slot by colour-coded

LED light,green for free, red for occupied,blue for disabled.



b. Meanwhile, the real-time parking space status will be transmitted to zone control unit. Zone control unit

will collect and send them to central control unit.



c. Central control unit will receive and make data-processing,then forward the processed data to LED display

to submit the current amount of available parking slots by word, number and arrow, hence to guide driver

park.







Advantages

For Drivers:

1.No nerve-racking search, stress-free parking.

2.Save parking time

3.Save fuel and alleviate car wearing.

4.Avoid unnecessary conflict during parking.



For Operators:

1. Easy to install and maintain

2. Reduce labour cost in manageing the garage

3. High parking space utilization

4. Allow customers to park in a stress-free environment.

5. Reduce traffic congestion indoor.







Projects Reference
