car parking led indicator/occupancy pilot led indicators/parking space indicator

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Place of Origin:
China (Mainland)
Brand Name:
KEYTOP, KEYTOP
Model Number:
KEY-B02.1
Warranty:
1 Years
Voltage rating:
DC 5V
Current rating:
40mA
LED luminance(Green/Blue):
9000mcd
LED luminance (RED):
5000mcd
LED number:
6RED 6Green/Blue
Working temperature:
-50~+80℃
Visual angle:
360
Visual range:
>50m
Life:
30,000h
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Caton, 100pcs/carton
Port
Xiamen,China
Lead Time :
within 20 working days against payment

Specifications

1.electronic projects for cars
2.parking helping device installed at metal bridge
3.work with ultrasonic parking sensor
4.CE





1. The main function of Parking LED light in PGS:

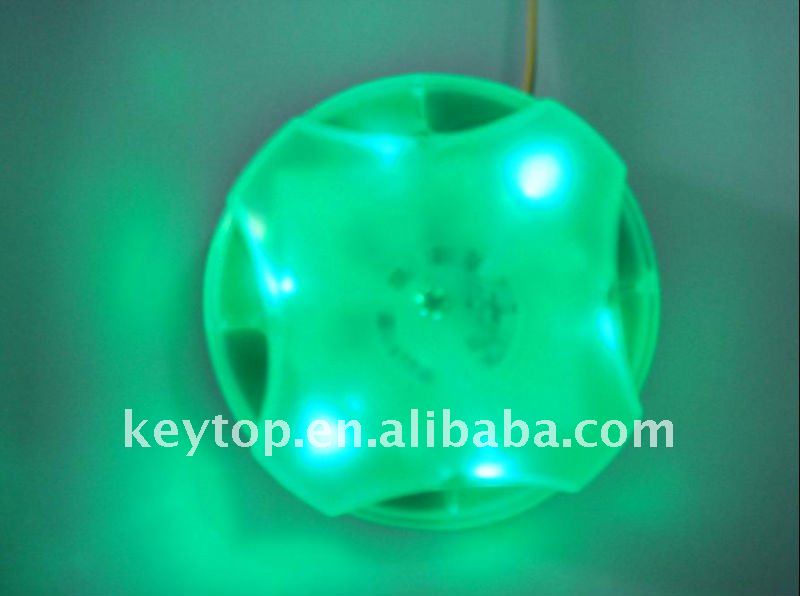

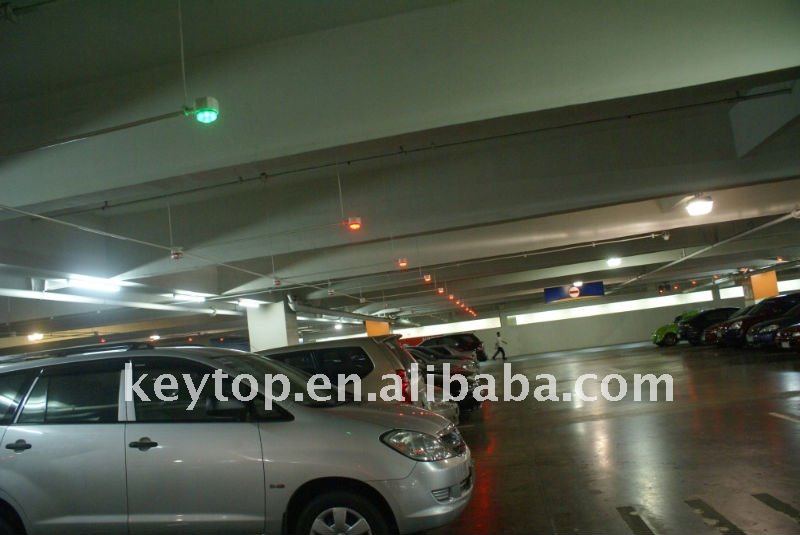

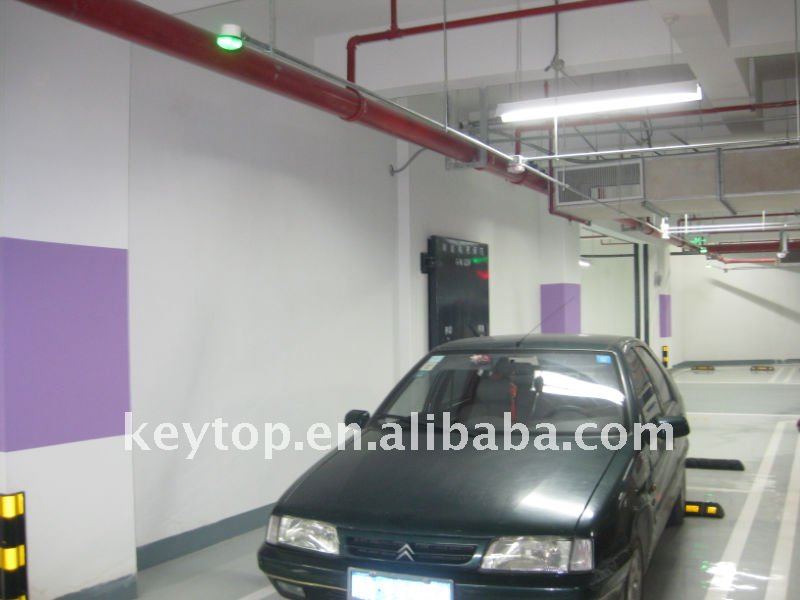

Controlled by the ultrasonic sensor, the main usage of the LED indicator is to show the current parking space status in real time. When the space is occupied, it shows red; And if there is no car in the vehicle, it turns green. Hence, after drivers entering to the carpark, they could find the avaiblable parking space quickly under the guidance of the LED indicator.



There are three colors for your choice, red, green and blue. Color blue is specially used for disables to guide them parking convinently.



Green-Free




Red-Occupied




Blue-Disabled






2. How Vehicle Parking Guidance System Works:



Firstly, ultrasonic detector takes uses of ultrasonic wave to detect the parking space to see if it is occupied and transfer the relative commands to LED indicator which will turn from gree to RED when occupied, or it will turn GREEN. Meanwhile, the UD transmits its status message to ZCU immediately, and ZCU will collect and forward the information to CCU. CCU processes these data and sendsthe relevant commands to ZCU and LED panel.



network cable system structure.jpg
