parking space occupancy sensor addressable

FOB Reference Price:Get Latest Price
US $1-40 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Height (mm):
100
Width (mm):
23
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-TS06
Warranty:
1 Years
Usage:
Parking space detection
Working Voltage:
DC12~24V
Size:
100*23mm(diameter)
Working Current:
10mA
Working Temperature:
-40 centigrade~+80 centigrade
Communication Distance:
≤1000m
Detecting Range:
0.1~3.5m
Baud Velocity:
4800bps
Detecting Area:
0.4㎡
Max Error(distance):
0.1m
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Carton, 100pcs/carton
Port
Xiamen,China
Lead Time :
within 20 days after payment

Specifications

parking sensor
1.CE Certificate
2.Easy install,low wire costs
3.Metal bridge installation
4.Support RS485,LAN,Wifi



Installed place: right above every parking lot





Components: detector body and bottom stand



Working principle: collect real-time parking data by the ultrasonic distance measuring, control the display of LED indicator, pass real-time lots information to ZCU through RS485 network.


Applications:
hotel;
hospital;
big shopping center or mall;
tall commercial buildings,etc.

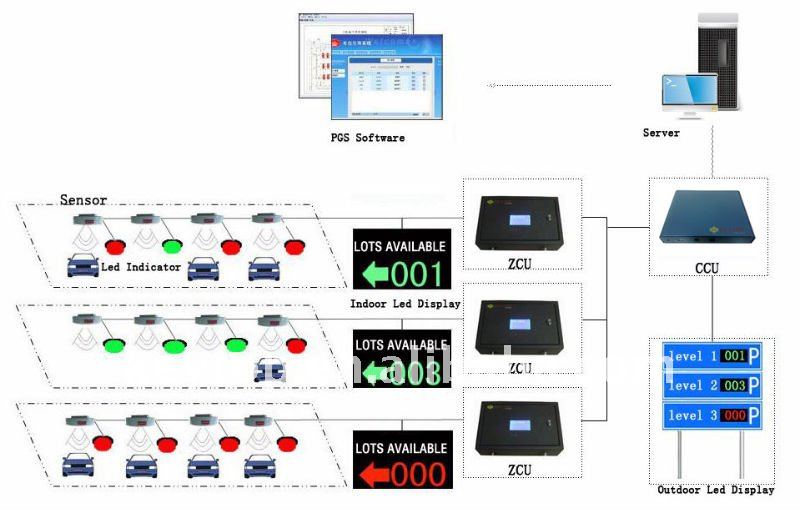

How does KEYTOP parking guidance system work?



  • Ultrasonic detector is installed right above each parking space to collect real-time parking status,meanwhile,ultrasonic detector will send commands to LED indicator to control its color change,turn red when parking space is occupied,green when vacant.



  • ZCU will scan the detectors which is under its contol to collect data,then send to CCU.
  • CCU will send commands to LED display after data processing to show the vacant parking space quantity.

  RS485 PGS.jpg





Advantages of KEYTOP parking guidance system:







1.trial and EM orders are welcome



2,ISO9001 and CE certificate



3.more than 7 years' experienceof projects implementation,over 700 cases located in 36 countries including USA.



4.first sale volumn in China,keeps more than 65% since 2007



5.use network cable as connection wire,easy installation,low wire cost



6.automatically storage: recover  the data automatically when repower on,not need reset mannually



7.web edition software support hte management of parking lot anywhere anytime



8.support RS485,TCP/IP



9.pluggable connection,with high stability



10.support offiline checking: can check the detector status via LCD of ZCU
