KEYTOP RS485 protocol ultrasonic parking space detector

FOB Reference Price:Get Latest Price
US $1-40 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Height (mm):
100
Width (mm):
23
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-TS06.1
Warranty:
1 Years
Application:
Parking Guidance
Working Voltage:
DC12~24V
Size:
100*23mm(diameter)
Working Current:
10mA
Working Temperature:
-20~+80℃
Communication Distance:
≤1000m
Detecting Range:
0.1~3.5m
Baud Velocity:
4800pbs
Detecting Area:
0.4㎡
Max Error(distance):
0.1m
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Carton,100pcs/carton,575*460*220mm,11.6KGS/CARTON
Port
XIamen,China
Lead Time :
within 15 days after payment
Product Description
Product Name
Ultrasonic Detector
Model
KEY-TS06.1
Working Life
>8 Years
Application
Parking Guidance
Working Voltage
DC12~24V
Certification
CE
Working Current
10mA
Warranty
3 months to replace,1 year to repair
Communication Way
RS485,4800bps
Communication Distance
<1000m
Detection Range
0.1~3.5m
Detection Area(3.5m)
0.4㎡
Casing Material
ABS
Size
100*32MM(Diameter)
Installation Height
2.0~3.5m
Max. Distance Error
0.1m

Description

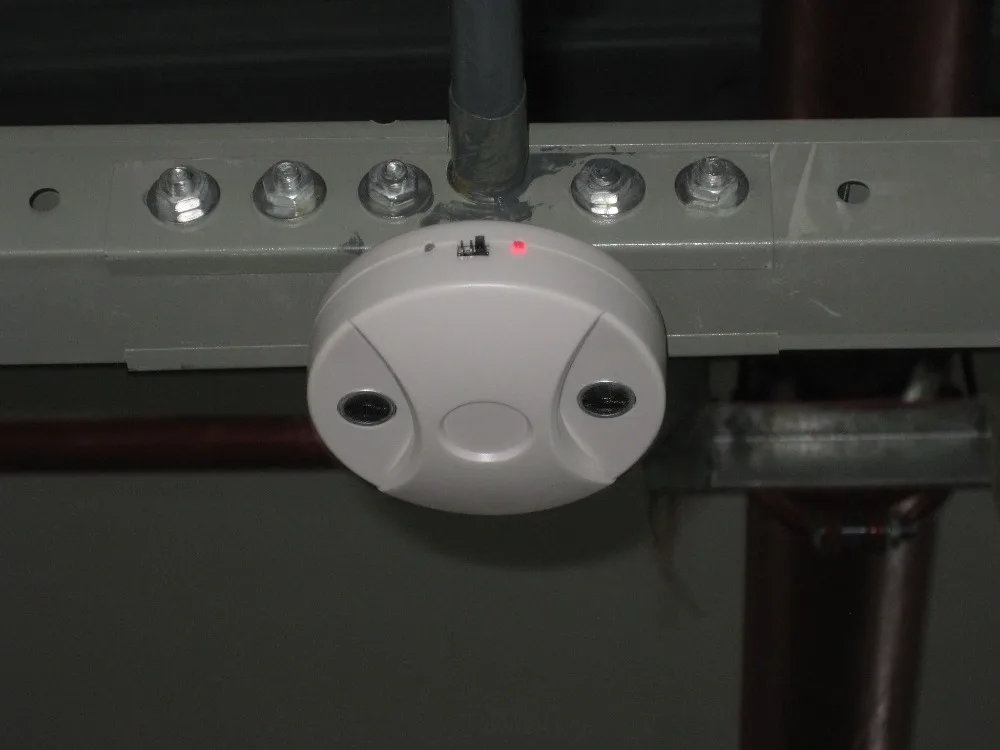

Ultrasonic detector is installed in the middle of every parking space.It collects real-time parking status by ultrasonic distance measuring,controls the display of LED indicator,sends real-time parking data to ZCU(Node Controller) through RS485 network.

Detailed Image

Features and Advantages

1. High accuracy to identify every spot.

2. Helpful to save parking time and less pollution from vehicles.

3. Simple structure convenient for installation and maintenance.

4. Stable information transmission ensure a reliable communications.

5. Low power dissipation provides a long-time use life.

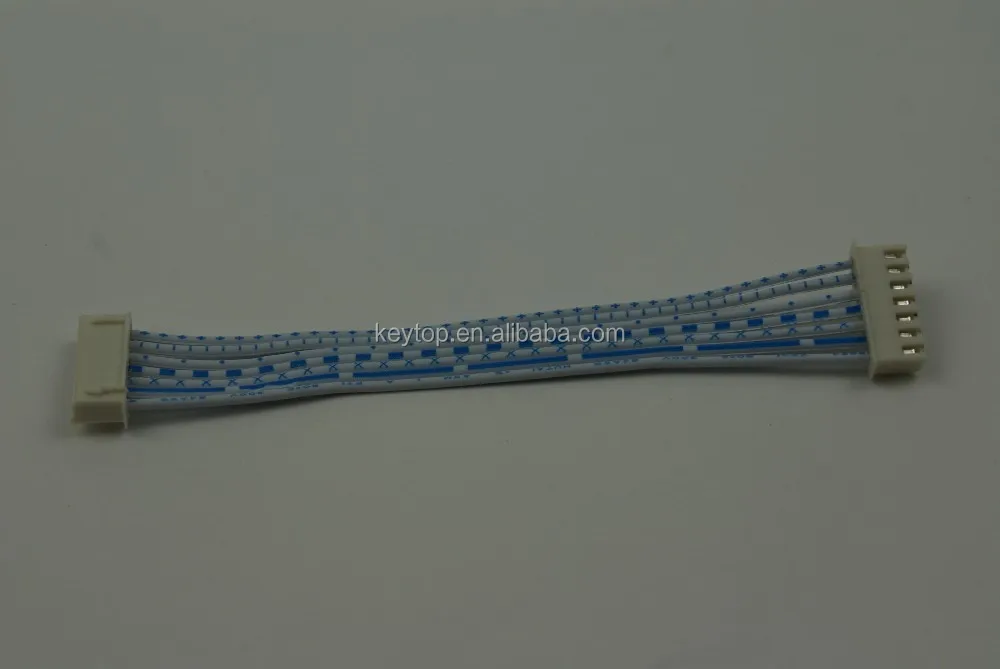

6.User-friendly design with one-stop accessories for fast installation.Accessories such as plastic seat,adapter plate and 7P blue/white wire connection are free of charge.
