KEYTOP Camera based Car Finding System

FOB Reference Price:Get Latest Price
US $40-1,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Warranty:
1 Years
Working voltage:
AC110~240V
Display:
LCD
Display Size:
19 inch
Max.Resolution:
1440*900
Power:
50W
Network port:
RJ45,RJ11
Working temperature:
-15~55℃
Usage:
Parking guidance&vehicle tracking
SupplyAbility
SupplyAbility:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Carton
Port
Xiamen,China
Lead Time :
within 30 days against payment
Product Description

Camera based Car Finding System


Based on advanced video processing technology,car finding system provides the interface for car park customers to input their car plate no. on the parking kiosk and help them quickly find location of cars.Besides,it combines the parking guidance function,which can guide drivers to vacant parking spaces fast.
Main Functions

1.Car Parking Guidance

Guide the car park customers to the available parking spaces by Green/Red LED indicator and real-time indoor LED guidance display.

2.Find Your Car

With built-in LPR technology,the system indicates the exact location your car is parked by inputting car plate number.Also show the best shortest route to pick up cars.

3.CCTV Security

Parking manager can monitor the real-time video or replay the video of each parking space according to their needs.This function can be widely used in collecting evidence of scratched car,vehicle theft etc.

How to Find the Car

Step 1

Find the nearest kiosk and enter into “car finding” application.

Step 2

Input your car plate number and click “ok” to inquire.

Step 3

System will list out photos and car plate numbers similar to yours for you to choose.

Step 4

After you find your car and click on “ok”.System will show the best shortest route for you to pick up car.

Benefits

Car Park Customers

Encourage their return visit of car park
Avoid conflicts of getting a parking space
Not more worries about location of their cars
Save time in searching vacant parking spaces
Enjoy a better comfortable parking environment

Car Park Manager

Increase parking revenues
Reduce labor management costs
Make the full use of every parking space
High security surveillance and reports for real-time monitor

System Diagram
Main Components

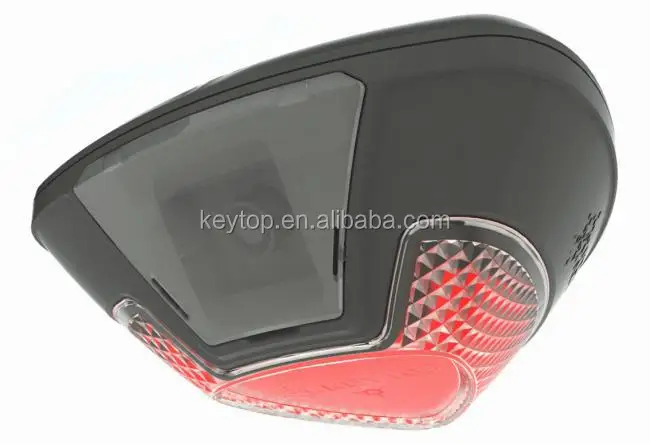

Video Detector

Installed in front of and opposite to every parking space to capture real-time images from each parking space,show real-time parking status and guide drivers to the nearest available parking spaces.

Parking Kiosk

Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of themselves and their parked cars.With big LCD advertising screens for car park owners to make advertisement and increase parking revenues.

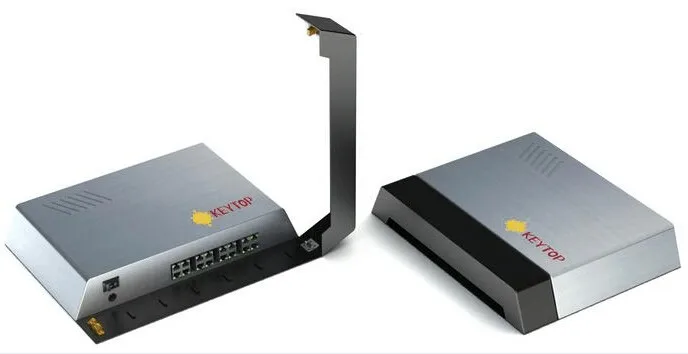

Network Controller

Composed of switch modular,power modular and switch board.Network controller is to sum up all parking data from video detectors and transmit them to server,then transfer commands from server to LED display.It has 12 connection ports for video detectors and 4 RJ45 network port.

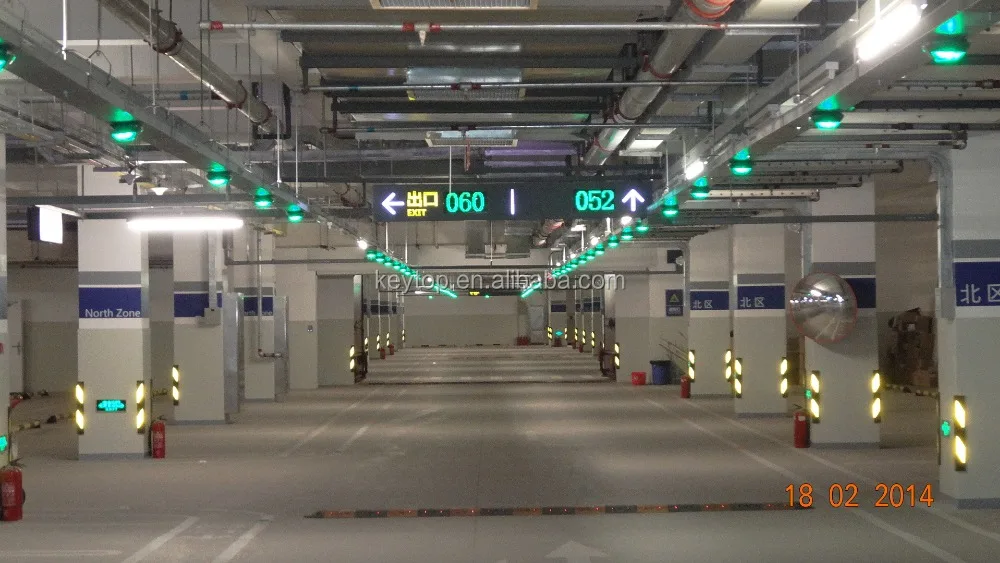

LED Display

LED display is installed at the main entrance or crossings of car park to show real-time available parking spaces of related floors or the whole car park.

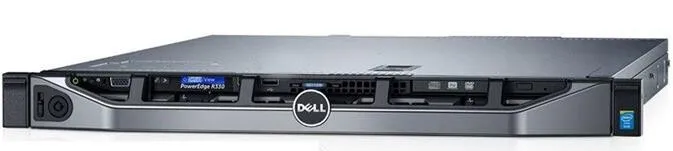

Server

(1)store images data of parking bays,get parked positions of vehicles,release information on kiosk for drivers to inquire cars locations
(2)Backstage inquires parking occupation in the database and makes statistics of data each led display needs to update,controls display of led guidance screen
(3)with vehicle tracking system software,convenient for administrator to manage

Parking Management Software

Include backstage software,LPR software and SQL database.It is mainly for configurations for LED display,kiosk and maps.Also provides various reports for car park owners to monitor the usage of the whole car park.
Based on C++ and ASP,Use MYSQL large database,with good stability and security,Run on Windows operation system stably

Packing & Delivery

All equipments are strictly inspected and have aging tests before package.

Well-proted inside with individual white box and plastic bag

Durable standard export carton for long transport and rough handling

Success Stories

Xiamen Gaoqi International Airport T3 Terminal(Aug.2015)

Xiamen Gaoqi International Airport is located in Huli District,Xiamen City.As the civil 4E grade international airport,it is an important regional airlines hub along the southeast coast.T3 terminal has been put into use since Nov.1996,total area of terminal is 23.780,000 square meters,destinations to 109 cities,covering 182 routes in and out boundary.There are total 1075 parking spaces at T3 terminal,in 2012 they were installed with Keytop ultrasonic parking guidance system.In 2015,these parking spaces are upgraded to the camera based car finding system to provide fast guidance and car finding services.It shortens the time for customers and improves the image of the airport.

China Central Television Building(Sep.2013)

As the biggest public cultural facilities in China,China Central Television Building is an important part of 2008 Beijing Olympic Games.The construction work of intelligent parking has drawn a lot of attentions of people in all social circles.With advanced technical concepts and rich implementation experience in national car park applications,Keytop finally won this tender from fierce comptitions.All the 1353 parking spaces inside this car park are installed with Keytop vehicle tracking system to guide drivers to vacant parking spaces quickly and help them locate the cars by inputting car plate numbers.

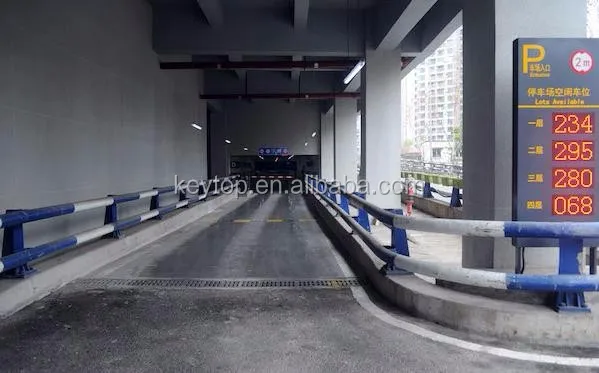

Chongqing Viaduct Parking Building(Mar.2017)

The 1st viaduct public parking building in Chongqing city is total 37,600 squre meters,225m length,70m width and 22m height.It’s the 1st project that Chongqing municipal goverment taking advantages of room under viaduct.This car park has total 4 floors 1008 parking spaces,installed with Keytop vehicle tracking system and ticketless parking management system,it effectively relieves the parking pressure around this area and realizes unmanned car park management.
