Intelligent Parking Lot Management Autopay Payment Kiosk

FOB Reference Price:Get Latest Price
US $6,000-10,020 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Parking Management System
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Model Number:
1 Years
Product Name:
Payment Kiosk
Parking Payment
Power Consumption:
LCD Screen:
10.1 inch
Communication Way:
Optimum Resolution:
Swipe Card Modular:
Stc+RS-232USB port
Scan Modular:
USB port,RS-232 communication
Unionpay Modular:
RS-232+Network port communicaiton
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Carton
Lead Time :
within 20 working days against payment
Product Description

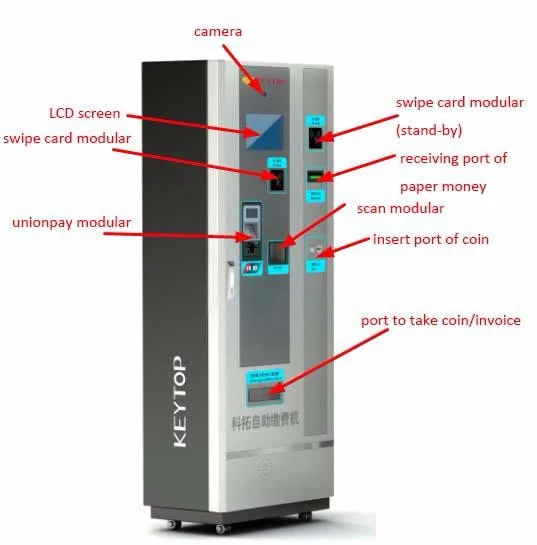

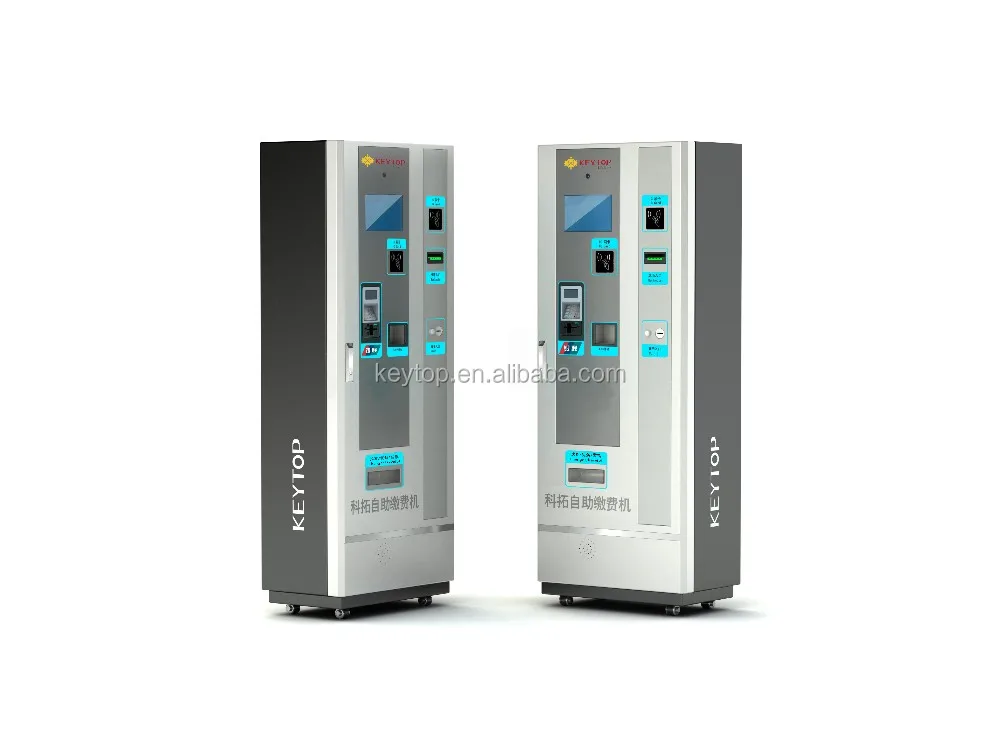

KEYTOP Intelligent Car Parking Payment Kiosk

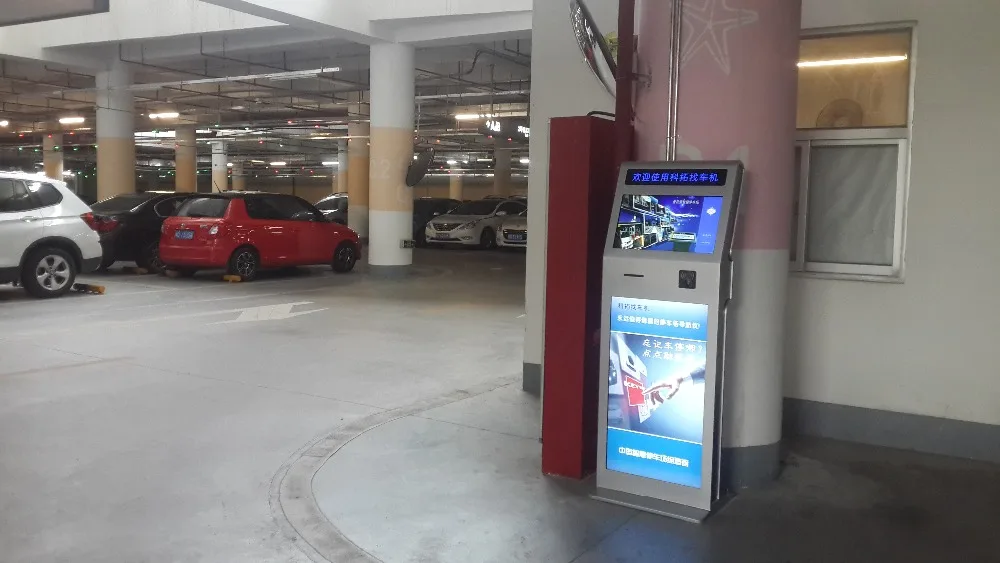

This parking payment kiosk is installed inside the car park to provide self-service payment.Integrated with 10.1 inch LCD screen on the machine,it is easy and user-friendly for every car park driver to input car plate no. and pay parking fees automatically before they return to their vehicles.Prepay can fasten the exit speed and improve rotating rate of the car park.

It supports various payment ways such as coin,paper money,credit card,wechat,alipay,etc.It replaces the manual operation for collecting parking fees,lowers the management costs for car park owners and realizes the unmanned management.

Technical Parameters
Product Name
Payment Kiosk
Parking Payment
Power Consumption
Hard Disk
LCD Screen
10.1 inch
Optimum Resolution
Communication Way
Working Temperature
Low-consumption Main Board
6 COM port,6 USB port,1 LPT port,2*1000M network port(integrated sound card,graphics card,network card,USB)
Touch Screen Modular
10.1 inch infrared ultra touch screen,safety surface with resistance to dust,fouling and riot.Precise positioning without float,resolution<0.33mm,operation sensitivity<150g, response speed 20ms
Receipt Printer
RS-232 port,thermal print,auto paper-cut,alarm of use-up,alarm of paper jam,black label detection,print width: 79mm,80mm,adjustable paper holder,roll paper diameter:120mm
Whole Chassis
Lobby type metal cold-rolled sheet chassis,conform to physical engineering design,user-friendly.Have gone through treatments of moisture proof,,anti-rust,anti-acid,dust proof and anti-statics.
Audio Speaker
Software Control,USB Microphone
Invoice Printer
RS-232 port,thermal print,auto paper-cut,alarm of use-up,alarm of paper jam,black label detection,print width:55mm,79mm,adjustable paper holder,roll paper diameter:120mm
Swipe Card Modular
Stc+RS-232USB port,detection distance≤30mm
Scan Modular
USB port,RS-232 communication,support barcode scan
Unionpay Modular
RS-232+Network port communicaiton,support unionpay card to swipe and insert
Main Benefits

1.Realize prepay before leaving car park

2.Help improve exit speed within car park

3.Increase car park usage rate

4.Save car park management cost

5.Optimize car park environment

6.Enhance on-site air quality

7.Encourage car park customers to return visit

Function Features

 . Support receiving coins,paper money,realize automatic charge
. Automatic parking fees calculation and collection
. Support credit card payment or mobile app payment(alipay,wechat)
. Thermal printing for transaction receipt, supporting integral account checking function
. User-friendly and easy to operate
. Modularized design, convenient for on-site change and maintenance
. Multiple alarm accesses
. Based on License Plate Recognition of car plate no. more safety and accurate
. Support RJ45 network communication
. Support extensible function such as locate the vehicles

Other Products

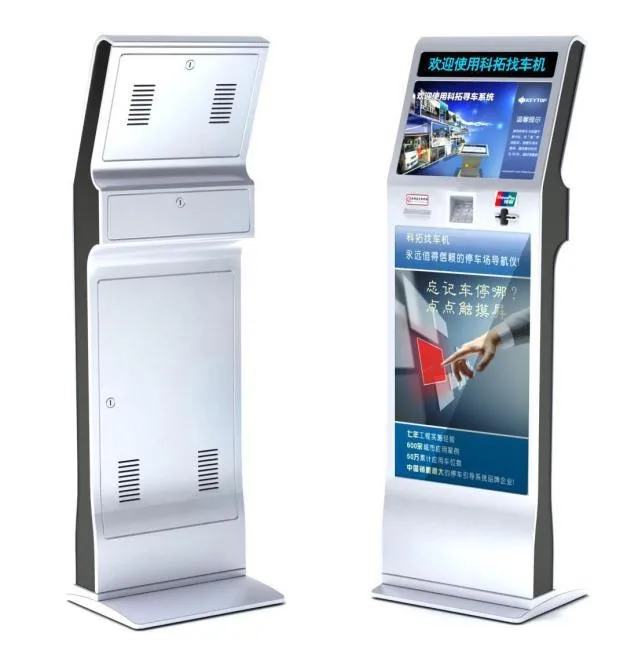

Smart Car Finding Kiosk

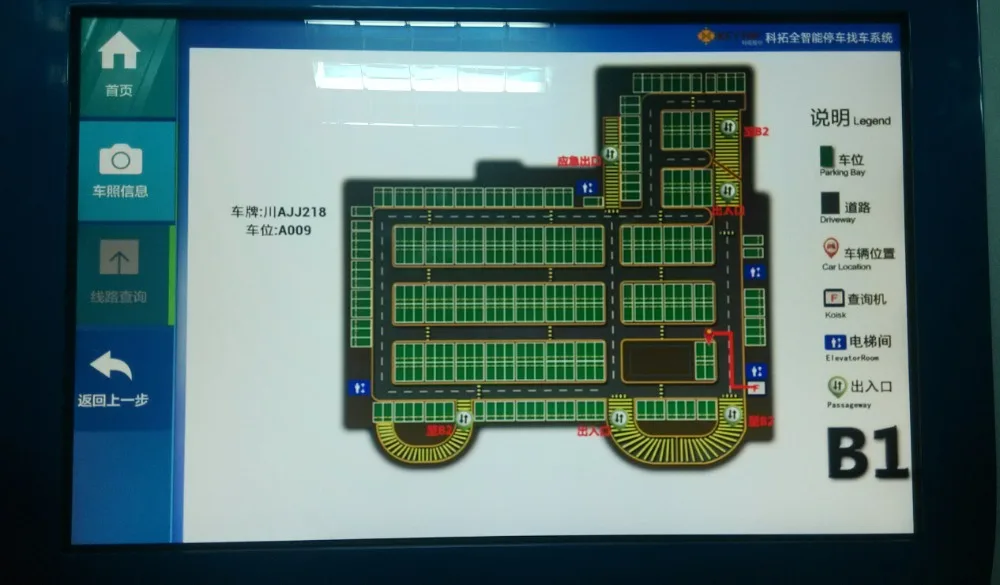

Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of themselves and their parked cars.If not showed on the map,drivers can proceed with fast inquiry to select by parking time,to display photos of all vehicles parked during the selected parking time.

Success Stories

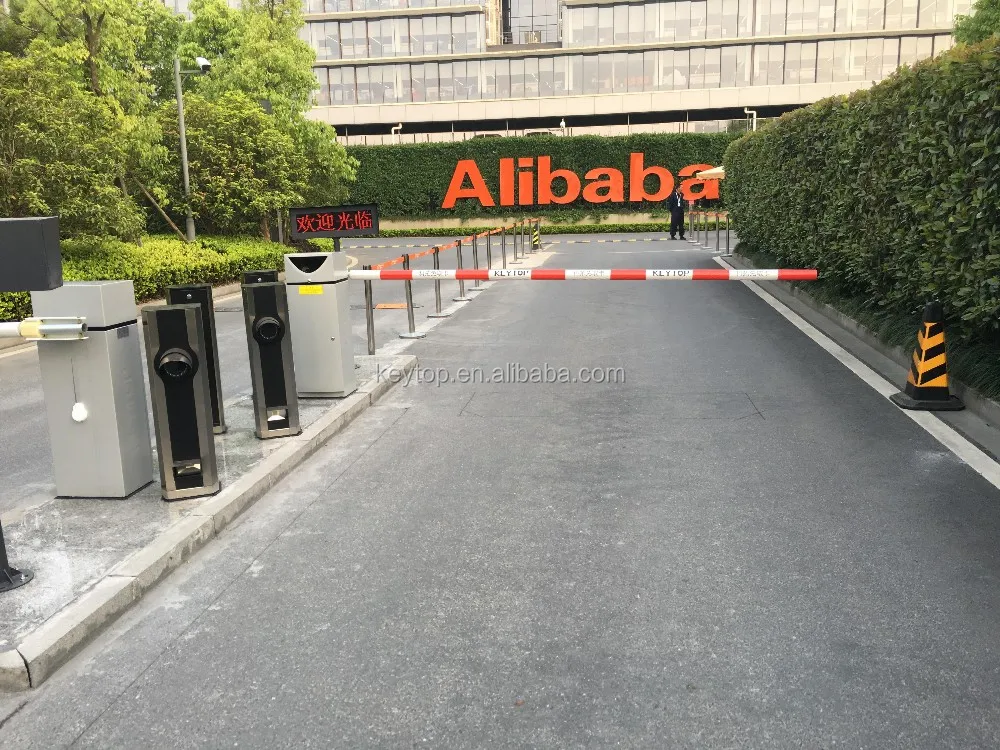

Alibaba Hangzhou Head Office

Alibaba Group is the famous internet company in China,its headquarters is located in Hangzhou city.Since its operation in 2013 there is stationed with more than 20,000 employees.This car park previously was installed with bluetooth long range RFID card,drivers had to take card at entrance and swipe card at exit.It has caused heavy traffic jams during peak hour.In the year 2015,Alibaba Group decided to take Keytop Ticketless Parking Management System.This solution is based on ANPR software recognition,it reaches 99.5% reading accuracy and enables the daily pass 12,000 times/day in order.

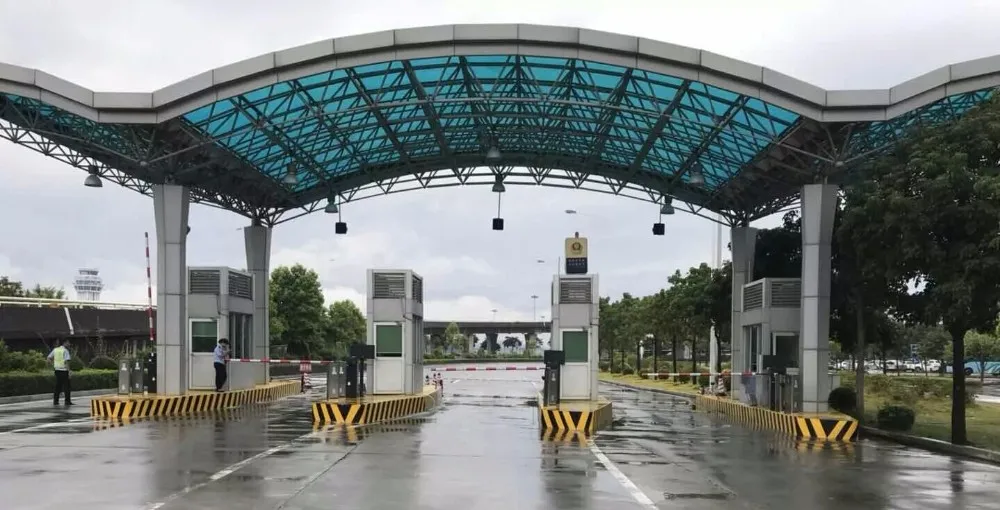

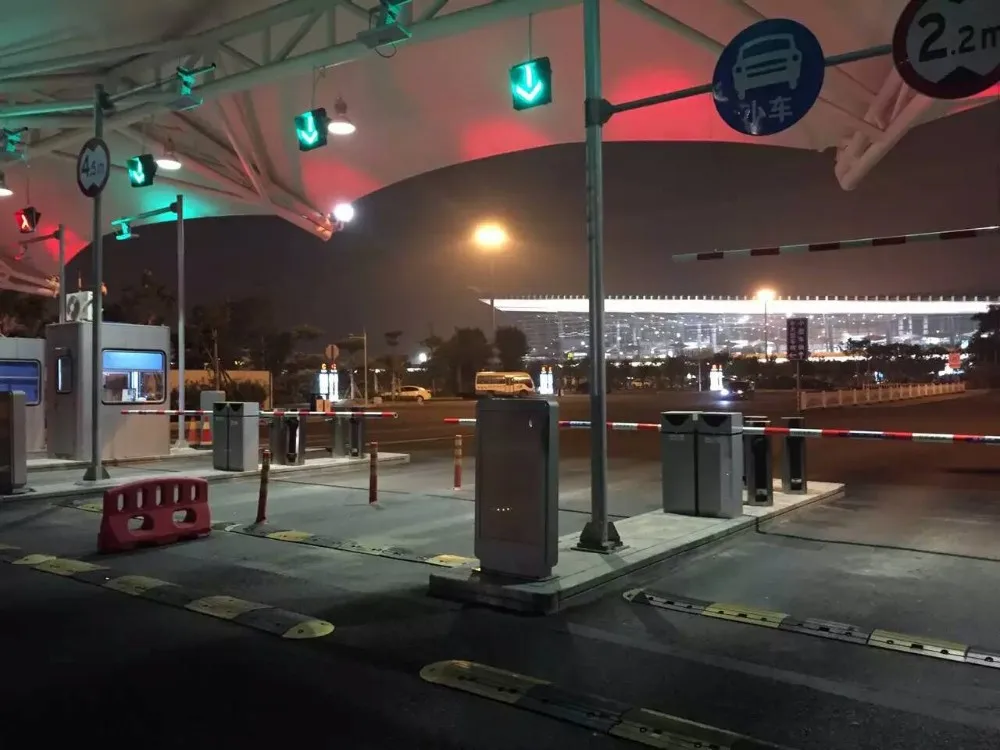

Guangdong SWA Airport

SWA airport is located in Jieyang City,Guangdong Province,it has been put into use in the year 2011.It has 7 entrance 5 exit, all of these lanes are installed with Keytop Ticketless Parking Management system.It supports multiple payment ways such as WeChat,Alipay,autopay station,parking booth station,etc.

Xiamen Gaoqi International Airport

Products Line

Ultrasonic Parking Guidance System

Parking guidance system is an intelligent parking solution developed by KEYTOP.Ultrasonic detector is installed above every parking space to detect real-time parking status and send signal to LED indicator for showing green for vacancy,red for occupancy.Inside the car park,there are installed with indoor LED display to tell drivers which direction to go.

Video Detector based Car Finding System

Keytop Car Finding System combines parking guidance and car searching functions together,not only guides drivers to find certain free parking space quickly,but also guides them to find their parked cars.

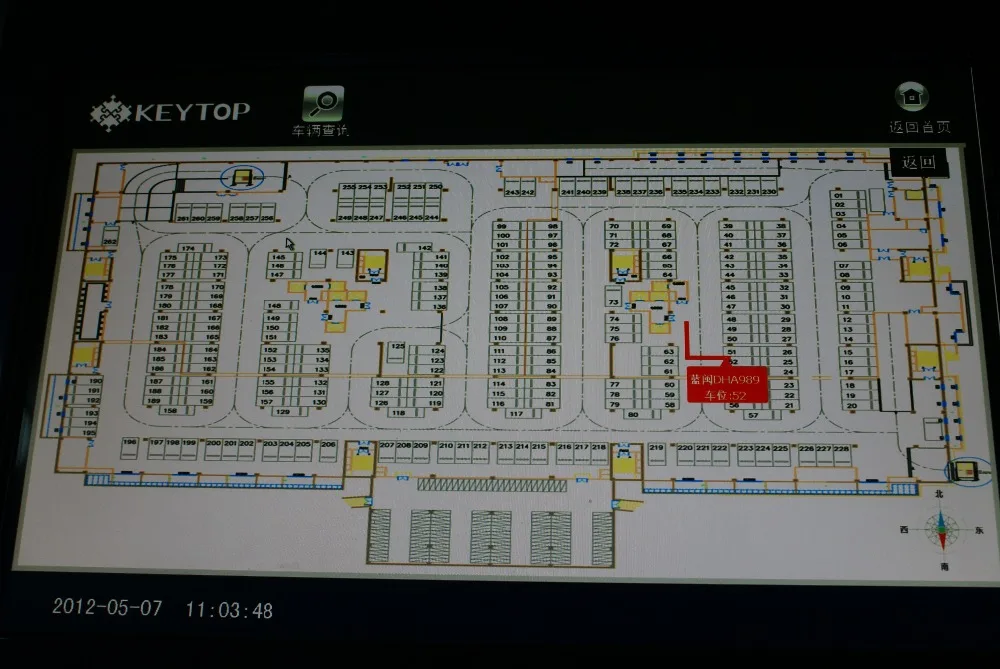

Locate the Vehicles:The car owners can find their own vehicles by inputting the license plate number without card positioning. The system operates like this: input the license plate number to inquiry PC which is installed at the entrances or exits of carparks, the Parking Koisk will pick the data of the server after receiving the commands, then display the map of the parking lot that the owners stands. The map will display the position of the owners and the location of their cars. Besides, it will choose a best route to pick up the cars according the general route situation of the parking lot and display in the map of the parking lot to guide the car owners to pick up the cars.

Parking Guidance: This system can make the car drivers to park conveniently and quickly as well as monitor the parking space to make the management more standard and orderly. It will increase the utilization. The parking detection uses video detecting technology. The Video Detector is installed in the front of each parking space to make a real-time detection of the occupancy and free situation of each parking space. Video processor processes datas to all the detection information and send them to the main controller. The main controller issues the guiding information to LED displays according to the calculation in real time. It can guide the drivers to find certain free lots quickly.

Our Company

KEYTOP Parking dedicated to the development and manufacture of intelligent parking solutions since its establishment in June 2006.We keep improving our capability of research and development,value customers' needs and provide real-time technical assistance to customers at home and abroad.In past years we have accumulated a lot of projects experience and become stronger than ever.So far there are customers from more than 50 countries cooperated with us and we have worked together on more than 3,000 carpark projects in overseas.

Your professional supplier in the business scope of:
1.wired/wireless parking guidance system finding system
3.ticketless parking management system
