garage rs485 ultrasonic sensor/parking detection sensor/ultrasonic detector for parking guidance

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Height (mm):
100
Width (mm):
23
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-T06
Warranty:
1 Years
Voltage rating:
DC 24V
Operational principle:
Ultrasonic
Communication port:
RS485,Wireless,TCP/IP
Communication distance:
1000m
Shell material:
ABS
Installation material:
metal bridge,KBG tube
Detection range:
0.1~3.5m
Detection area:
0.4sq.m(3.5m)
Wiring:
Network cable(CAT-5E)
Max. error:
0.1m
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton,100pcs/ctn,carton size:58*25*46cm
Port
XIamen,China
Lead Time :
within 30 working days against payment

Specifications

1.CE certificate
2.High detecting accuracy
3.Help pilot car park in order
4.Easy installtion,low wire cost



1. Product Details



   1) Application



     As the main part of intelligent car parking guidance system, garage sensor is used to collect the real-time parking space status with the use of ultrasonic detecting distance, and then send the detected information to Zone Control Unit(ZCU) and LED Display Screen.



   2) Technical Parameters

Voltage Rating:DC 24V
Current Rating:10mA
Operational Principle:Ultrasonic
Communication Port:RS 485
Detection Range:0.1-3.5M
Detection Range Setting:Range tolerance 0.5m
Max error:0.05m
Detection Angle:15º
Response Time:30ms
Size:10cm(diameter)x2.3cm(height)
Shell material:ABS



    3) Pictures in Detail

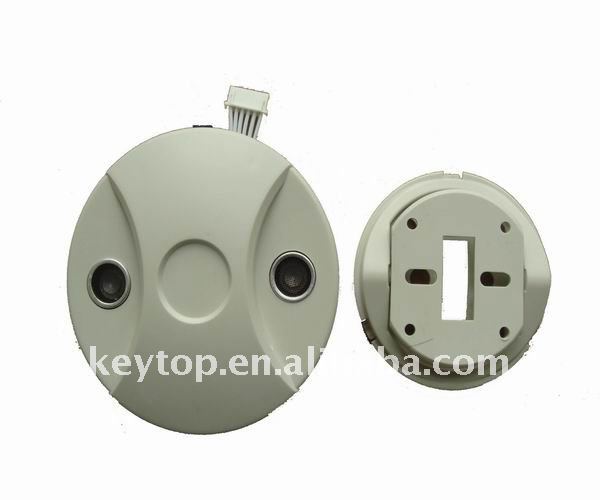

    Frontview

   UD (5).jpg

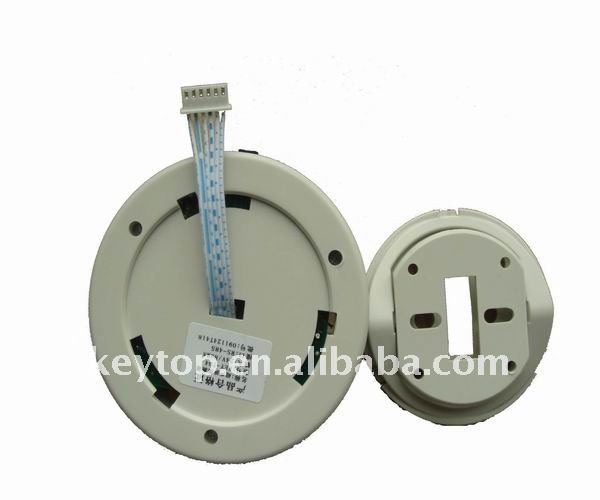

      Backview

  UD (7).jpg



    On-Site

UD (4).jpg
