Keytop ultrasonic sensor(model:KEY-TS06.1) for every single parking space

FOB Reference Price:Get Latest Price
US $1-40 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Height (mm):
100
Width (mm):
23
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-TS06.1
Warranty:
1 Years
Operating voltage:
DC 24V
Operating temperature:
-20~+80℃
Operating current:
10mA
Power:
0.24W
Communication method:
RS485
Communication distance:
≤1000m
Detecting range:
0.1~3.5m
Detection area:
0.4sq.m
Communication rate:
4800bps
Shell material:
ABS
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standar Export Carton,100pcs/carton
Port
Xiamen,China
Lead Time :
within 30 days against payment

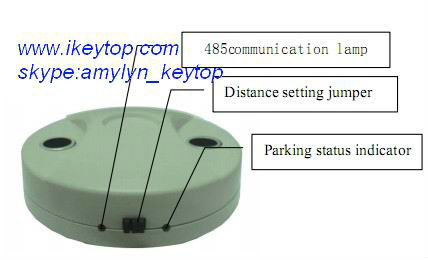

 Main function of ultrasonic detector for parking lots:

Installed at the above of the middle of the parking space, parking ultrasonic detector takes use of its ultrasonic wave to detect the parking space status to see if the parking lot is occupied and sends command to parking indicator to turn RED when occupied, otherwise it will keep GREEN if free.Meanwhile ,it transfer the status message to ZCU for information collection.



UD (4).jpg

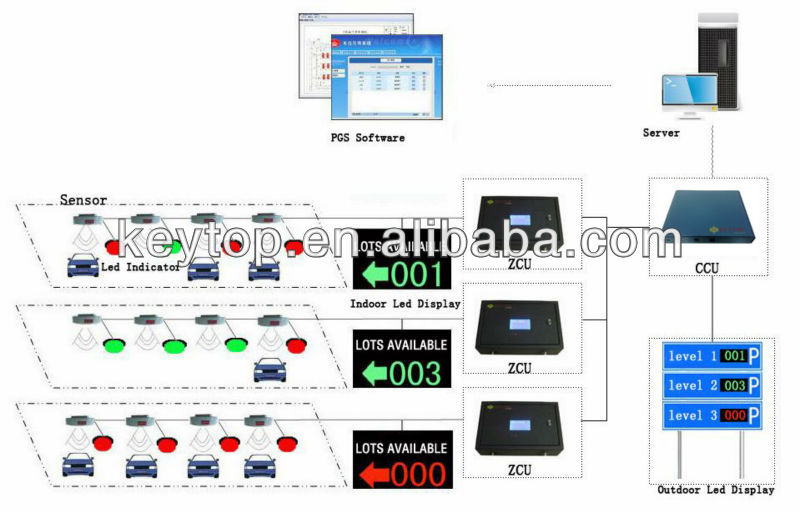

Working principle of Parking Guidance System:



  •  Firstly, ultrasonic detector takes uses of ultrasonic wave to detect the parking space to see if it is occupied and transfer the relative commands to LED indicator which will turn from gree to RED when occupied, or it will turn GREEN.
  • Meanwhile, the UD transmits its status message to ZCU immediately, and ZCU will collect and forward the information to CCU. CCU processes these data and sendsthe relevant commands to ZCU and LED panel.

 RS485 PGS
