KEY-TS06.1 RS485 Communication ultrasonic sensor for parking occupancy

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Guidance System
Height (mm):
100
Width (mm):
23
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-TS06
Warranty:
1 Years
Voltage rating:
DC24V
Current rating:
20mA
Operational principle:
Ultrasonic
Communication port:
RS485/LAN/Wifi
Communication distance:
1000m
Detecting distance:
0.1~3.5m
Detection area:
0.4sq.m
Shell material:
ABS
Response time:
30ms
Weight:
0.12kg/pc
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Carton,100pcs/carton
Port
Xiamen,China
Lead Time :
within 30 days against payment





1. Main Function of Parking Sensor in Parking guidance system:



Install right above every parking space,collect the real-time parking space information  through the principle of ultrasonic measuring the distance. Then transmit feedback of collecting information to led indicator and node controllers through RS-485.









UD (4).jpg








2. How Parking Guidance System Works:



1. Firstly, the UD takes use of its ultrasonic wave to detect the parking space status, whether it is occupied by vehicle. If occupied, UD will send command to the LED indicator controlled by it to show RED, otherwise, the LED indicator turns GREEN when the space is free.



2. Meanwhile, when the parking lot status changes, the UD will immediately sends the changed message to ZCU. The ZCU will receive and transfer the information to CCU.



3. Then CCU will receive and process the information from ZCU. After processing, the data will be transmitted to LED display screen to display the available parking space currently via ZCU, then realizing the guidance to drivers.

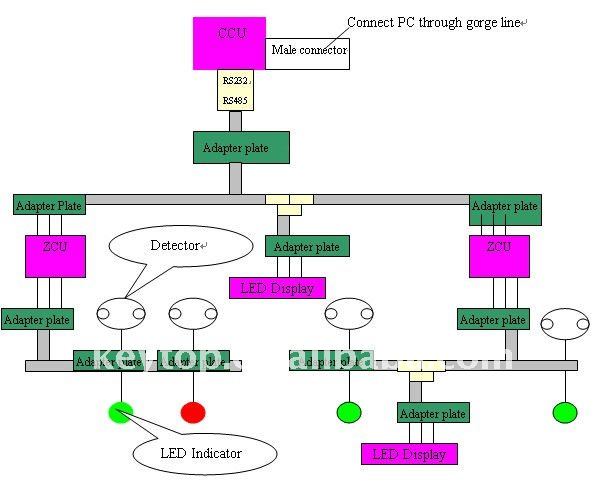

network cable system structure.jpg
