heads up display/led screen/programmable led signboard

FOB Reference Price:Get Latest Price
US $1-100 / Sets | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-S03
Usage:
Indoor
Tube Chip Color:
Full Color
Operating Voltage:
DC 5V
Operating Current:
1.3--1.5A
Power:
6.5--7.5W
Communication Way:
RS485
Communication Speed:
4800bps
Luminance:
300cd/m2
ED Dot Matrix:
16*48cm,24*64cm
Size:
Customized
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Carton,1pc/carton
Port
Xiamen,China
Lead Time :
within 1 month against payment

Specifications

1. Guide driver to the free parking lot by its arrow & number info.
2. Panel size could be tailor-made.
3. Easy observation.





Main Function of LED Display Screen:

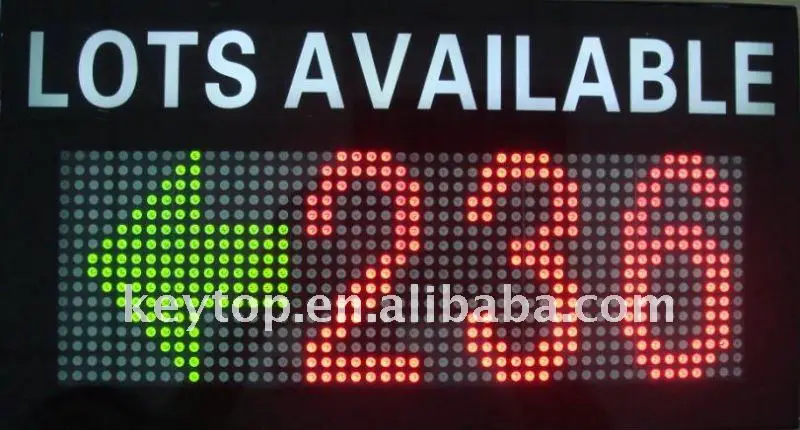

LED indoor display will be installed at the crossings or the entrance to the floor above to show the real time parking information to the drivers. The arrow will show the direction to the drivers and the three digits will tell the drivers how many parking spaces the sector has are available.



Installed place: at the crossings of carport



Components: LED module,driving circuit,control circuit and holder,etc.



Features:

  • 1 arrow+3 digits
  • can be used the whold day
  • inner procedures can be revised anytime according to customers' preferences
  • display other infromation customers want
  • quantity and text content of LED display can be customized



 Indoor LED Display.jpg







How vehicle parking system /parking guidance equipment works:



Firstly, ultrasonic detector takes uses of ultrasonic wave to detect the parking space to see if it is occupied and transfer the relative commands to LED indicator which will turn from gree to RED when occupied, or it will turn GREEN. Meanwhile, the UD transmits its status message to ZCU immediately, and ZCU will collect and forward the information to CCU. CCU processes these data and sendsthe relevant commands to ZCU and LED panel.



network cable system structure.jpg



Changi Airport.jpg
