central control room processor/parking system controller/led display counter

FOB Reference Price:Get Latest Price
US $1-300 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Model Number:
Key-C01
Voltage rating::
DC 5V
Current rating::
100mA
Output port::
com1,com2/com3
Communication frequency::
9600
com2::
To PC
com1::
To ZCU
Control quantity::
60 sub-node(ZCU/Screen)
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Carton,1 pc/ctn
Port
Xiamen,China
Lead Time :
within 30 working days against payment

Specifications

1.process data from zone controller of parking sensors
2.work with led indicators,led signs
3.support rs485,wifi,lan
4.CE



1. Main funtion of Central Controller in Parking Guidance System:



Central controller(CCU), the core of the whole system, is mainly responsible for the collection of parking information and datas processing of the whole carpark. Then send the feedback of the processed result to LED display to show carport information. The general Edition does not have the data storage function, thus there need to connect to the server and install the parking guidance system software.

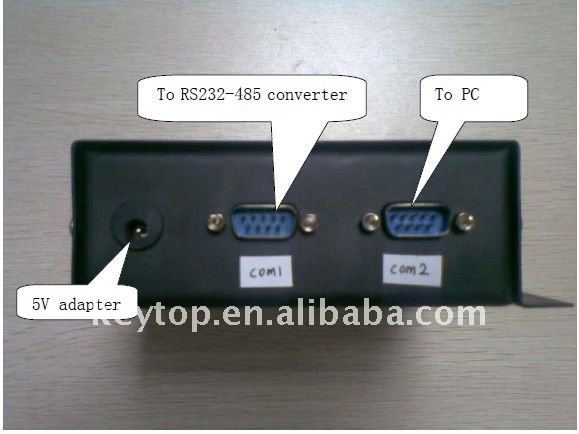

CCU (2).jpg



2. The Working Principle of Parking Guidance System:



Firstly, UD takes use of ultrasonic wave to detect the car space to see if it is occupied by vehicles and transfer relative command to LED Indicator which will turn from green to RED when occupied, or it will keep GREEN; Meanwhile, the UD transmit its status message to ZCU immediately, and ZCU will collect and forward the information to CCU; CCU processes these data and sends the relevant command to ZCU and LED panel.



If you interest in our Products, pls feel free to contact us, we will send more informations to you!

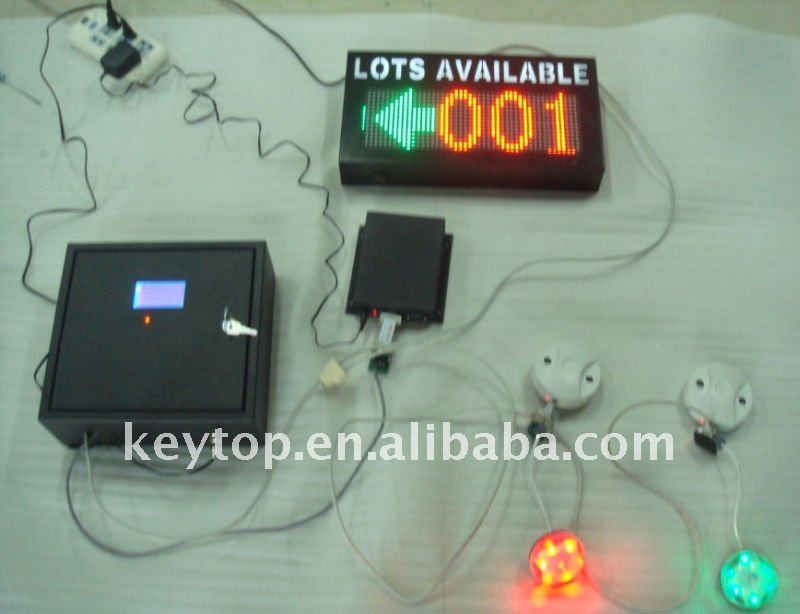

 Pic 2 (sample connection).jpg
