Automatic Car Parking System Based on Ultrasonic Sensor

FOB Reference Price:Get Latest Price
US $1-100 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KEYTOP
Warranty:
12 Months
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Carton
Port
XIAMEN,CHINA
Lead Time :
Within 20 Working days against payment
System Components

CCU: Central Control System

ZCU: Zone Control System

UD: Ultrasonic Detector

LED Indicator: Red/Green LED Indicator

LED screen: Outdoor/Indoor LED screen



The Parking Guiance System detects, counts and indicates vacant spaces in "real time, " then guides motorists to the closest available space. It will reduce maintenance costs, pollution, customer complaints and stress on motorists. It also improves parking lot image, help increase revenue.



How PGS Works



Firstly, UD takes use of ultrasonic wave to detect the car space to see if it is occupied by vehicles and transfer relative command to LED Indicator which will turn from green to RED when occupied, or it will keep GREEN;



Meanwhile, the UD transmit its status message to ZCU immediately, and ZCU will collect and forward the information to CCU; CCU processes these data and sends the relevant command to ZCU and LED panel.

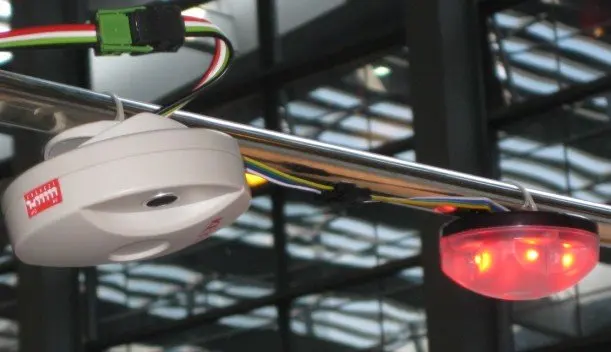

Sensor + Led Indicator




Project Reference

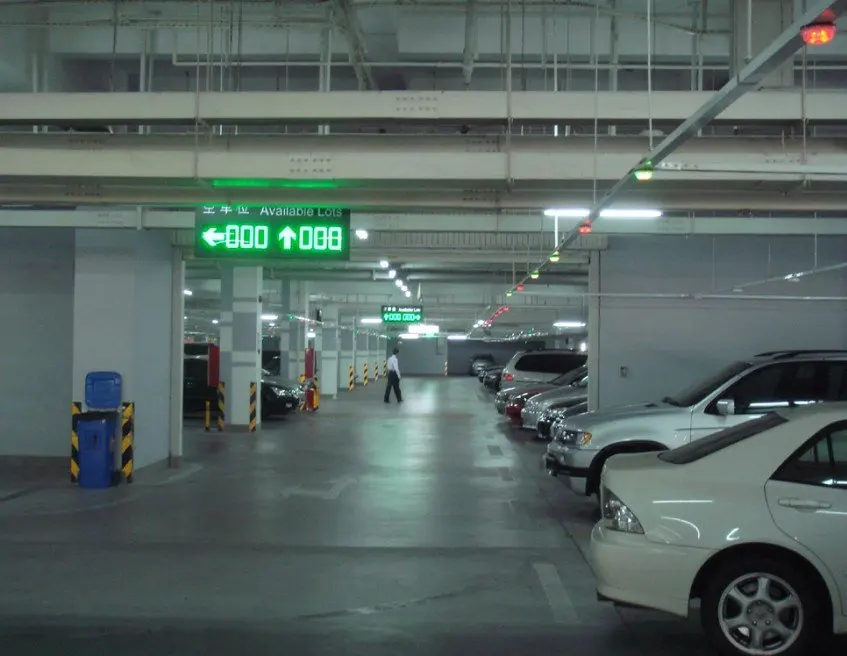

Walmart Parking Lot

SHENZHEN WALMART 3.jpg
