- Type: Carport
- Height (mm): 2
- Width (mm): 12
- Place of Origin: Fujian, China (Mainland)
- Brand Name: keytop
- Model Number: keytop-ts04
- Warranty: 1 Years
- principle: ultrasonic
- temperature: -20--+80C
- current rating: 13mA+17mA(LED indicator)
- voltage rating: DC24V
- detecting arrange: 0.4sq.m
- max error: 0.1m
Packaging & Delivery
|Packaging Details:||Carton Size: 58*25*46cm, 100pcs/carton|
|Delivery Detail:||within one month after the receipt of the customers'payment|
- Establish in 2006.
- 8 years' experience of parking guidance.
- The biggest parking guidance systems supplier in China.
- Our project cases are located in different parts of the world including Europe,America,Asia(49 countries).
- More than 1000 cases .
- Domestic market share of Parking Guidance System is more than 65% .
- Domestic market share of vehicle tracking system is more than 90% .
1 Principle of Wireless Parking Guidance System
Wireless ultrasonic detector detects the status of parking lot,then sends real-time parking lot information to the corresponding wireless detector ZCUs by wireless RF signal.Through WIFI ,wireless ZCU sends the collected parking information to wireless routers connected to CCU.After collecting information of the whole carport,CCU updates parking lot data in time.Wireless routers sends these data to corresponding LED displays by LED display ZCU.In this way,wireless parking guidance system realizes the function of guiding vehicles to empty parking spaces.

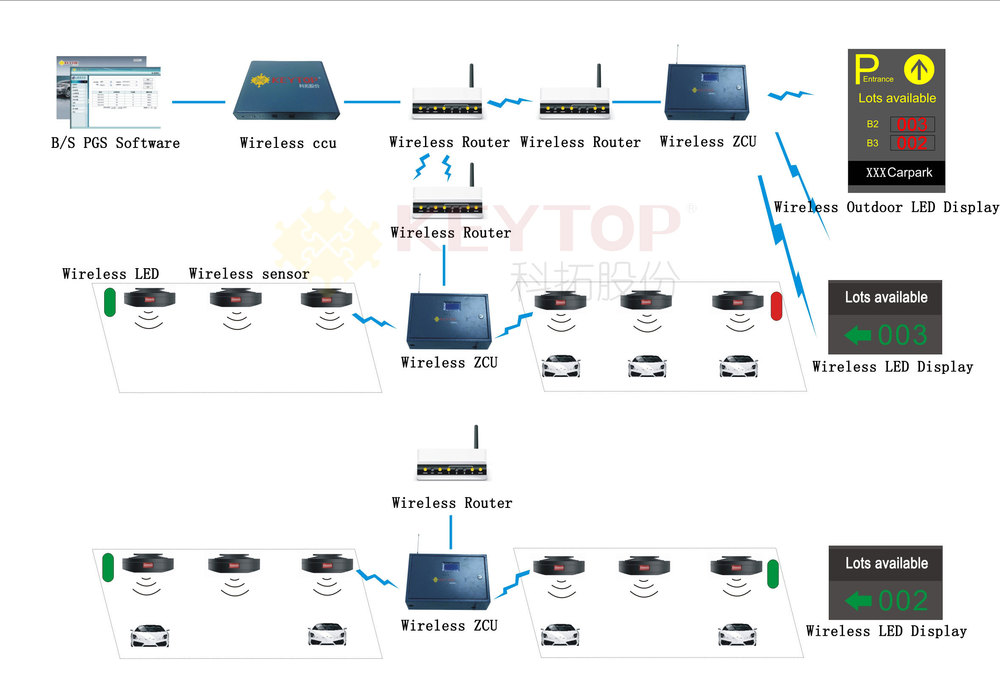

2 Diagram of Wireless Parking Guidance System

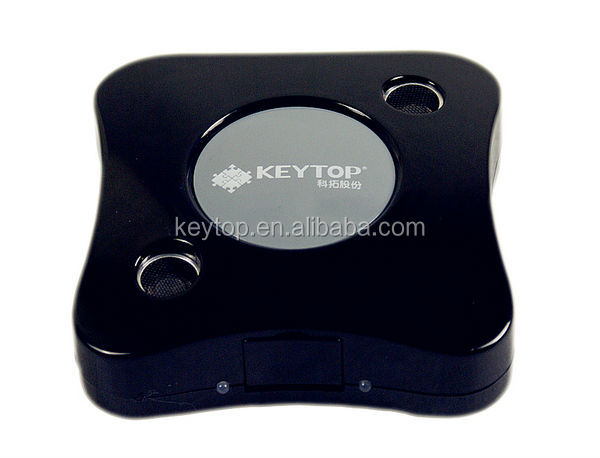

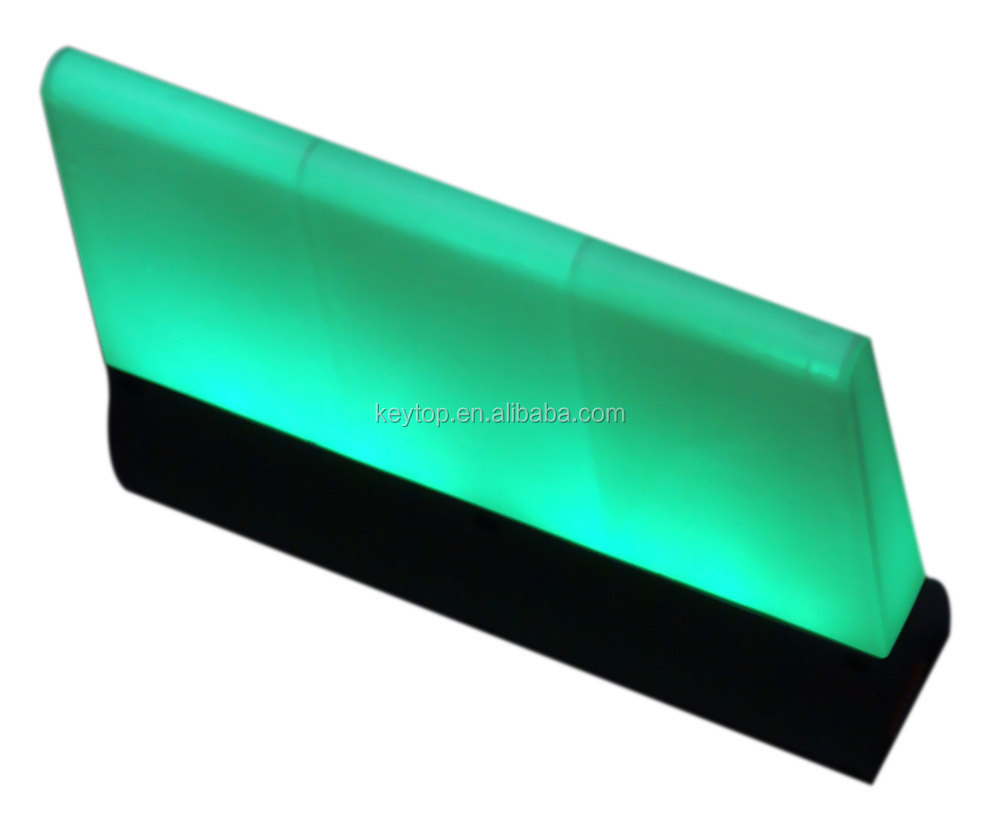

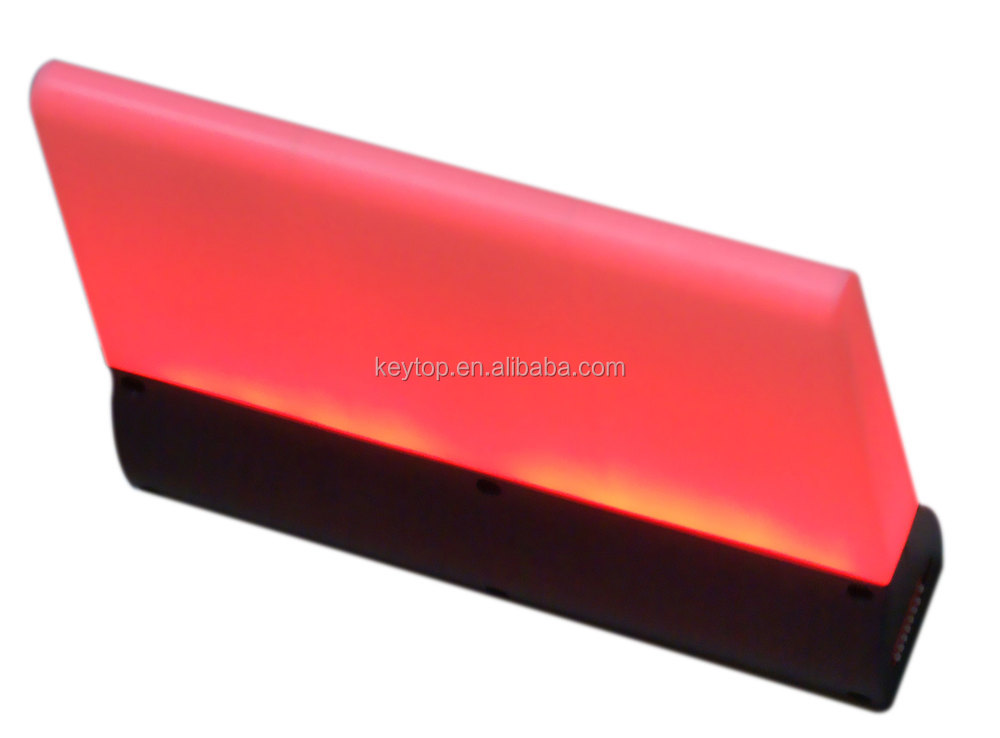

3.Wireless Ultrasonic Detector(indoor) and led indicator
