parking sensor

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Place of Origin:
China (Mainland)
Brand Name:
Keytop
Model Number:
Key-ts04
Principle::
Ultrasonic
Work temperature::
-20---+80℃
Current rating::
13mA+17mA(LED indicator)
Detecting arrange::
0.1---.5m
Max error::
0.1m
Detecting area (3.5m)::
0.4sq.m
Communication::
RS-485
baud velocity::
4800bps, N,8,1
Available distance::
≤1000m
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton Size:58*25*46cm,100pcs/carton
Port
Xiamen
Lead Time :
within one month after the receipt of customers' payment

Specifications

1.parking sensor should be installed in the middle of parking space.
2.transmit information to led indicator
3.parking guidanc

1).Main Functions of parking sensor
. UD(ultrasonic detector) as one of the main part of parking guidance system makes use of ultrasonic detecting the parking space to get message and transfer to ZCU or other equipments by RS485.
. One parking space needs one UD which is installed in the middle of the car park space.




2).How Parking Guidance System Works:
Firstly,parking sensor  takes use of ultrasonic wave to detect the car space to see if it is occupied by vehicles and transfer relative command to LED Indicator which will turn from green to RED when occupied, or it will keep GREEN; meanwhile, the UD transmit its status message to ZCU immediately, and ZCU will collect and forward the information to CCU; CCU processes these data and sends the relevant command to ZCU and LED panel.

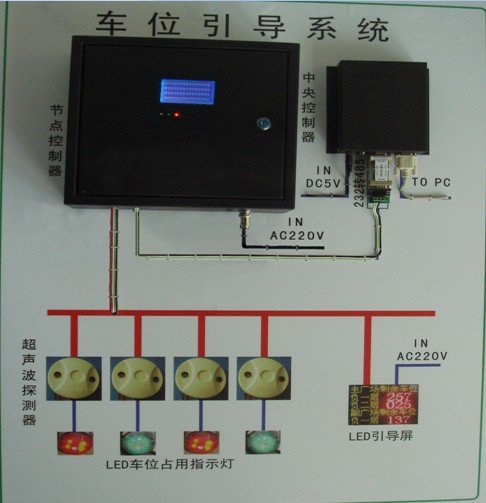

PGS Connection



3).Cases:



Mall of Asia,philipines:3160 lots












1 April,2007              700 cars         Singapore               causeway point(OEM)
2 April,2007             300 cars         Singapore               NorthPoint shopping plaza(OEM)
3 May,2007            1400 cars        Singapore              Jurong Point  Shopping Centre(OEM)
4 July,2007             2000 cars        Xiamen                    Hexiangxi Road
5 August,2007        590 cars         Singapore              Paragon Shopping Center(OEM)
6 Sep,2007             1800 cars       Shenzhen                Headquarter of Wal-mart
7 Sep,2007             600 cars         Singapore               Square 2(OEM)
8 Dec,2007            400 cars          Kunshan                 Parking lots of civil gymnasium
