parking guidance system

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Place of Origin:
Fujian, China (Mainland), Fujian, China (Mainland)
Brand Name:
Keytop, keytop
Model Number:
Key-C01
work temperature::
-20---+80℃
rate voltage::
AC110---220V
frequency::
50---60HZ
baud rate::
RS-232-NODE:9600bps;RS-232-PC:57600bps
com1::
To ZCU
distance::
≤1000m
Voltage:
DC5V
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton:58*25*46cm,6pcs/carton
Port
XiaMen
Lead Time :
within one month after the receipt of the payment

Specifications

1.parking guidance system is to help park quicly
2. parking problems solutions
2.CCU is to process and transfer datas

1.Central Controler of Parking guidance system



1) Main function:
. CCU main function is to inquire about the relevant ZCU data via RS232-NODE by turns and process these data; then send these processed data to PC or other relevant equipments; besides it updates the LED displays data via RS232-NODE.
. One CCU can support 60 ZCU in max..

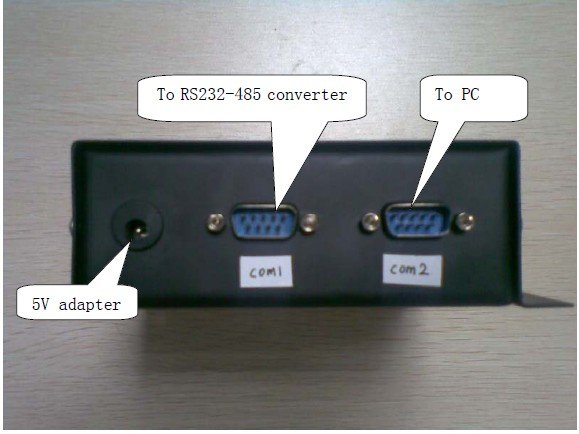

CCU(the side).jpg



2.How Parking Guidance System Works:

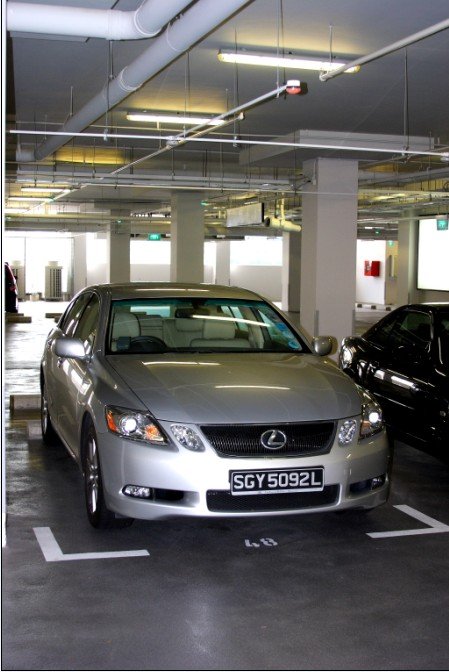

Firstly, UD takes use of ultrasonic wave to detect the car space to see if it is occupied by vehicles and transfer relative command to LED Indicator which will turn from green to RED when occupied, or it will keep GREEN; meanwhile, the UD transmit its status message to ZCU immediately, and ZCU will collect and forward the information to CCU; CCU processes these data and sends the relevant command to ZCU and LED panel.



network cable system structure.jpg







3.Cases



pang dong lai










Poland Krakow Airport(1160ots)






 Singapore Changi Airport 3850lots
