Parking Guidance System+Find your car+CCTV(security)
IP Camera based
three system in one
over 1000 projects
technology support forever
100000 Piece/Pieces per Month
Packaging & Delivery
Three Systems In One
Parking Guidance System+Car Location System(Find your car)+CCTV(security)
1.Advantage of IP Camera Based Car Location System
Choose suitable functions regarding to your current budget and support to upgrade anytime.
Different Grades Functions:
Grade 1. parking guidance---install IP camera (including led lamp) at every parking space to detect vehicle (red: occupied / green:vacant) and show available lots on led displays.
Grade 2. parking guidance+car finding--- add license plate recognition (LPR) software to support car finding function based on grade 1,that is to show the best way to find the parked car on the carpark map of kiosk.
Grade 3. parking guidance+car finding+security---add DVR based on the grade 2 to let the system has security function as CCTV.
2.How to Find Your Car?
3.1 IP Camera
Installed in front of and opposite to every parking bay,IP camera captures real-time images from parking bay,get current parking status,and transmit recognized video and images to server for
processing via network switch.IP camera is integrated with led indicator,when there is car occupied,led indicator
shows red,otherwise shows green.
1 adopt advanced video compression technology,high compression ratio and flexible handling
2 800K pixels, scans CMOS line by line,max.resolution up to 1280*70
3 support D1 video coding(640*480) and capturing
4 support JPEG capturing,max.size of image up to 1280*720
5 support recognize parking status and continuous capturingsupport red/green signal display

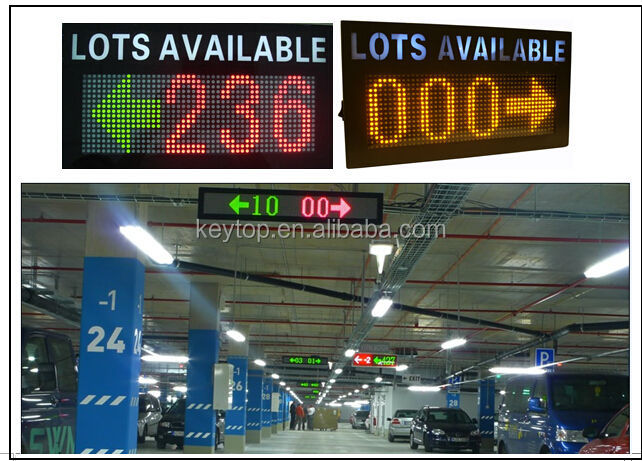

3.2 LED Display
It is suggested to install led display at key crossings of inner carport,quantity and display content of led display are
customized according to clients’ needs.Led display is composed of indoor high illuminated led module,drive circuit,
control circuit,casing,etc.It receives statistics of parking bays from server,shows current available quantity of parking
bays in certain zones in form of digits and words.It can be used for 24 hours,inner procedures can be revised
according to users’ requirements,and display other information.
Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of
themselves and their parked cars.If not showed on the map,drivers can proceed with fast inquiry to select by
parking time,to display photos of all vehicles parked during the selected parking time.
