Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Warranty: 1 Years
  • Main Device:: IP Camera
  • Function:: parking guidance sysem+find your car+CCTV
  • Advantage:: three systems in one
  • Brand:: KEYTOP
  • References:: over 1000 projects

Packaging & Delivery

Packaging Details 50pcs/carton
Delivery Time one month

Specifications

Three Systems In One
Parking Guidance System+Find your car+CCTV(security)

1.Advantage of IP Camera Based Parking And Car Finding Guidance System





Choose suitable functions regarding to your current budget and support to upgrade anytime.



Different Grades Functions:




Grade 1.  parking guidance---install IP camera (including led lamp) at every parking space to detect  vehicle (red: occupied / green:vacant) and show available lots on led displays.



Grade 2.  parking guidance+car finding--- add license plate recognition  (LPR) software to support car finding function based on grade 1,that is to show the best way to find the parked car on the carpark map of kiosk.



Grade 3parking guidance+car finding+security---add DVR based on the grade 2 to let the system has security function as CCTV.

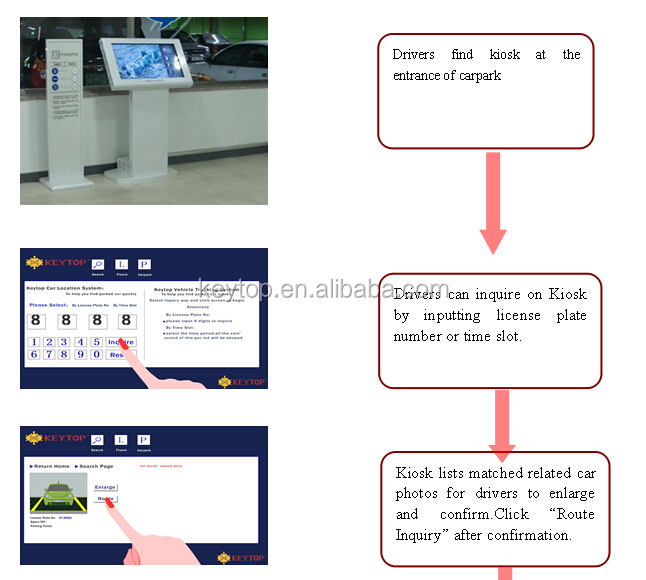

2.How to Find Your Car?







3.Main Devices

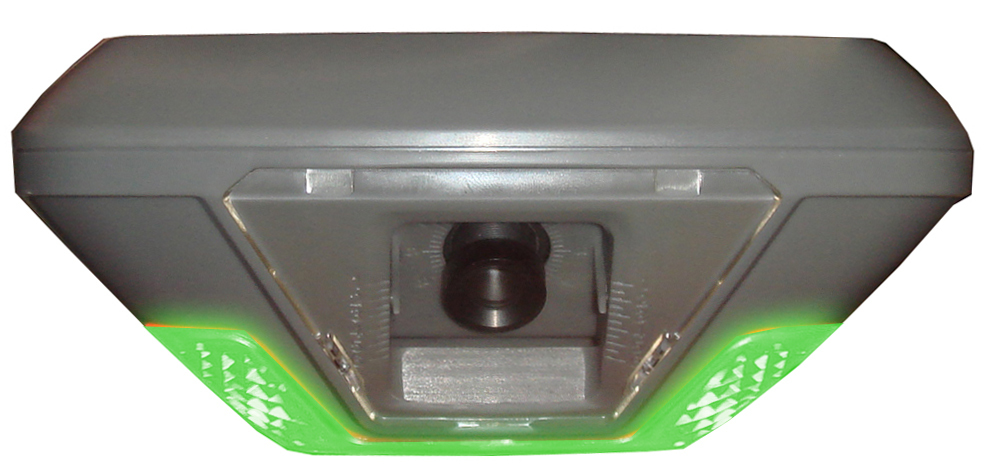

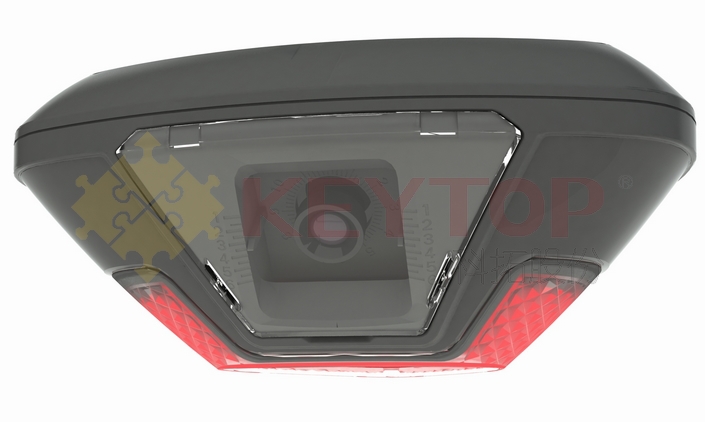

3.1 IP Camera



  Installed in front of and opposite to every parking bay,IP camera captures real-time images from parking bay,get current parking status,and transmit recognized video and images to server for

processing via network switch.IP camera is integrated with led indicator,when there is car occupied,led indicator

 shows red,otherwise shows green.



Function

adopt advanced video compression technology,high compression ratio and flexible handling

800K pixels, scans CMOS line by line,max.resolution up to 1280*70

support D1 video coding(640*480) and capturing

support JPEG capturing,max.size of image up to 1280*720

support recognize parking status and continuous capturing support red/green signal display







                           CCTV On-site



3.2  LED Display





   It is suggested to install led display at key crossings of inner carport,quantity and display content of led display are

customized according to clients’ needs.Led display is composed of indoor high illuminated led module,drive circuit,

control circuit,casing,etc.It receives statistics of parking bays from server,shows current available quantity of parking

bays in certain zones in form of digits and words.It can be used for 24 hours,inner procedures can be revised

 according to users’ requirements,and display other information.













3.3 Kiosk







Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of

 themselves and their parked cars.If not showed on the map,drivers can proceed with fast inquiry to select by

parking time,to display photos of all vehicles parked during the selected parking time.
