Vehicle tracking system is based on automatic license plate recognition,installed with video camera to take photos of vehicle and show real-time parking status of every parking space.It has 3 functions to bring convenience for drivers,cut labor costs and increase parking revenues for car park owners.

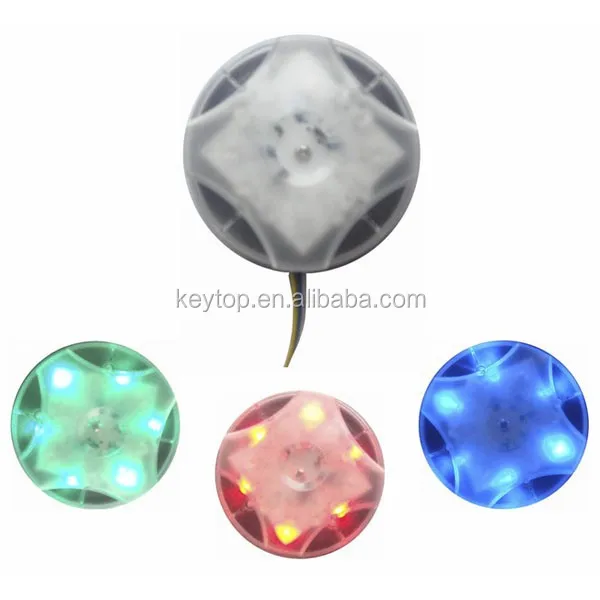

Every parking space is installed with video detector to take photos and show real-time parking status.Green for vacancy,red for occupancy.Support to upgrade RGB colors.Guide drivers to vacant parking spaces by LED screen.
Locate Your Car
With built-in LPR technology,the system indicates the exact location your car is parked by inputting car plate number.Also show the best shortest route to pick up cars.
Find the nearest kiosk and enter into “car finding” application.
Input your car plate number and click “ok” to inquire.Our parking kiosk supports multiple ways to search the location of cars,such as by Full Car Plate No.
by Parking Time

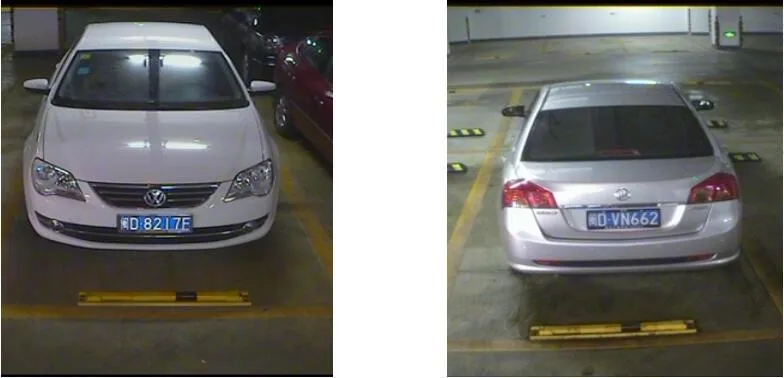

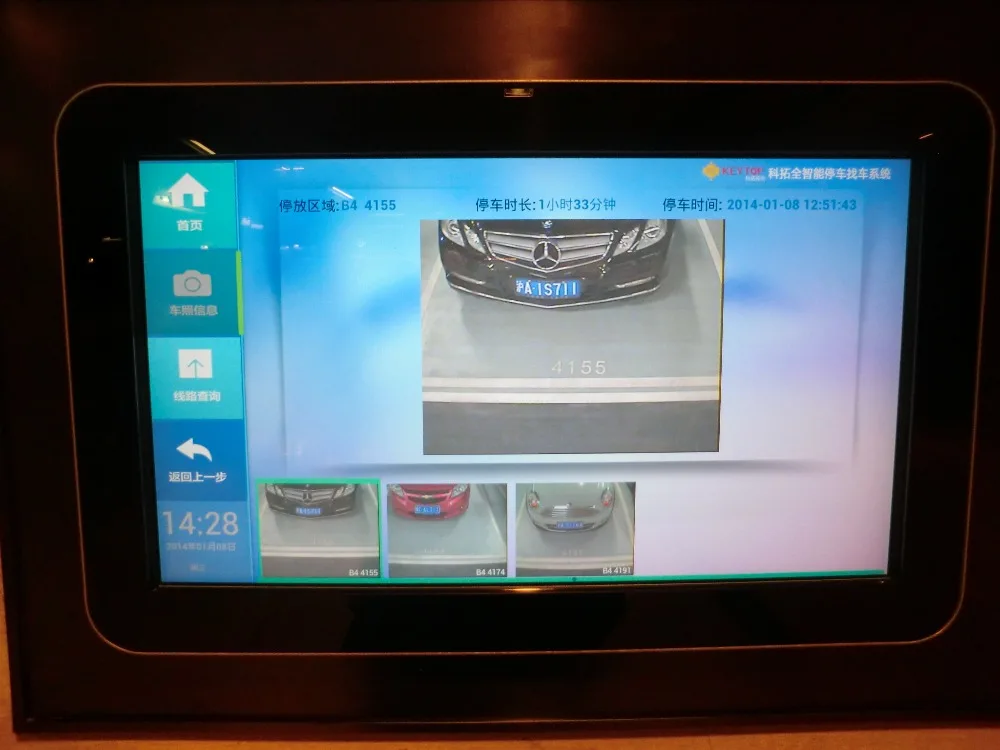

System will list out photos and car plate numbers similar to yours for you to choose.

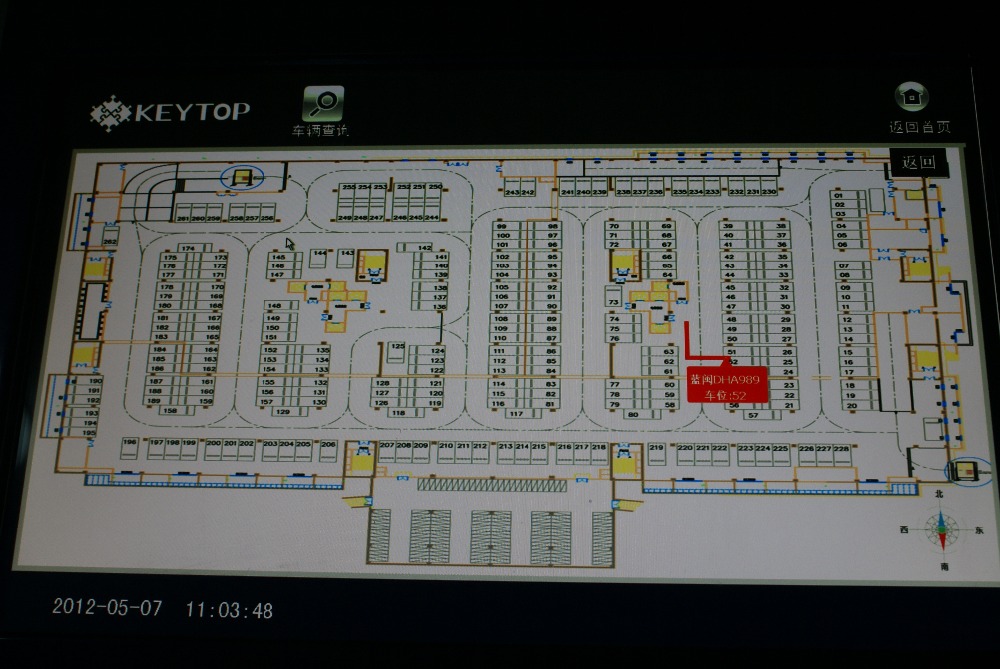

After you find your car and click on “ok”.System will show the best shortest route for you to pick up car.
Car Safety Monitoring
Parking manager can monitor the real-time video or replay the video of each parking space according to their needs.This function can be widely used in collecting evidence of scratched car,vehicle theft etc.
Video Detector(1 camera 1 space)

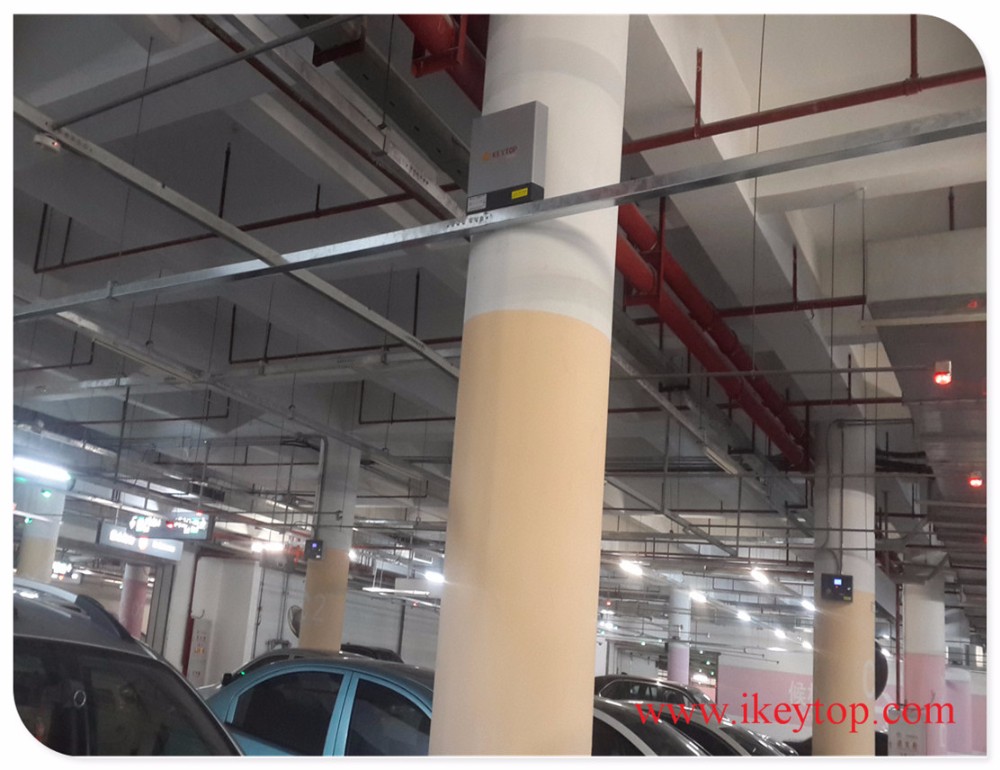

Installed in front of and opposite to every parking space to capture real-time images from each parking space,show real-time parking status and guide drivers to the nearest available parking spaces.

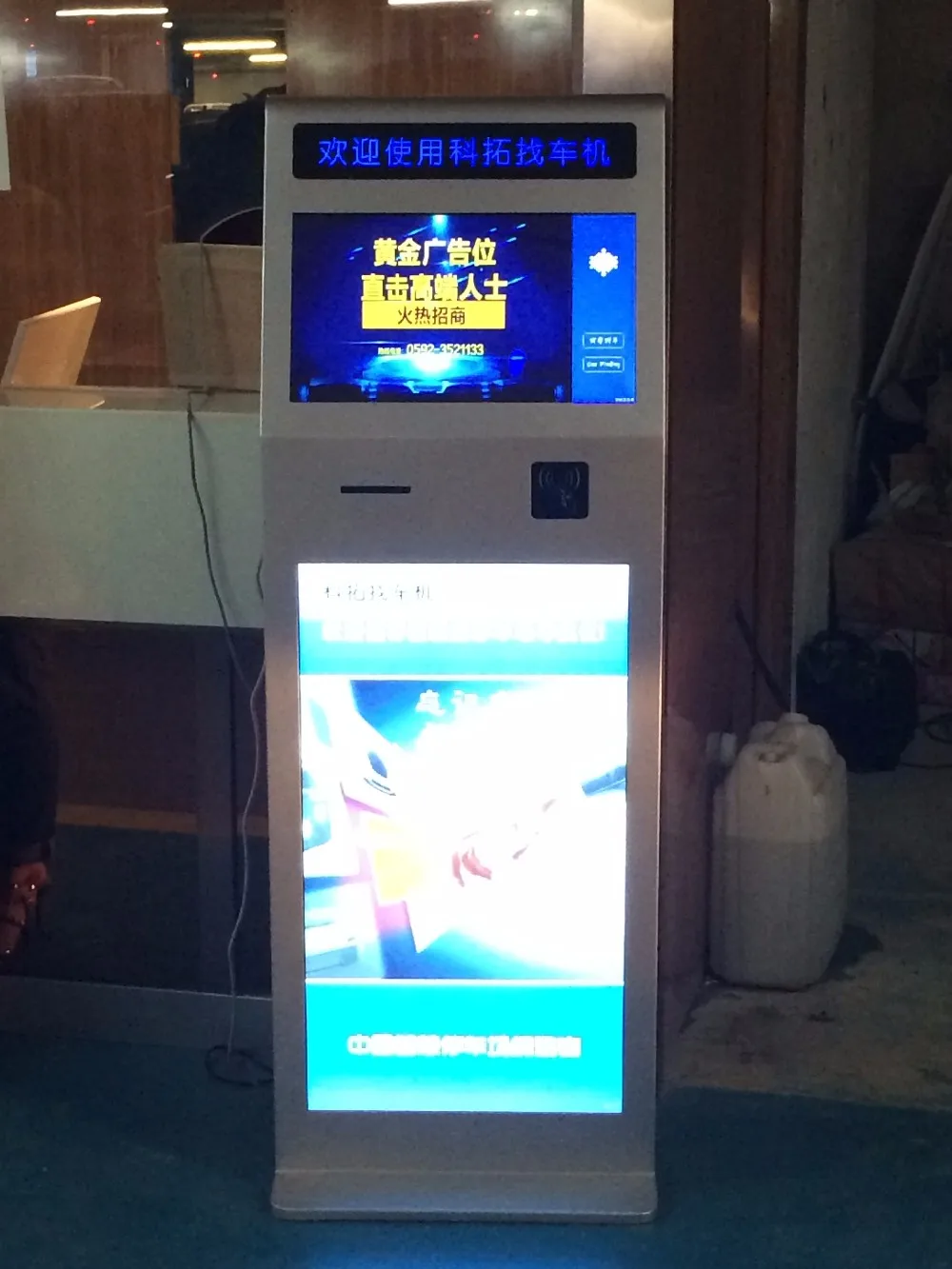

Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of themselves and their parked cars.With big LCD advertising screens for car park owners to make advertisement and increase parking revenues.

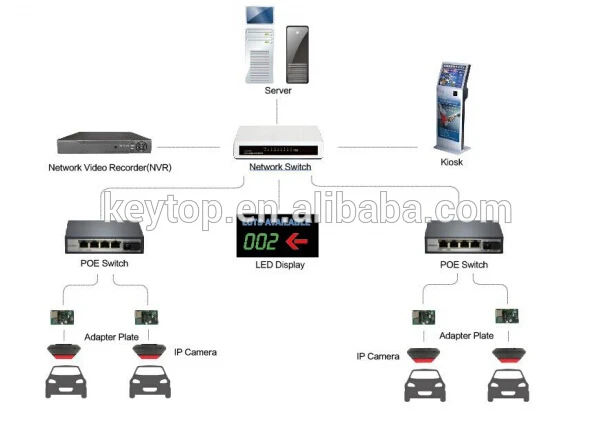

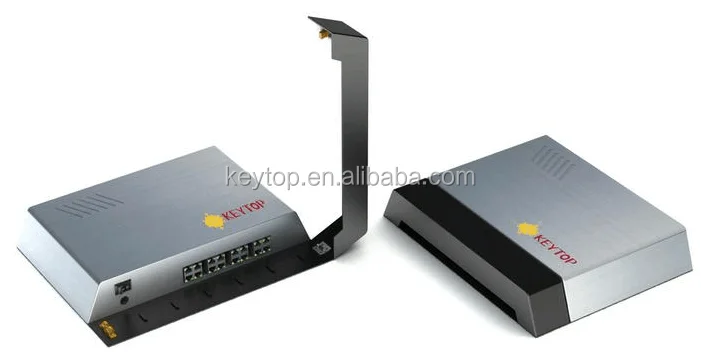

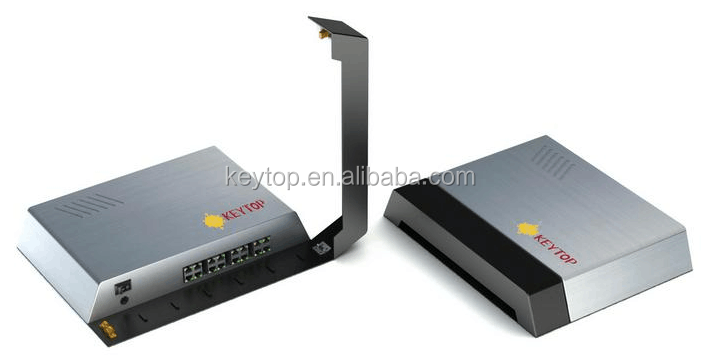

Composed of switch modular,power modular and switch board.Network controller is to sum up all parking data from video detectors and transmit them to server,then transfer commands from server to LED display.It has 12 connection ports for video detectors and 4 RJ45 network port.

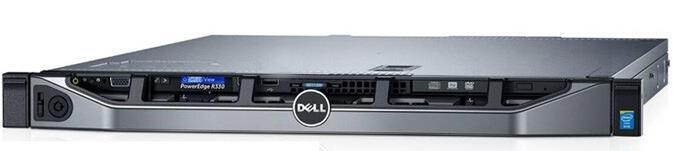

(1)store images data of parking bays,get parked positions of vehicles,release information on kiosk for drivers to inquire cars locations (2)Backstage inquires parking occupation in the database and makes statistics of data each led display needs to update,controls display of led guidance screen (3)with vehicle tracking system software,convenient for administrator to manage

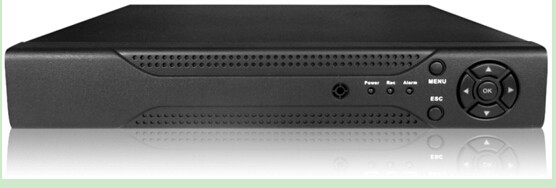

Network Video Recorder
Equip network video recorder and HDD on the server to record videos and events happened around the parking spaces,provide security and surveillance for the whole car park.

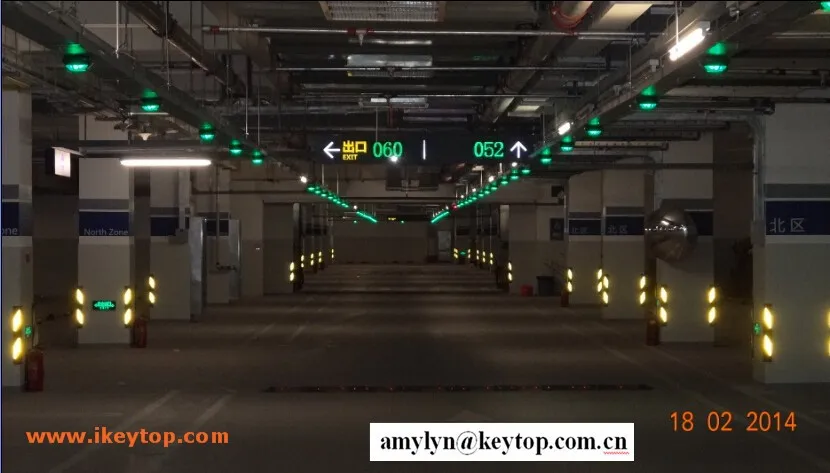

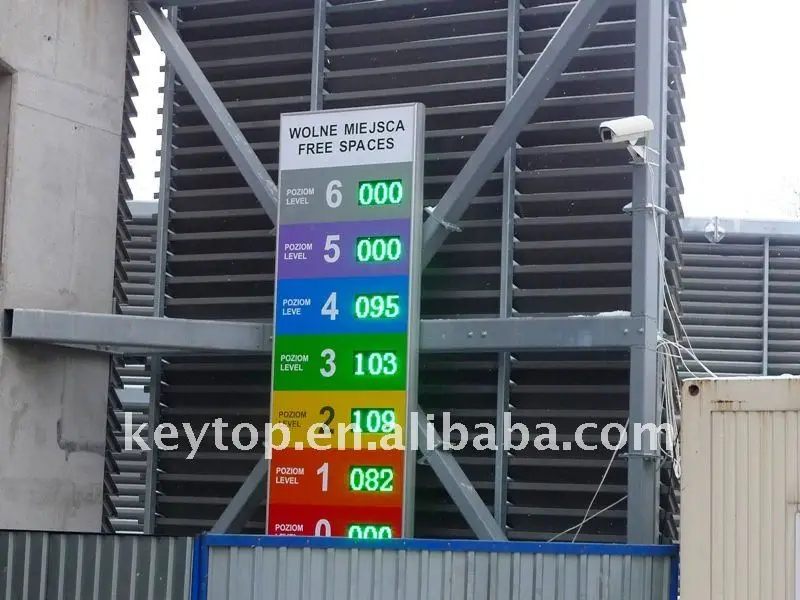

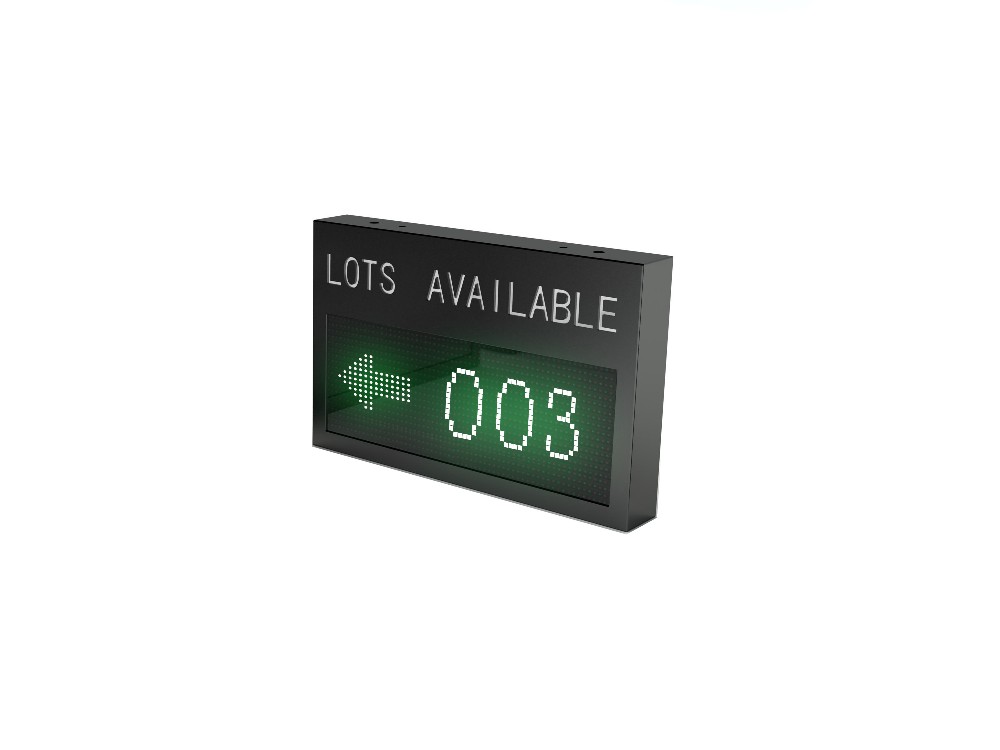

LED display is installed at the main entrance or crossings of car park to show real-time available parking spaces of related floors or the whole car park.

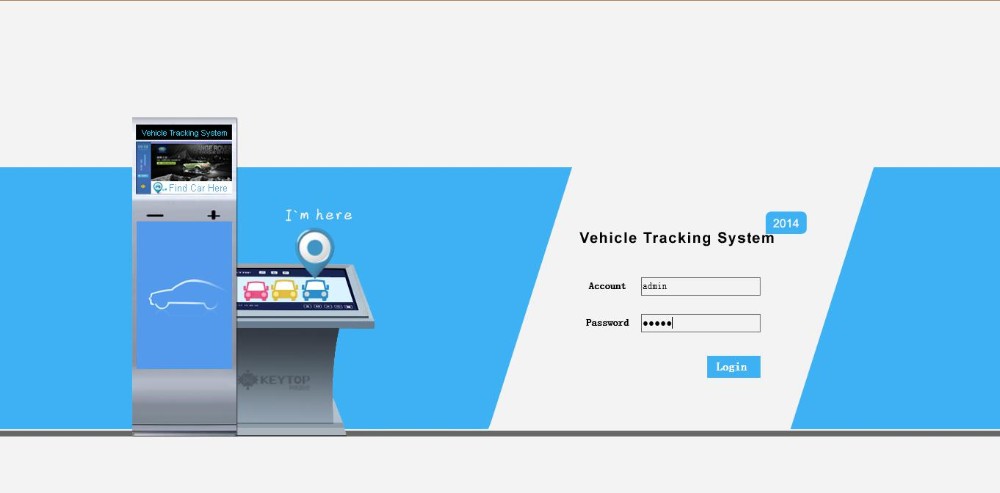

Include backstage software,LPR software and SQL database.It is mainly for configurations for LED display,kiosk and maps.Also provides various reports for car park owners to monitor the usage of the whole car park. Based on C++ and ASP Use MYSQL large database,with good stability and security Run on Windows operation system stably
Chongqing Viaduct Parking Building(Mar.2017)
The 1st viaduct public parking building in Chongqing city is total 37,600 squre meters,225m length,70m width and 22m height.It’s the 1st project that Chongqing municipal goverment taking advantages of room under viaduct.This car park has total 4 floors 1008 parking spaces,installed with Keytop vehicle tracking system and ticketless parking management system,it effectively relieves the parking pressure around this area and realizes unmanned car park management.
Xiamen Gaoqi International Airport T3 Terminal(Aug.2015)
Xiamen Gaoqi International Airport is located in Huli District,Xiamen City.As the civil 4E grade international airport,it is an important regional airlines hub along the southeast coast.T3 terminal has been put into use since Nov.1996,total area of terminal is 23.780,000 square meters,with flights to 109 cities,open 182 routes in and out boundary.There are total 1075 parking spaces at T3 terminal,in 2012 they were installed with Keytop ultrasonic parking guidance system.In 2015,these parking spaces are upgraded to the vehicle tracking system to provide fast guidance and car finding services.It shortens the time for customers and improves the image of the airport.
China Central Television Building(Sep.2013)
As the biggest public cultural facilities in China,central television building is an important part of 2008 Beijing Olympic Games.The construction work of intelligent parking has drawn a lot of attentions of people in all social circles.With advanced technical concepts and rich implementation experience in national car park applications,Keytop finally won this tender from fierce comptitions.All the 1353 parking spaces inside this car park are installed with Keytop vehicle tracking system to guide drivers to vacant parking spaces quickly and help them locate the cars by inputting car plate numbers.
KEYTOP Parking Inc.is dedicated to the development and manufacture of intelligent parking solutions since its establishment in June 2006.We keep improving our capability of research and development,value customers' needs and provide real-time technical assistance to customers at home and abroad.In past years we have accumulated a lot of projects experience and become stronger than ever.So far there are customers from more than 50 countries cooperated with us and we have worked together on more than 3,000 carpark projects in overseas.
Your professional supplier in the business scope of: 1.wired/wireless parking guidance system 2.car finding system 3.ticketless parking management system

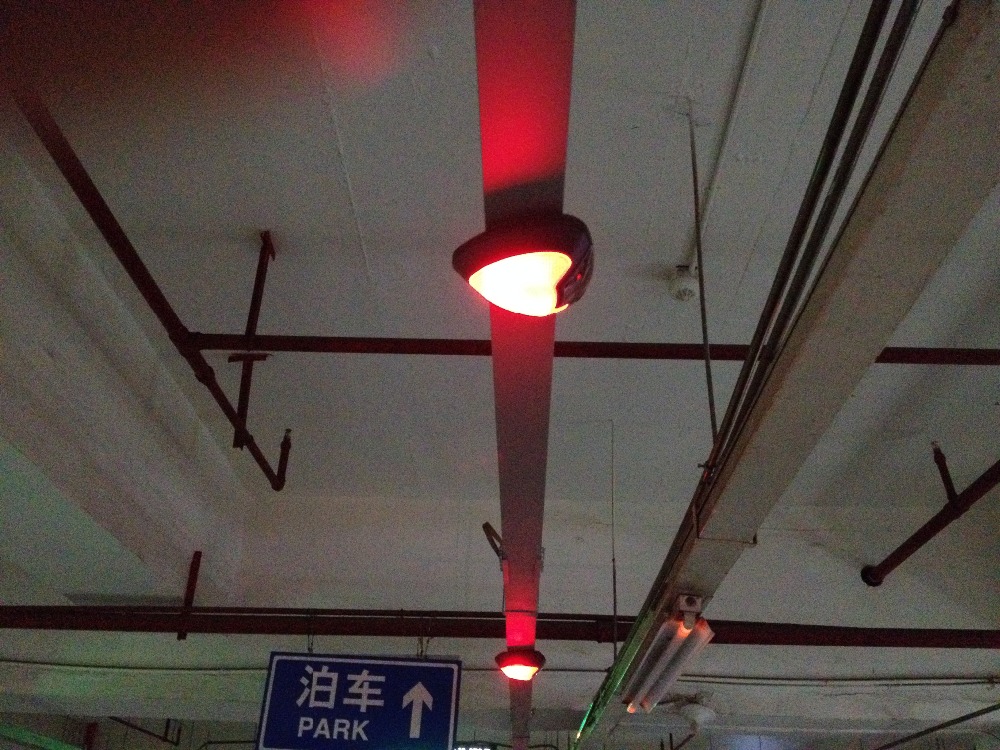

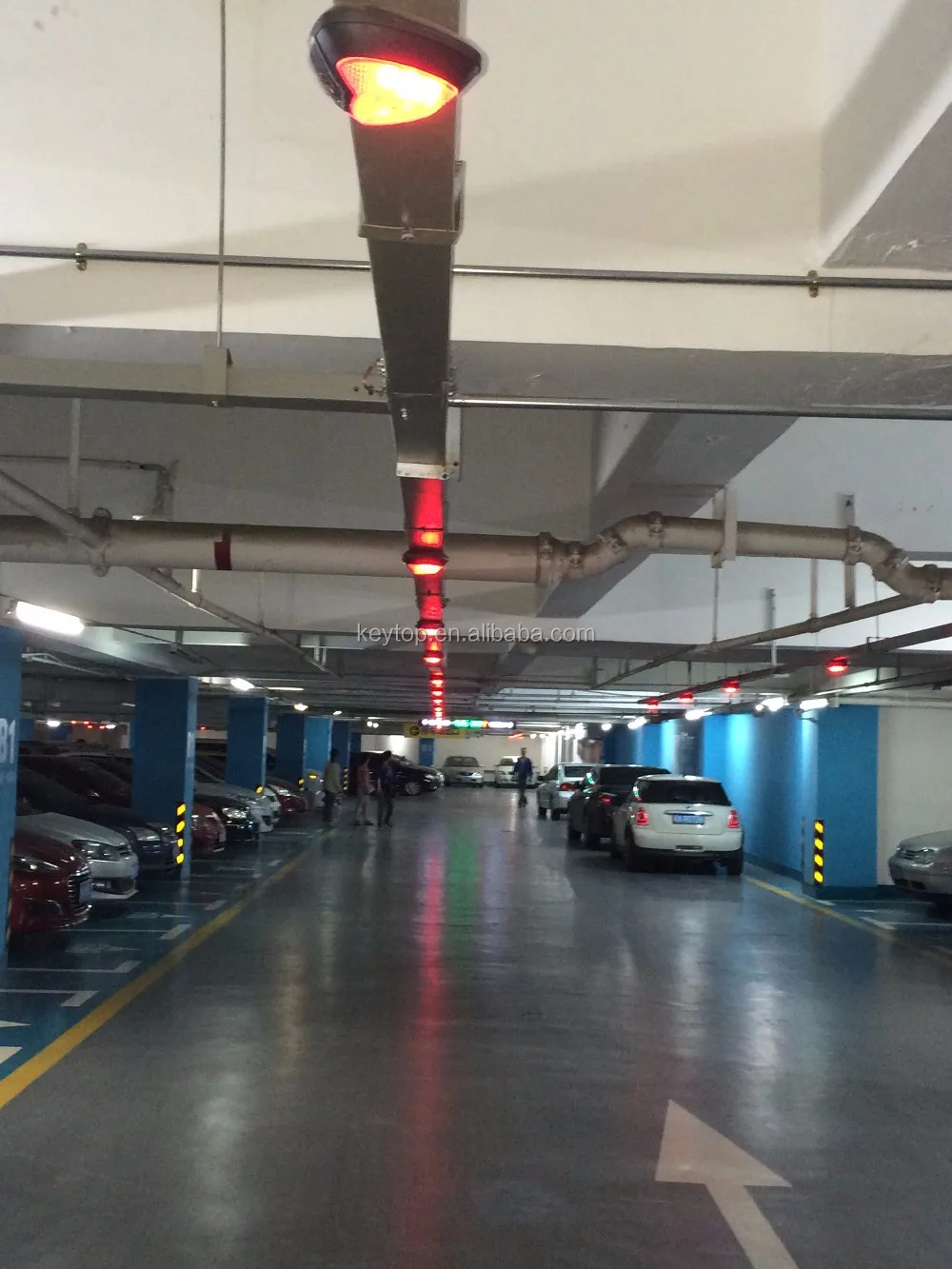

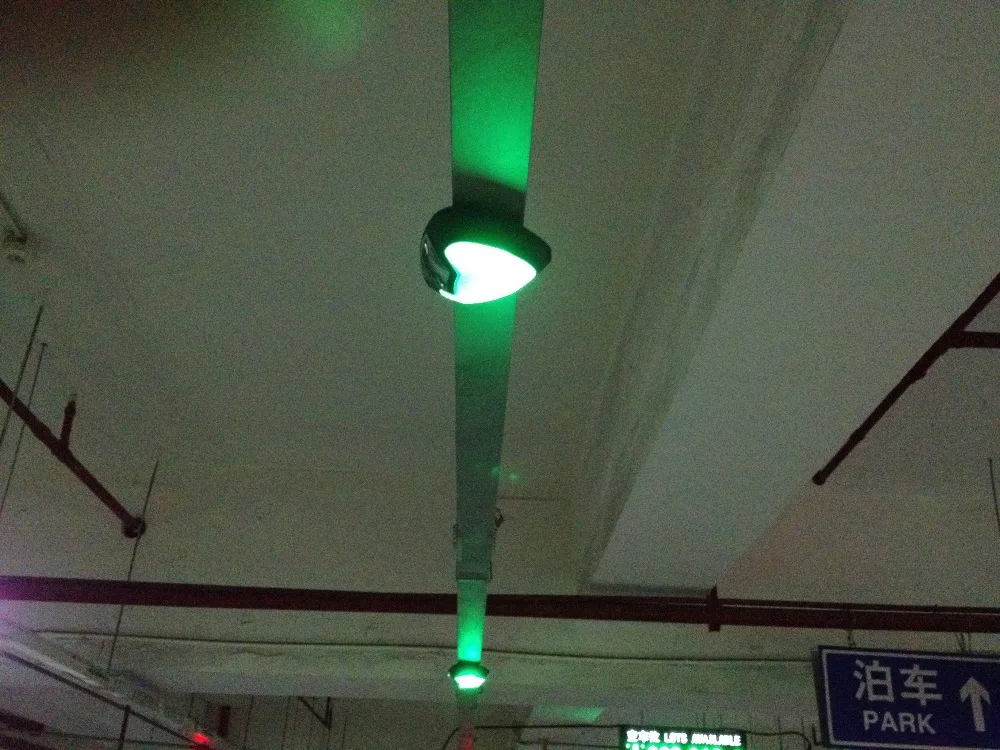

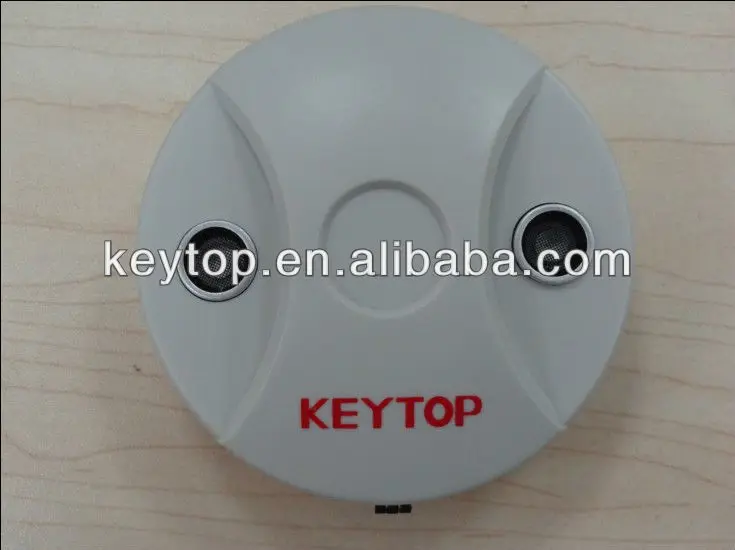

Parking guidance system is an intelligent parking solution developed by KEYTOP.Ultrasonic detector is installed above every parking space to detect real-time parking status and send signal to LED indicator for showing green for vacancy,red for occupancy.Inside the car park,there are installed with indoor LED display to tell drivers which direction to go.
Ticketless Parking Management System

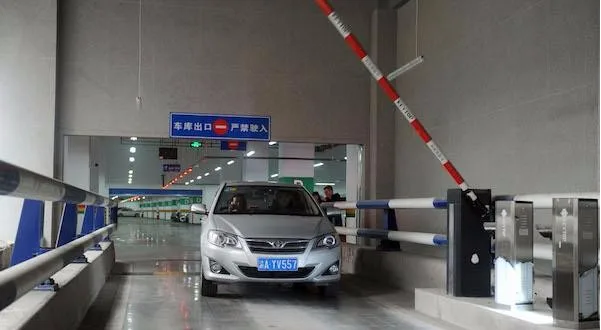

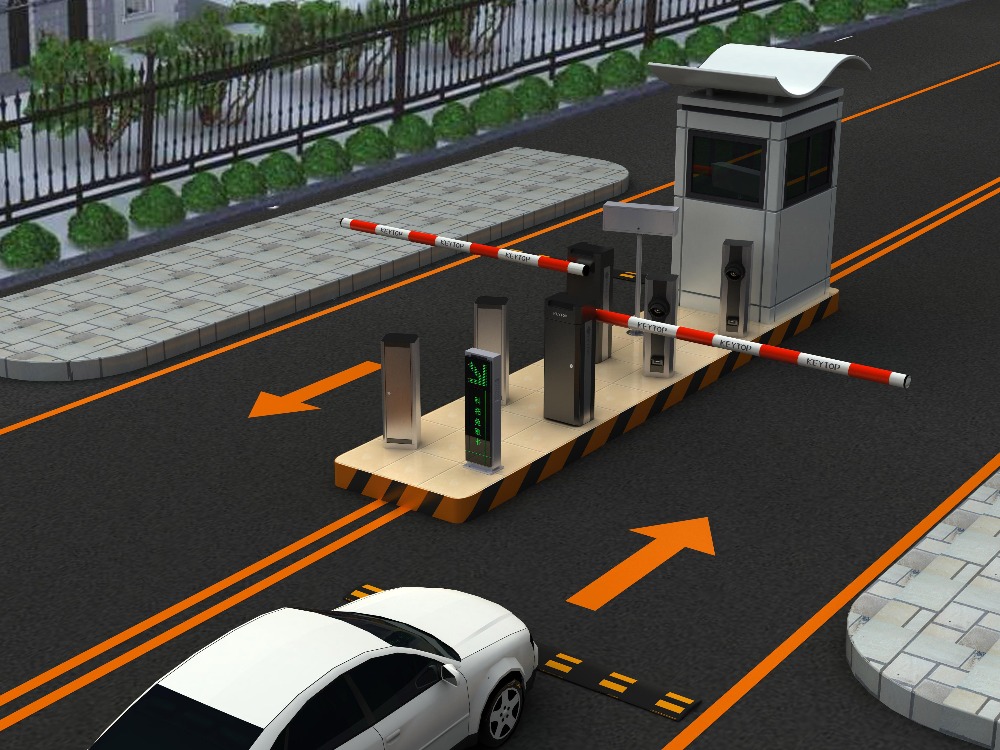

Ticketless parking management system is based on the automatic license plate recognition,installed with ANPR camera at the entrance and exit land to take photos of car plate number.It can allow/deny vehicles to enter/leave by parking barrier.Using this solution,drivers don't need to take ticket/card,saves them much time and more safety during rainny days.For car park owners,it can cut much labor costs and increase parking profits.This solution supports multiple payment ways and drivers can prepay parking fees before they return to vehicles.
