Quick Details

  • Type: Parking Guidance System
  • Height (mm): 360
  • Width (mm): 120
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Model Number: KEY-Ts06
  • Warranty: 3 Years
  • Communication port:: RS 485/TCP IP
  • Ultrasonic Sensor: new ultrasonic sensor with built in led indicator
  • LED Indicator: 5000 mcd LED Indicator , Red/Green/Blue/Pink Color For choice
  • LED Guide Display: High brightness LED Panel with one direction arrow and three Digit
  • Parking management software: Multi language,web based software,support remote monitor,
  • Parking Guidance Controller: Support off line Checking
  • Working temperature: -40℃ To +80℃

Packaging & Delivery

Packaging Details CARTON
Delivery Time Within 30 days
Company Information

As one of the biggest intelligent parking guidance supplier around the world, till now,  we have help more than 1000 car park in over 40 counties set up their indoor parking guidance system

No matter you own a large car park, many car parks or just a small Car park with a few parking spaces we can offer you a Parking Guidance Solution that most suitable for you.. .

We are the best manufacturer that you can trust in China. we also accept OEM/ODEM order and package.

Product Description

Main Advantage of our Parking Guidance Solution

1. RS 485 and TCP/IP Communication based, can meet differnce size of car park .

2. Forward mounitng ultrasonic  sensor with built in Led indicator , lower down your installation cost .

3. On-line based software, the car park operator can monitor/ manage their car park everywhere that connect to the interet ,

4.  Multilanguage support ( English, French, Portuguese (Brazilian), Spanish , Italian etc ).

 System Diagram


How it works ?

The Intelligent Parking Guidance system guides the driver from the roads around the facility, through the process of selecting which parking area to use, to the floor with available parking, then to the aisle with the available parking, and finally to the empty parking bay.

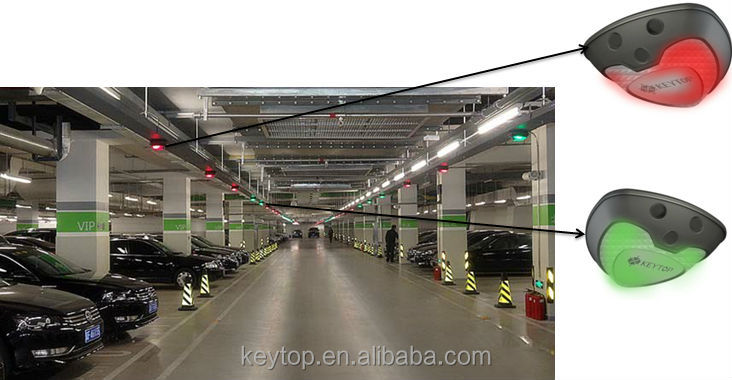

Ultrasonic Sensor and LED Indicator: By Using the Ultrasonic Senosr and LED Indicator, driver can easily indicated to an open bay

Green – Vacant     Red Occupied      Blue: Reserved for disabled

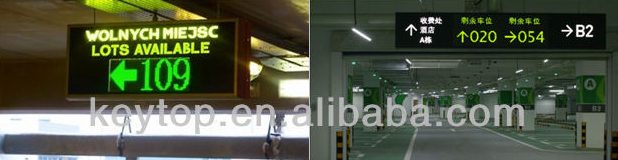

LED Indoor Guidance Display: Inform the driver on every point of decision, the availability of parking spaces by displaying a green arrow and number of vacant parking spaces

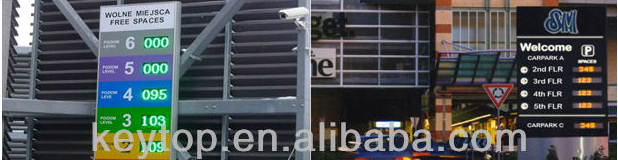

LED Outdoor Entrance Display: Outdoor led display show real-time data at every decision point , Indicate to which level drivers should proceed

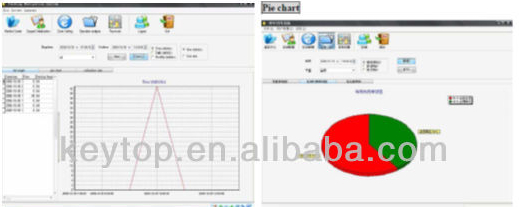

Management software: From the visually chart , the car park operator can easily know the occupied time, Utilization rate , average permanence by zone/ hours etc   The Management software can be customized accordingly to customer’s requirement .

How it can help u ?

Airports and Large Corporations

From Airport to hospital to  world financial center, KEYTOP Parking Guidance system will turns existing car park into a world class facility, help driver Reduced time looking for parking, and reduced frustration.

Shopping Malls

“The less the customer spends time in finding an available parking space, the more time they will spend in shopping ” , KEYTOP  Parking Guidance system will bring customer to shopping mall faster and Increase their shopping satisfaction

Public parking facility

The Parking system lets facilities managers who manage parking earn more from their existing investment while at the same time helping customers find a parking space fast and with much less stress

Reference installations

3160 Parking Space


Mall of Asia

3000 Parking Space


Mega Bangna

2100 Parking Space


Taipei municipal CarPark

2000 Parking Space

Saudi Arabia

King Fahad Medical City

2000 Parking Space


Shonan Car Park

1800 Parking Space


Headquarter of Wal-mart

1976 Parking Space


Pacific Place

1160 Parking Space


Krakow Airport

1006 Parking Space


Mubarak Hospital

Our Services

Technical Support:  Have professional technical support team offering 24/7 services,  help design a Parking Guidance System accordingly to the car park layout, preparing materials for tender, offering tech support during installation and after installation.

Guaranty:3 Years guaranty after installed

OEM/ODM Services: If project have more than 100 parking space, can silk print your logo on all hadware ,ODM is welcome as well .

Payments: T/T ,western union

Lead time : Within 20 working days

Contact us today for a chat and see what we could do for you.
