Quick Details

  • Type: Car Location System
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KEYTOP
  • Model Number: KEY-V02.1
  • Warranty: 1 Years
  • Product Name: Video Detector
  • Application: Vehicle Detection
  • Working Voltage: DC12V
  • Working Temperature: -20℃~+60℃
  • Camera Lens: 2.8mm/3.6mm/4.2mm
  • Communication Way: TCP/IP
  • Pixels: 1,300,000
  • Image Resolution: 1280*960
  • Power: 2.4W

Packaging & Delivery

Packaging Details standard export carton
Delivery Time within 30 working days against payment
Product Description

KEYTOP Video Detector based Car Finder System

Keytop Car Finder System combines parking guidance and car searching functions together,not only guides drivers to find certain free parking space quickly,but also guides them to find their parked cars.

Parking Guidance

Every parking space is installed with 2 in 1 video detector to capture images of car plates number.It shows green when vacant,red when occupied.


Real-time LED display guides drivers to vacant parking spaces quickly with correct direction.

Find your Car

Server is installed with ANPR software to recognize car plate number.


Drivers input car plates number on the parking kiosk.It shows the best route to get the car.

Advantages of Car Finder System

1.The car owners can find the car location quickly by inputting the license plate number.

2.The car owners don’t need to swipe cards to locate the position after parking.

3.Solve the searching problems; improve the whole image of the parking lots.

4.Display the free parking situation in entrances of carpark dynamically and at real time.

5.Guide the entering vehicles to the free parking region and parking space at the shortest time and with the best route quickly.

6.Reduce the vehicle wandering time, reduce the gas emission to save the energy and protect the environment.

How to Find Car

Step 1

Find a parking kiosk inside the carpark,usually this parking kiosk is installed besides the elevator.

Step 2

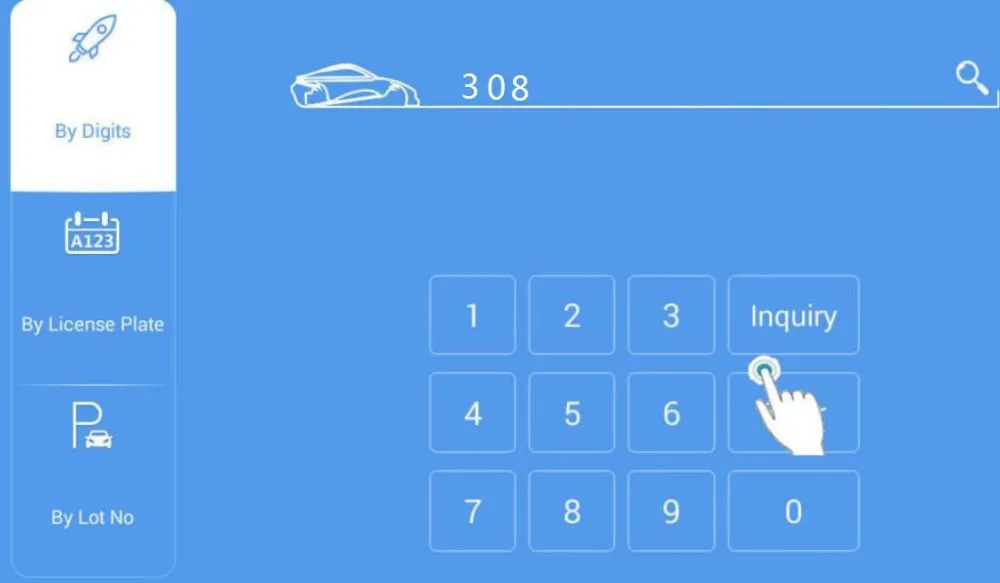

Input car plate number on the kiosk and click "inquiry" for searching.
Our car finding system support multiple ways to search the car:
1.by digits
2.by full car plates number include english letter and numnbers
3.by parking time
4.by parking lot No.

Step 3

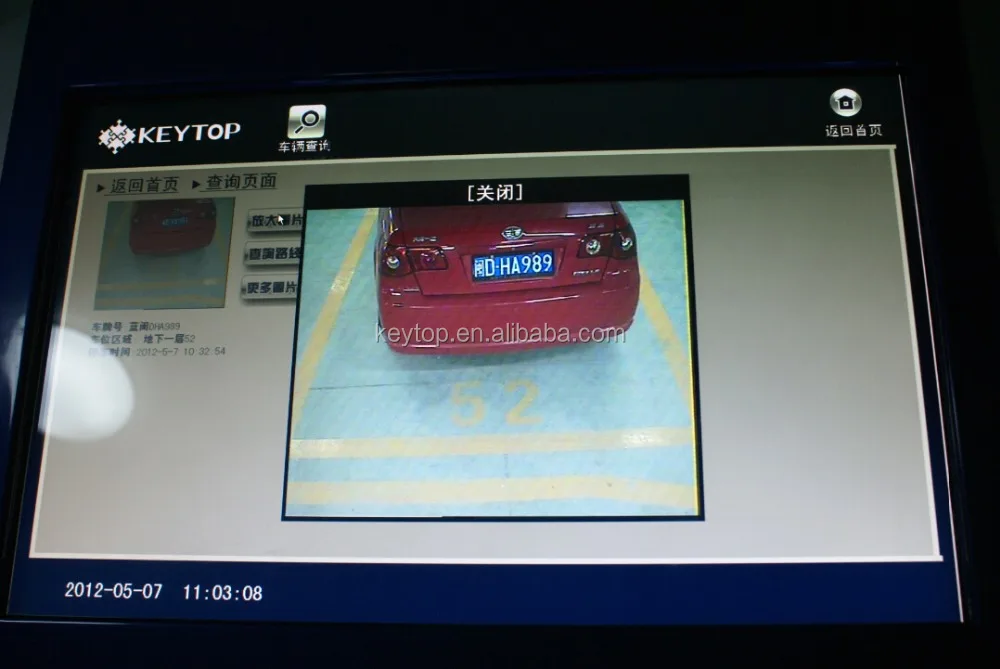

After inputting car plates number,the system will show photos of vehicles for our selection and checking.If it's our car plates number,we just need to click on the photo.

Our system can record praking location,parking time and parking duration,etc.

Step 4

Kiosk shows the location of drivers and his vehicle,we can go for our cars by the shortest route.

Main Devices

Video Detector

Installed in front of and opposite to every parking bay,video detector captures real-time images from parking bay,get current parking status,and transmit recognized video and images to server for processing via network switch.Video detector is integrated with led indicator,when there is car occupied,led indicator shows red,otherwise shows green.


Functions:
a.adopt advanced video compression technology,high compression ratio and flexible handling
b.1,300,000 pixels, scans CMOS line by line,max.resolution up to 1280*960
c.support D1 video coding(640*480) and capturing
d.support JPEG capturing,max.size of image up to 1280*960
e.support recognize parking status and continuous capturing support red/green signal display

Server

Functions:
a.store images data of parking bays,get parked positions of vehicles,release information on kiosk for drivers to inquire cars locations

b.Backstage inquires parking occupation in the database and makes statistics of data each led display needs to update,controls display of led guidance screen

c.with vehicle tracking system software,convenient for administrator to manage

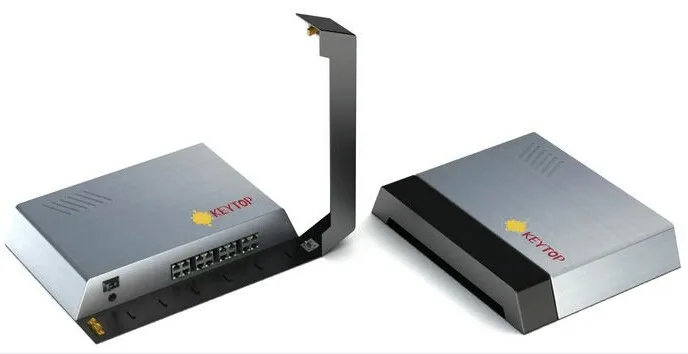

Network Controller

Network controller is composed by exchange modules,power module and switch board.It collects and summarize data from IP cameras,passes to server and transmits LED command released by server.


With 12 RJ45 network ports,can maximum connect with 12 Video Detectors and give power to them directly.

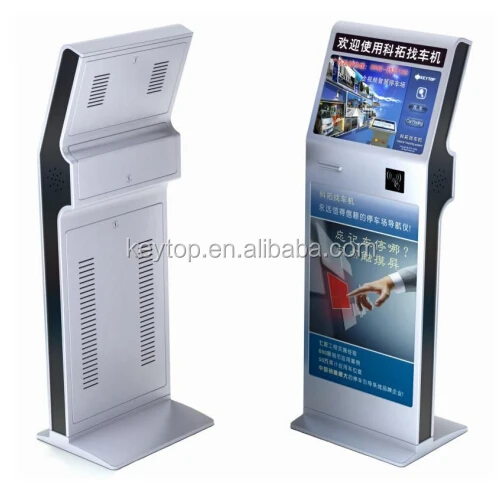

Kiosk

Installed at the entrance of carport,input car license plate number and a map will appear to tell drivers positions of themselves and their parked cars.If not showed on the map,drivers can proceed with fast inquiry to select by parking time,to display photos of all vehicles parked during the selected parking time.

Other Products

Ticketless Parking Management System

With ANPR camera installed at the entrance and exit of car park to have vehicle control on the basis of car plate number.Not ticket or card is required,saves time for drivers and reduce managerial costs for car park operators.


Inside the car park there is autopay terminal machine for drivers to pay parking fees,support cash,credit card,etc.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
