Ultrasonic parking guidance system

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Carport
Place of Origin:
Fujian, China (Mainland)
Brand Name:
keytop
Model Number:
Key-WC02
Access voltage:
AC 110~220V
Power dissipation:
2W
Working temperature:
-20-+80
Communication way:
RJ45 port(TCP/IP)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
100pc/carton
Port
xiamen
Lead Time :
within one month after the receipt of your payment

Specifications

1.Ultrasonic parking guidance system
2.Detector and lamp as one unit
3.Ultrasonic detector by RJ45 adapter
4.Good quality

1.Principle:



 The main function of magnetic collector is to inquire parking information of magnetic detector via programs and transmit the inquired datas to CCU by RS-485.Then CCU transmit to LED display by RS485 finally.





2.Magnetic Collector Instructions:



Set address by DIP switch (refer to DIP switch setting manual) before use and connect wire regarding to wiring diagram before power on.





3.Main Components:

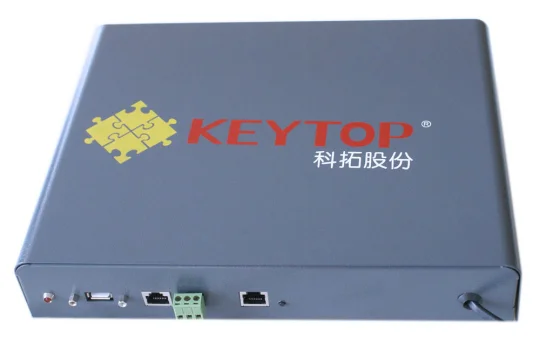

1.Central Control Unit(CCU)

2.Magnetic Collector

3.Magnetic Detector

4.LED display
